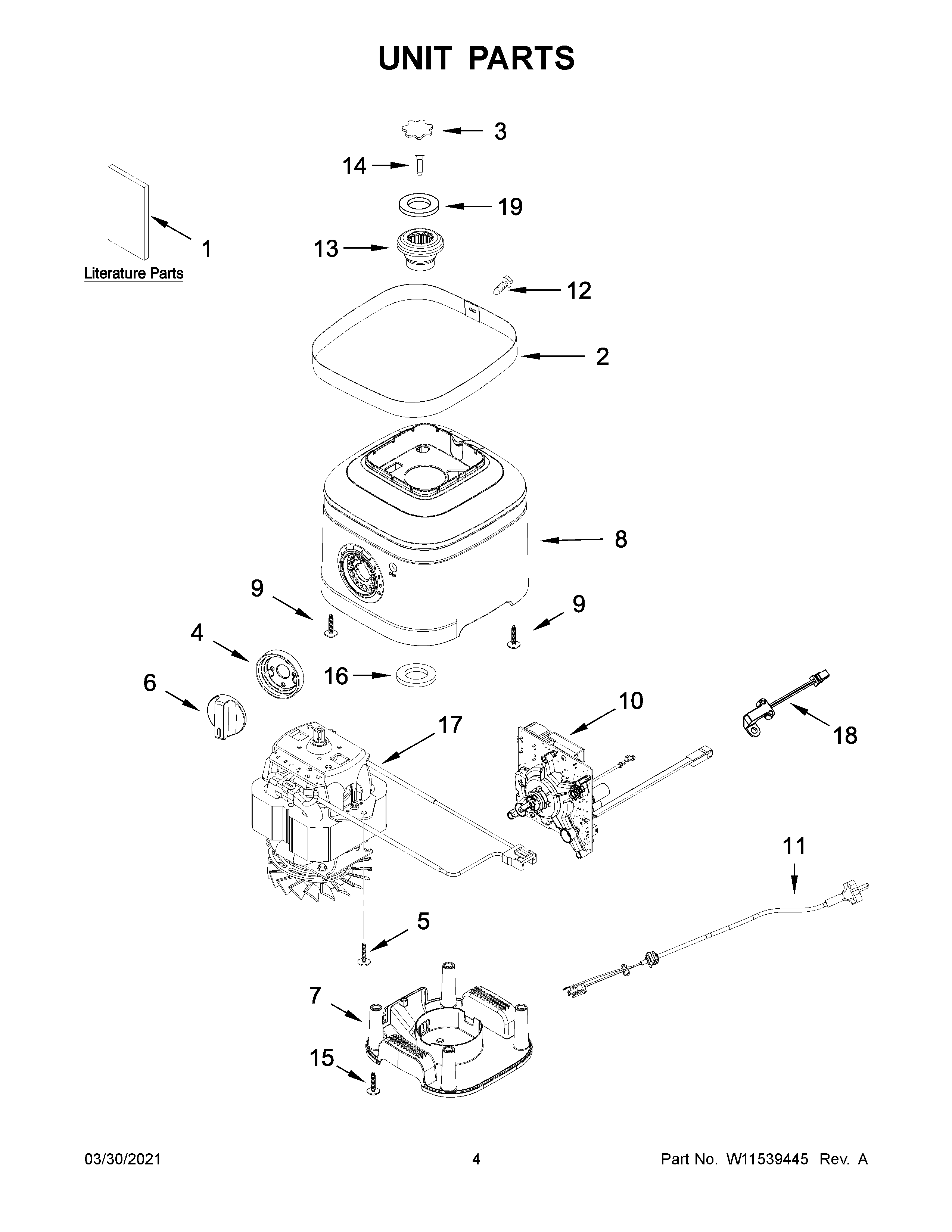

5KSB1340CVB0 03 – UNIT PARTS

5KSB1340CVB0 03 – UNIT PARTS

Written by

in

5KSB1340CVB0 03 – UNIT PARTS

Products

Position	Product
1	OWNER'S MANUAL
2	TRIMBAND
3	W11486757 Whirlpool Coupling
4	BEZEL, ROTARY SWITCH
5	WP3395530 Whirlpool Screw
6	KNOB, ROTARY SWITCH
7	BASE
8	UPPER BASE (PASSION RED)
8A	UPPER BASE (BLUE VELVET)
9	SCREW
10	ELECTRONIC CONTROL
11	POWER CORD
12	W10853069 Whirlpool Screw
13	COUPLER
14	W11486756 Whirlpool Screw
15	WP3400814 Whirlpool Screw
16	WP9709366 Whirlpool Seal
17	MOTOR
18	REED SWITCH
19	W10912260 Whirlpool Shim
