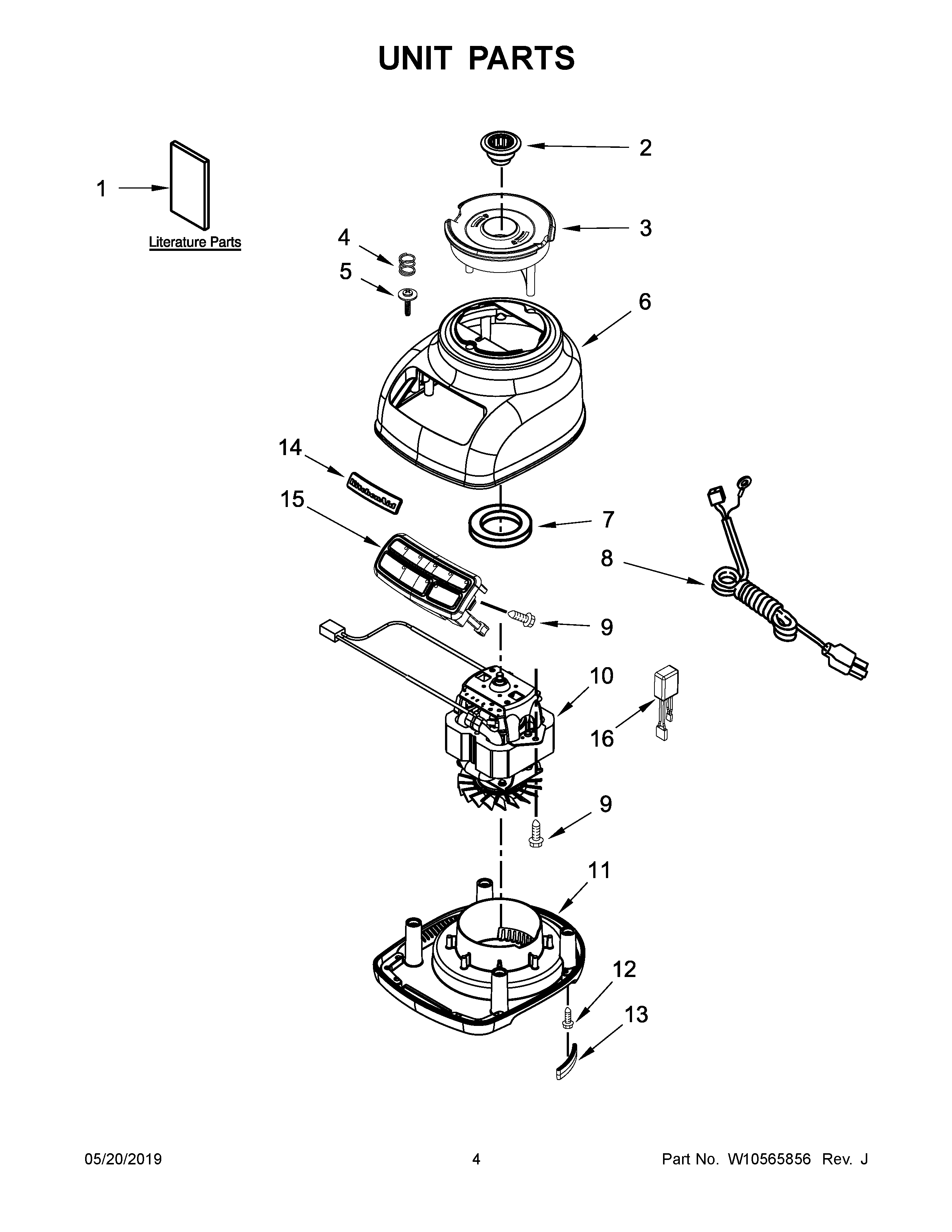

5KSB1585BOB0 03 – UNIT PARTS

Products

Position	Product
1	USE AND CARE GUIDE (EUROPE / UNITED KINGDOM / SWITZERLAND)
2	WPW10279256 Whirlpool Blender Drive Coupler
3	WPW10497275 Whirlpool Jar Lock Assembly
4	SPRING
5	W10859468 Whirlpool Screw
6	HOUSING, UPPER (ALMOND CREME)
6A	HOUSING, UPPER (CANDY APPLE)
6B	W10646525 Whirlpool Housing Assembly
6C	HOUSING, UPPER (CONTOUR SILVER)
6E	HOUSING, UPPER (MATTE VINTAGE BLUE)
6G	HOUSING, UPPER (WHITE)
6F	W10646512 Whirlpool Housing
6D	HOUSING, UPPER (EMPIRE RED)
7	WP9709366 Whirlpool Seal
8	POWER CORD (BLACK - (UNITED KINGDOM))
9	W11164114 Whirlpool Screw
10	WPW10290347 Whirlpool Motor
11	W10497274 Whirlpool Base
12	WPW10068250 Whirlpool Dishwasher Screw
13	W11087504 Whirlpool Foot
14	W10514169 Whirlpool Nameplate
15	CONSOLE ASSEMBLY (INCLUDES INSERT) (220V)
16	FILTER
