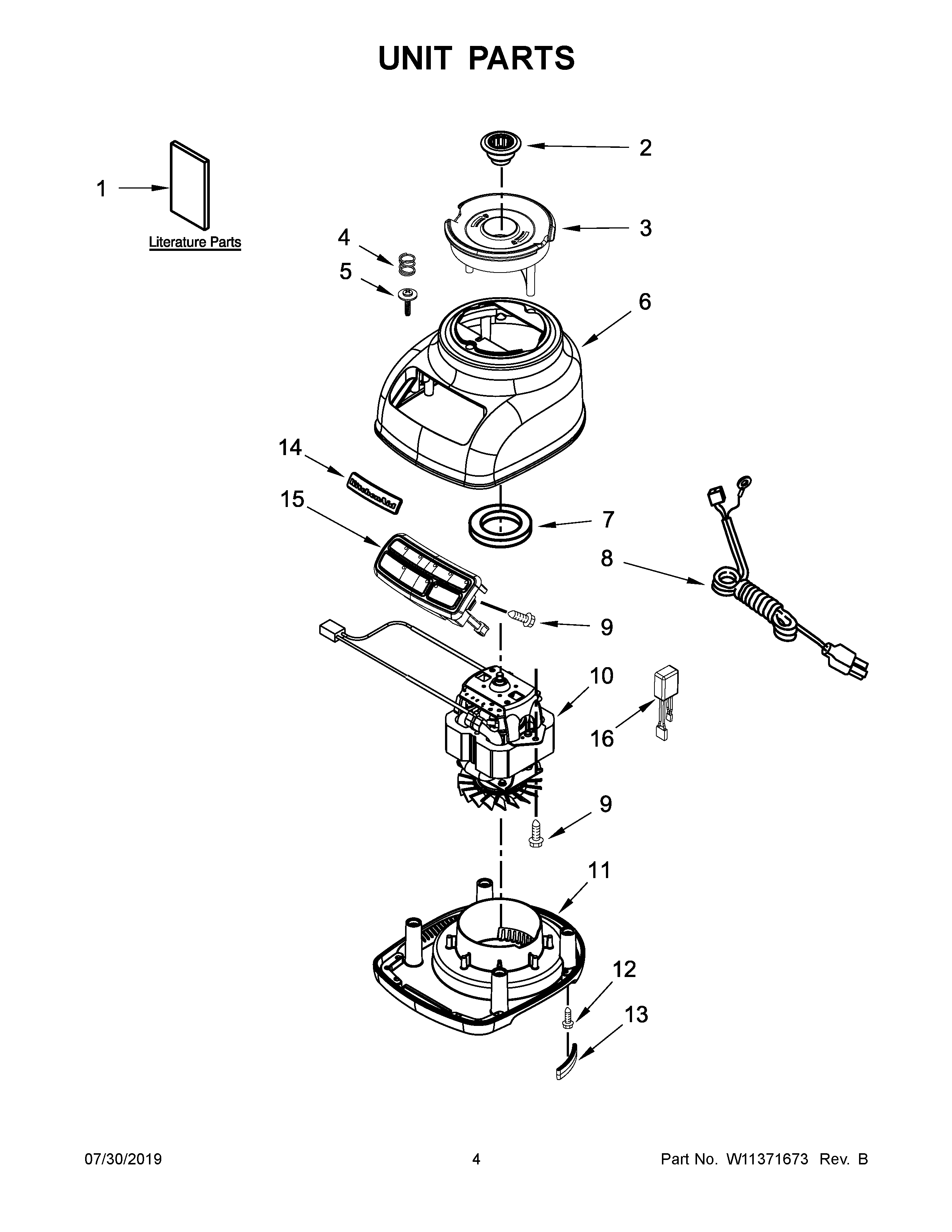

5KSB1585EVB0 03 – UNIT PARTS

5KSB1585EVB0 03 – UNIT PARTS

Written by

in

5KSB1585EVB0 03 – UNIT PARTS

Products

PositionProduct
1USE AND CARE GUIDE (EUROPE / UNITED KINGDOM / SWITZERLAND)
2WPW10279256 Whirlpool Blender Drive Coupler
3WPW10497275 Whirlpool Jar Lock Assembly
4SPRING
5W10859468 Whirlpool Screw
6HOUSING, UPPER (ALMOND CREME)
6AHOUSING, UPPER (CANDY APPLE)
6BW10646525 Whirlpool Housing Assembly
6CHOUSING, UPPER (CONTOUR SILVER)
6EHOUSING, UPPER (MATTE VINTAGE BLUE)
6GHOUSING, UPPER (WHITE)
6FW10646512 Whirlpool Housing
6DHOUSING, UPPER (EMPIRE RED)
7WP9709366 Whirlpool Seal
8W11319629 Whirlpool Power Cord
9W11164114 Whirlpool Screw
10WPW10290347 Whirlpool Motor
11W10497274 Whirlpool Base
12WPW10068250 Whirlpool Dishwasher Screw
13W11087504 Whirlpool Foot
14W10514169 Whirlpool Nameplate
15CONSOLE ASSEMBLY (INCLUDES INSERT) (220V)
16FILTER
