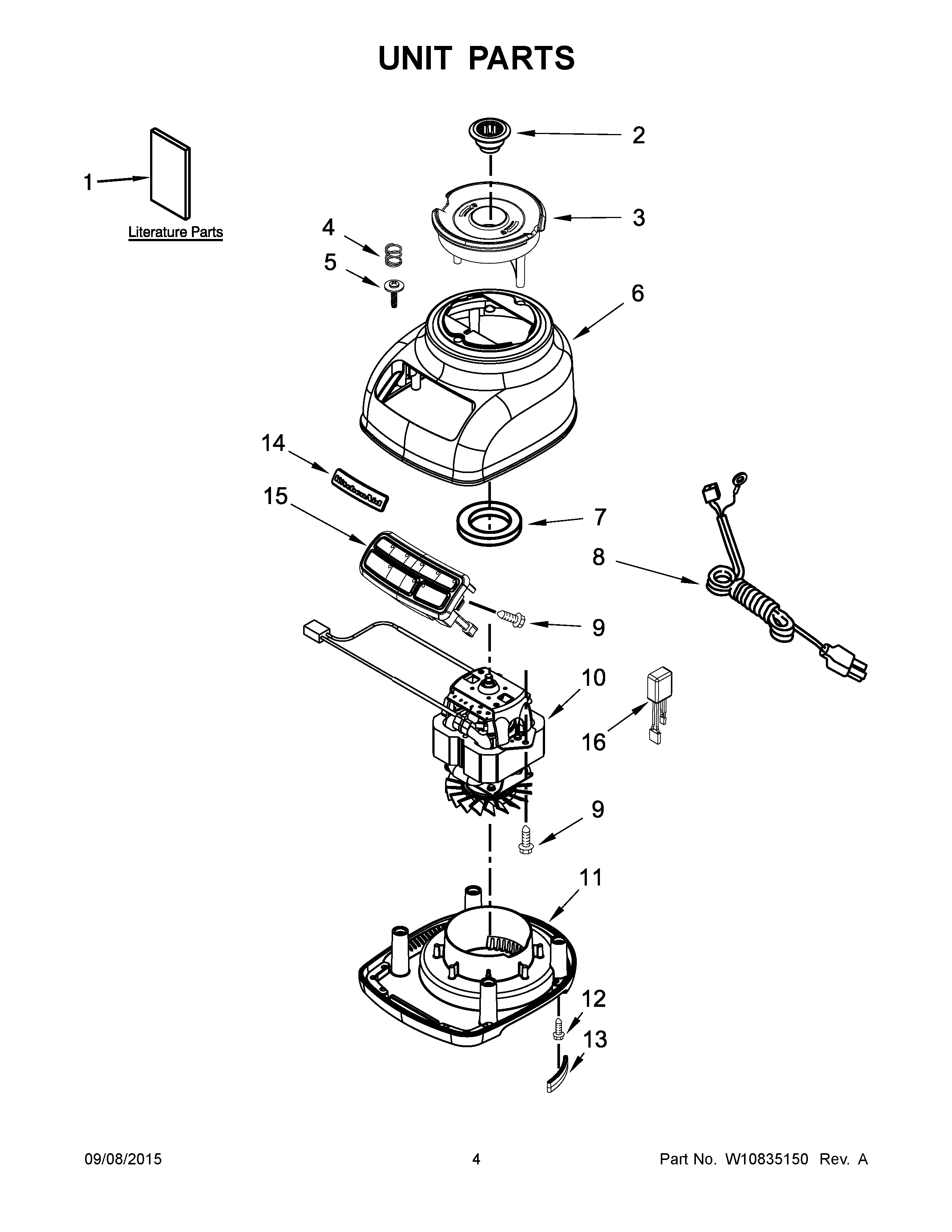

5KSB1586ACA0 03 – UNIT PARTS

Products

Position	Product
1	USE AND CARE GUIDE (AUSTRALIA)
2	WPW10279256 Whirlpool Blender Drive Coupler
3	WPW10497275 Whirlpool Jar Lock Assembly
4	SPRING
5	W10859468 Whirlpool Screw
6B	HOUSING, UPPER (FROSTED PEARL)
6C	HOUSING, UPPER (LIQUID GRAPHITE)
6D	HOUSING, UPPER (RASPBERRY ICE)
6	HOUSING, UPPER (FROSTED AZURE)
6A	HOUSING, UPPER (CANDY APPLE)
7	WP9709366 Whirlpool Seal
8	W10452060 Whirlpool Power Cord
9	W11164114 Whirlpool Screw
10	WPW10290347 Whirlpool Motor
11	W10497274 Whirlpool Base
12	WPW10068250 Whirlpool Dishwasher Screw
13	W11087504 Whirlpool Foot
14	W10514169 Whirlpool Nameplate
15	CONSOLE ASSEMBLY (INCLUDES INSERT) (220V)
16	FILTER, EMI
