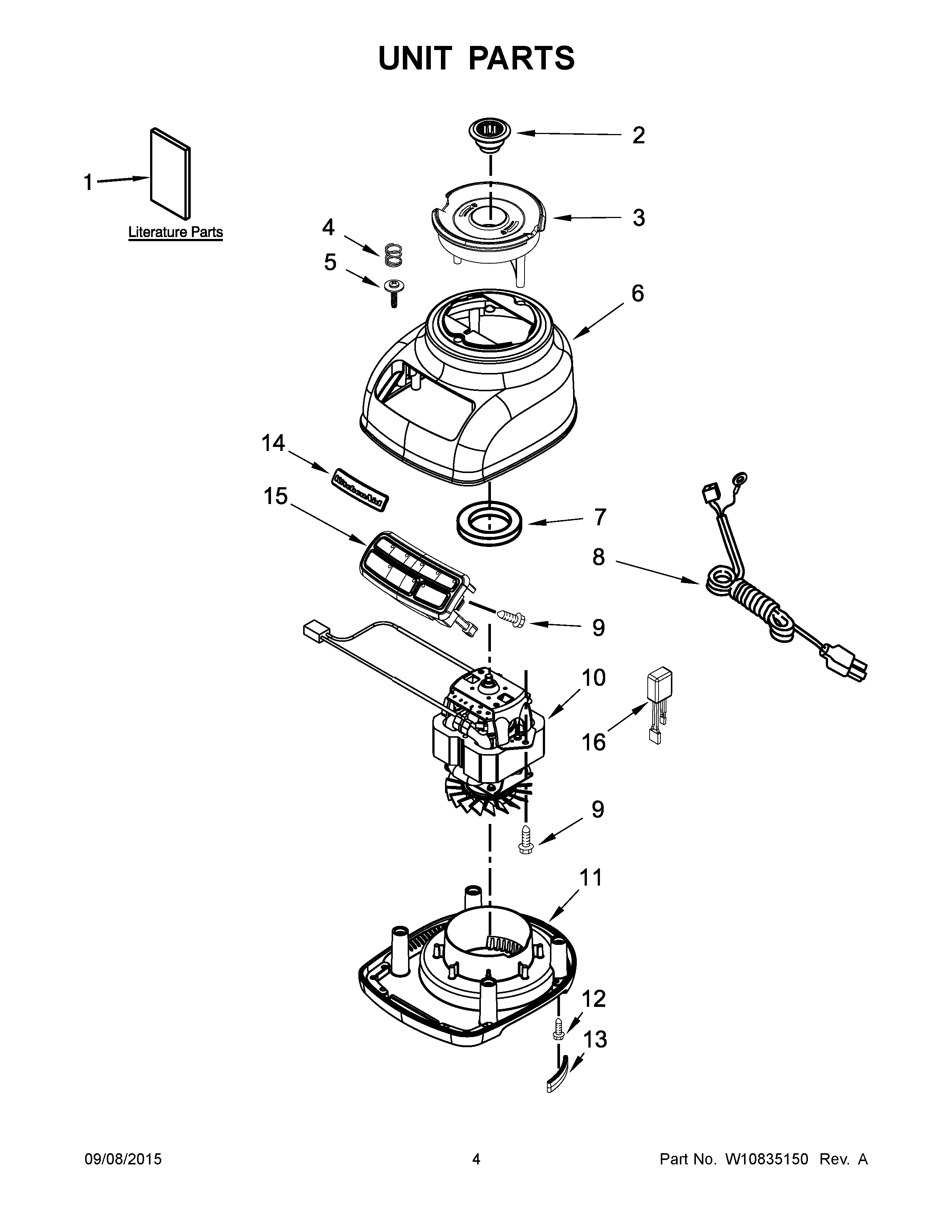

5KSB1586AQG0 03 – UNIT PARTS
Written by
in
5KSB1586AQG0 03 – UNIT PARTS
Products
Position
Product
1
USE AND CARE GUIDE (AUSTRALIA)
2
WPW10279256 Whirlpool Blender Drive Coupler
3
WPW10497275 Whirlpool Jar Lock Assembly
4
SPRING
5
W10859468 Whirlpool Screw
6B
HOUSING, UPPER (FROSTED PEARL)
6C
HOUSING, UPPER (LIQUID GRAPHITE)
6D
HOUSING, UPPER (RASPBERRY ICE)
6
HOUSING, UPPER (FROSTED AZURE)
6A
HOUSING, UPPER (CANDY APPLE)
7
WP9709366 Whirlpool Seal
8
W10452060 Whirlpool Power Cord
9
W11164114 Whirlpool Screw
10
WPW10290347 Whirlpool Motor
11
W10497274 Whirlpool Base
12
WPW10068250 Whirlpool Dishwasher Screw
13
W11087504 Whirlpool Foot
14
W10514169 Whirlpool Nameplate
15
CONSOLE ASSEMBLY (INCLUDES INSERT) (220V)
16
FILTER, EMI
←
