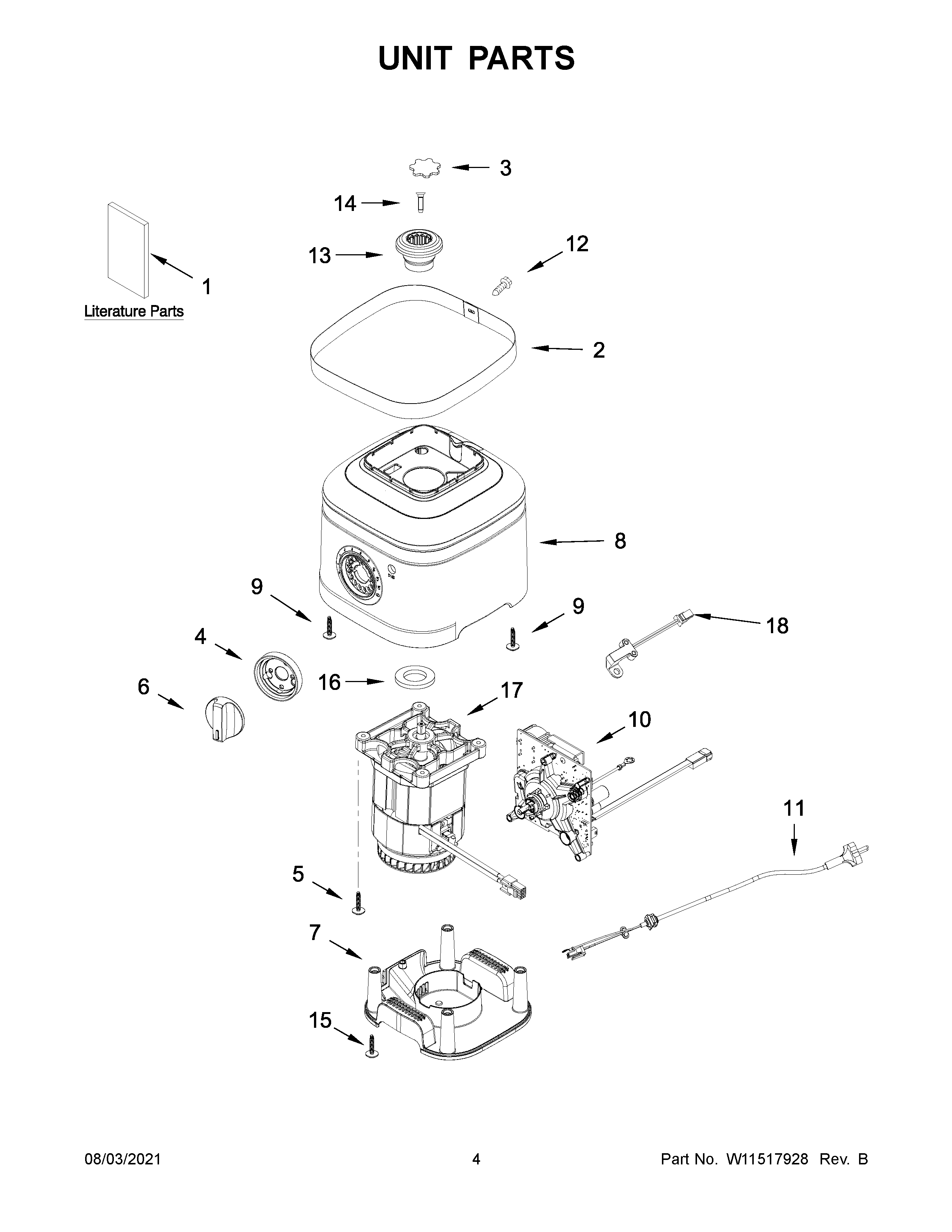

5KSB4026AHY0 03 – UNIT PARTS

5KSB4026AHY0 03 – UNIT PARTS

Written by

in

5KSB4026AHY0 03 – UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	TRIMBAND
3	W11486757 Whirlpool Coupling
4	BEZEL, ROTARY SWITCH
5	WP3395530 Whirlpool Screw
6	KNOB, ROTARY SWITCH
7	BASE
8	UPPER BASE (HONEY)
8A	UPPER BASE (BEETROOT)
9	SCREW
10	ELECTRONIC CONTROL
11	POWER CORD
12	W10853069 Whirlpool Screw
13	COUPLER
14	W11486756 Whirlpool Screw
15	WP3400814 Whirlpool Screw
16	W11643384 Whirlpool Ring
17	W11443916 Whirlpool Motor
18	REED SWITCH
