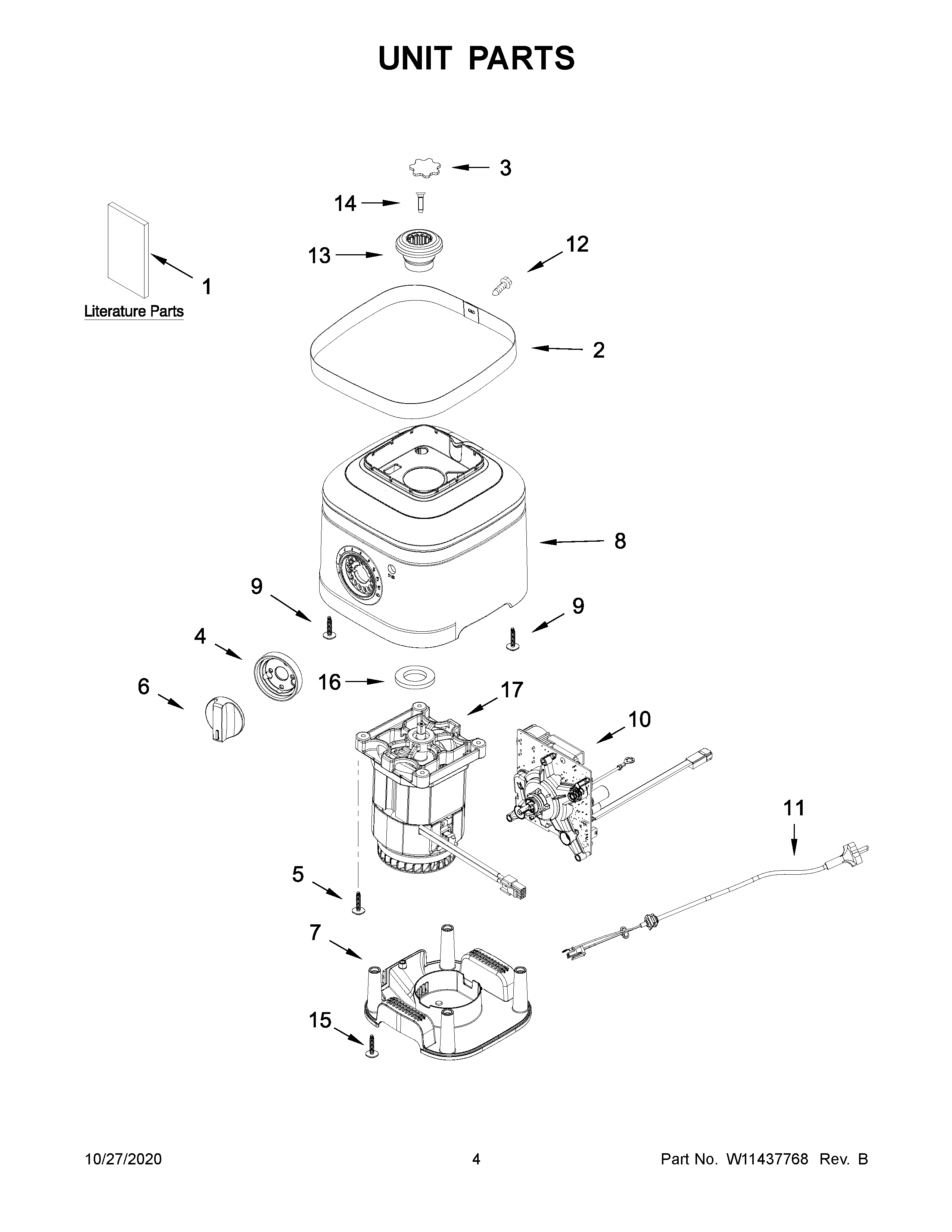

5KSB4026BAC0 03 – UNIT PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	TRIMBAND
3	W11486757 Whirlpool Coupling
4	BEZEL, ROTARY SWITCH
5	WP3395530 Whirlpool Screw
6	KNOB, ROTARY SWITCH
7	BASE
8M	UPPER BASE (PASSION RED)
8E	UPPER BASE (HONEY)
8P	W11328611 Whirlpool Housing
8G	UPPER BASE (IMPERIAL GREY)
8H	UPPER BASE (INK BLUE)
8I	UPPER BASE (KYOTO GLOW)
8J	UPPER BASE (MATTE DRIED ROSE)
8K	UPPER BASE (MEDALLION SILVER)
8L	UPPER BASE (ONYX BLACK)
😯	UPPER BASE (PISTACHIO)
8N	UPPER BASE (PEBBLED PALM)
8D	UPPER BASE (HIBISCUS)
8C	UPPER BASE (EMPIRE RED)
8A	UPPER BASE (BEETROOT)
8B	UPPER BASE (CANDY APPLE)
8F	UPPER BASE (IMPERIAL BLACK)
8	UPPER BASE (ALMOND CREME)
9	SCREW
10	ELECTRONIC CONTROL
11	POWER CORD (BLACK (UNITED KINGDOM))
12	W10853069 Whirlpool Screw
13	COUPLER
14	W11486756 Whirlpool Screw
15	WP3400814 Whirlpool Screw
16	W11643384 Whirlpool Ring
17	W11443916 Whirlpool Motor
18	REED SWITCH
