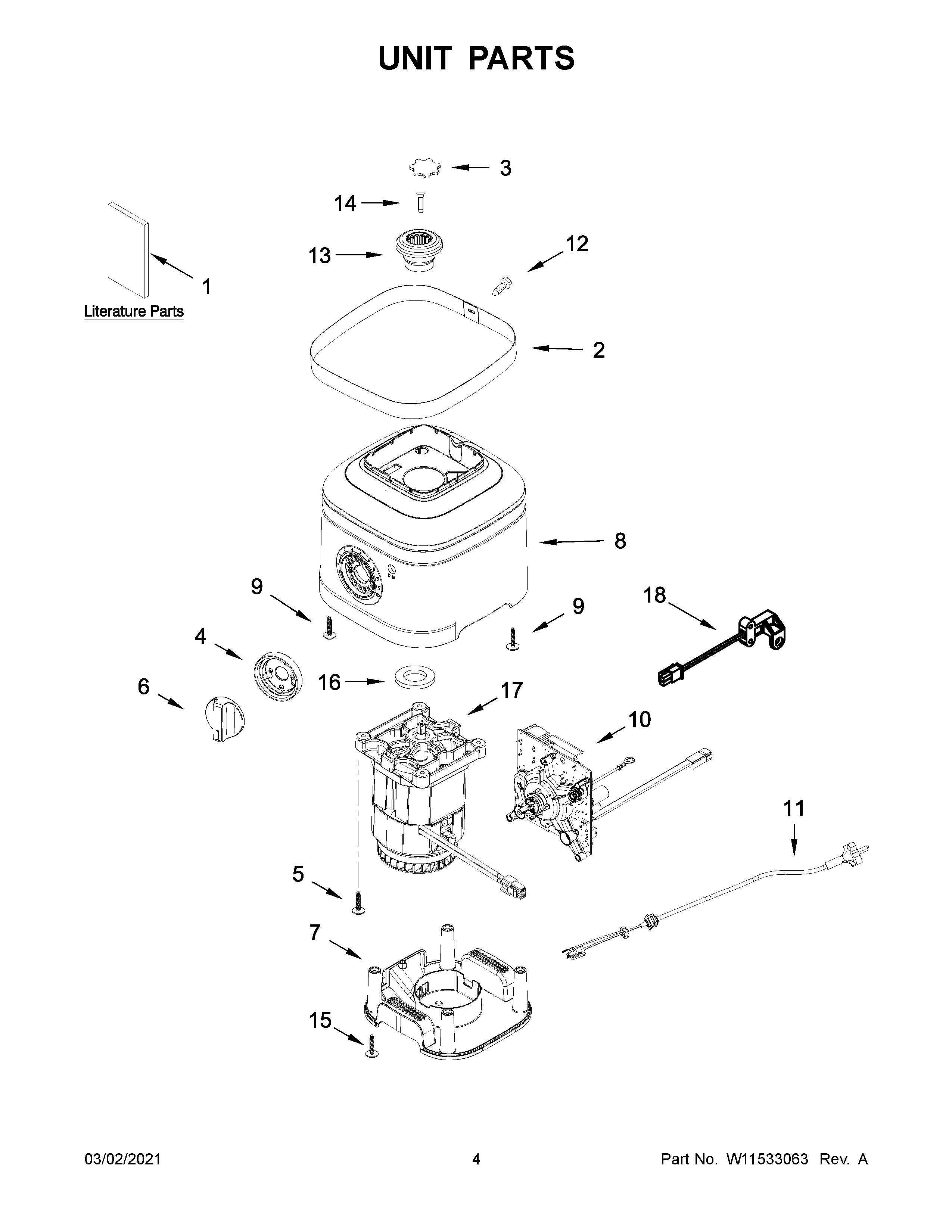

5KSB4034ECA0 03 – UNIT PARTS

5KSB4034ECA0 03 – UNIT PARTS

Written by

in

5KSB4034ECA0 03 – UNIT PARTS

Products

PositionProduct
1OWNER'S MANUAL
2TRIMBAND
3W11486757 Whirlpool Coupling
4BEZEL, ROTARY SWITCH
5WP3395530 Whirlpool Screw
6KNOB, ROTARY SWITCH
7BASE
8UPPER BASE (IMPERIAL BLACK)
8AUPPER BASE (CANDY APPLE)
9SCREW
10ELECTRONIC CONTROL
11POWER CORD
12W10853069 Whirlpool Screw
13COUPLER
14W11486756 Whirlpool Screw
15WP3400814 Whirlpool Screw
16W11643384 Whirlpool Ring
17W11443916 Whirlpool Motor
18REED SWITCH
