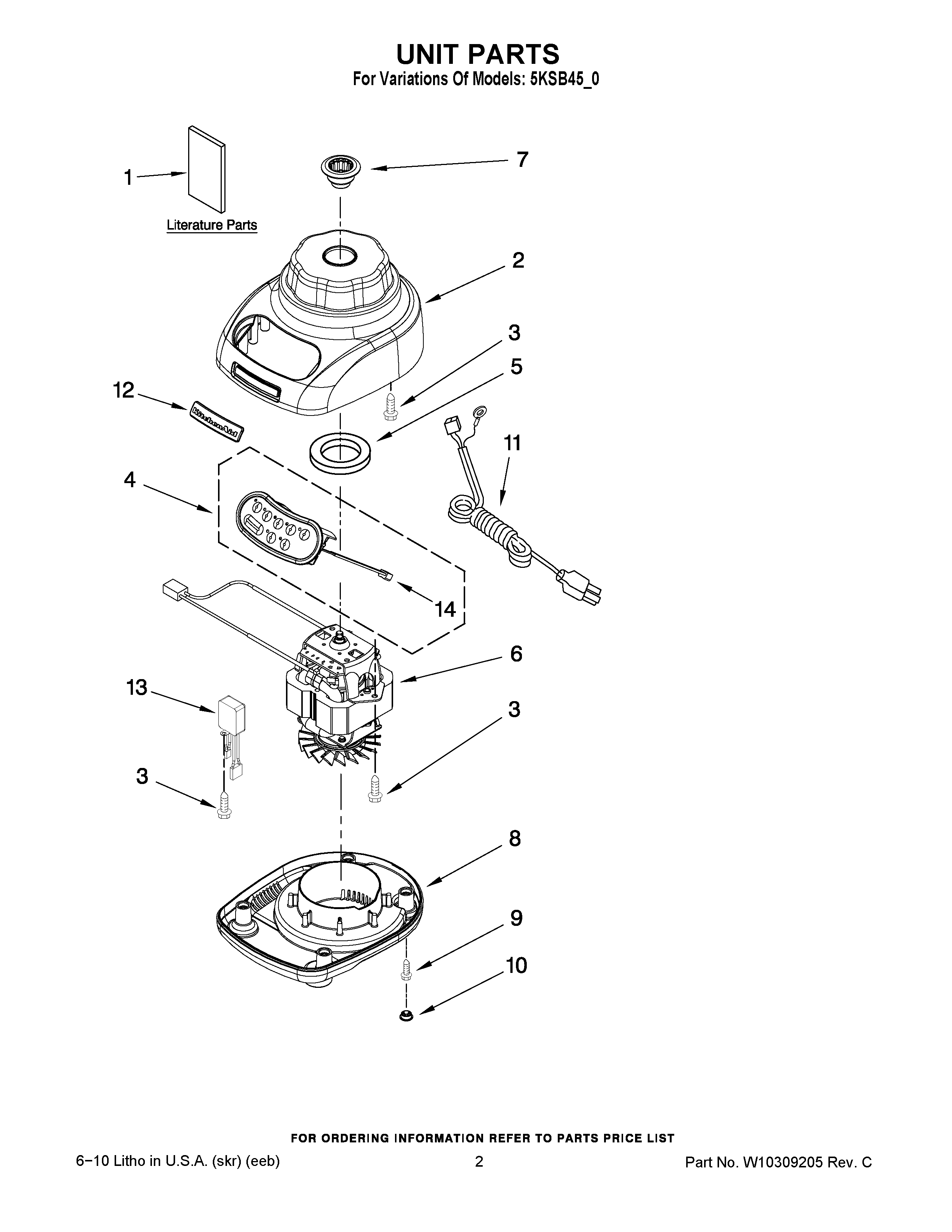

5KSB45EWH0 01 – UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	REPAIR PARTS LIST
2	WP9708896 Whirlpool Housing Assembly
3	WPW10068250 Whirlpool Dishwasher Screw
4	CONTROL ASSEMBLY
5	WP9709366 Whirlpool Seal
6	WPW10290347 Whirlpool Motor
7	WPW10279256 Whirlpool Blender Drive Coupler
8	W11164114 Whirlpool Screw
8	WP9708890 Whirlpool Base
9	WPW10524701 Whirlpool Foot Assembly
10	POWER CORD (WHITE BRITAIN)
11	POWER CORD (WHITE – SWISS)
11	9708919 Whirlpool Power Cord
11	W10452060 Whirlpool Power Cord
12	W10161493 Whirlpool Nameplate
13	FILTER, EMI
14	SENSOR, HALL EFFECT
