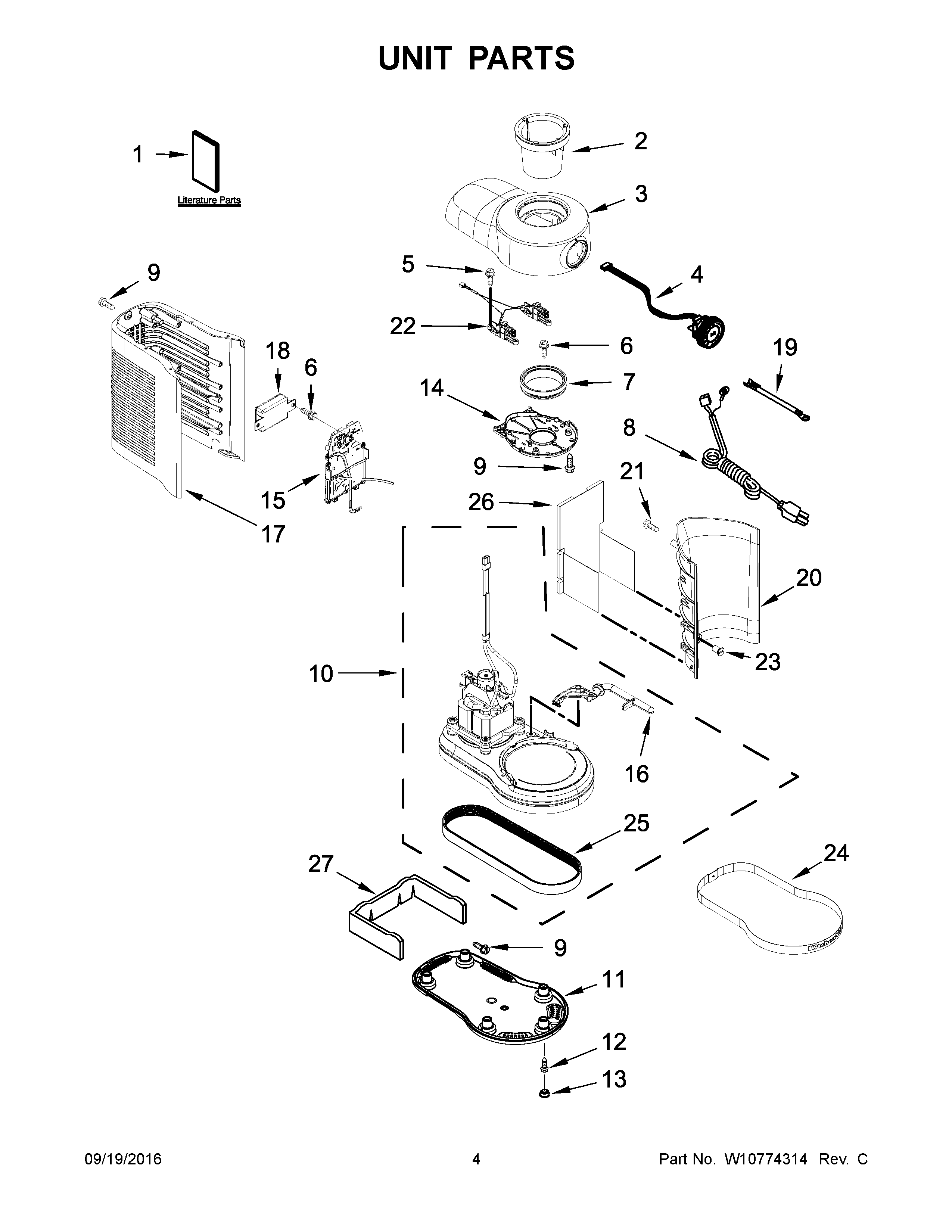

5KSB5080A0B0 03 – UNIT PARTS

5KSB5080A0B0 03 – UNIT PARTS

Written by

in

5KSB5080A0B0 03 – UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE, EUROPEAN/BRITAIN
1AUSE & CARE GUIDE, AUSTRALIAN
2COLLAR, BLENDER
3FHOUSING, UPPER (ONYX BLACK)
3EHOUSING, UPPER (MEDALLION SILVER)
3CHOUSING, UPPER (EMPIRE RED)
3AHOUSING, UPPER (IMPERIAL BLACK)
3HOUSING, UPPER (ALMOND CREME)
3BHOUSING, UPPER (CANDY APPLE)
3DHOUSING, UPPER (FROSTED PEARL)
4W10625896 Whirlpool Control
5W10853069 Whirlpool Screw
6WPW10068250 Whirlpool Dishwasher Screw
7W11087498 Whirlpool O Ring
8APOWER CORD (AUSTRALIAN)
8BPOWER CORD (BRITAIN)
8POWER CORD (BLACK (EUROPE))
9WP3400814 Whirlpool Screw
10CHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (EMPIRE RED)
10DHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (FROSTED PEARL)
10EHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (MEDALLION SILVER)
10HOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (ALMOND CREME)
10FHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (ONYX BLACK)
10AHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (IMPERIAL BLACK)
10BHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (CANDY APPLE)
11BASE, BLENDER
12W11164114 Whirlpool Screw
13WPW10524701 Whirlpool Foot Assembly
14DWPL W10707886
14EWPL W10707882
14CWPL W10718036
14ACOVER, UPPER HOUSING (IMPERIAL BL
14COVER, UPPER HOUSING (ALMOND CREME)
14BCOVER, UPPER HOUSING (CANDY APPLE)
14FWPL W10707878
15CONTROL BOARD ASSEMBLY
16W10769702 Whirlpool Lever
17AWPL W10708606
17WPL W10718040
17DWPL W10707884
17BHOUSING, SURROUND (CANDY APPLE)
17FWPL W10707876
17EWPL W10707880
17CWPL W10718033
18W11123146 Whirlpool Speaker
19WIRE, GROUND
20HOUSING, FRONT
21SCREW
22SWITCH ASSEMBLY, INTERLOCK
23W10768470 Whirlpool Bumper
24W10629023 Whirlpool Trim Band
24AWPL W10729919
25W11123130 Whirlpool Belt
26INSULATION, SOUND (FRONT HOUSING)
27W11688428 Whirlpool Insulation
