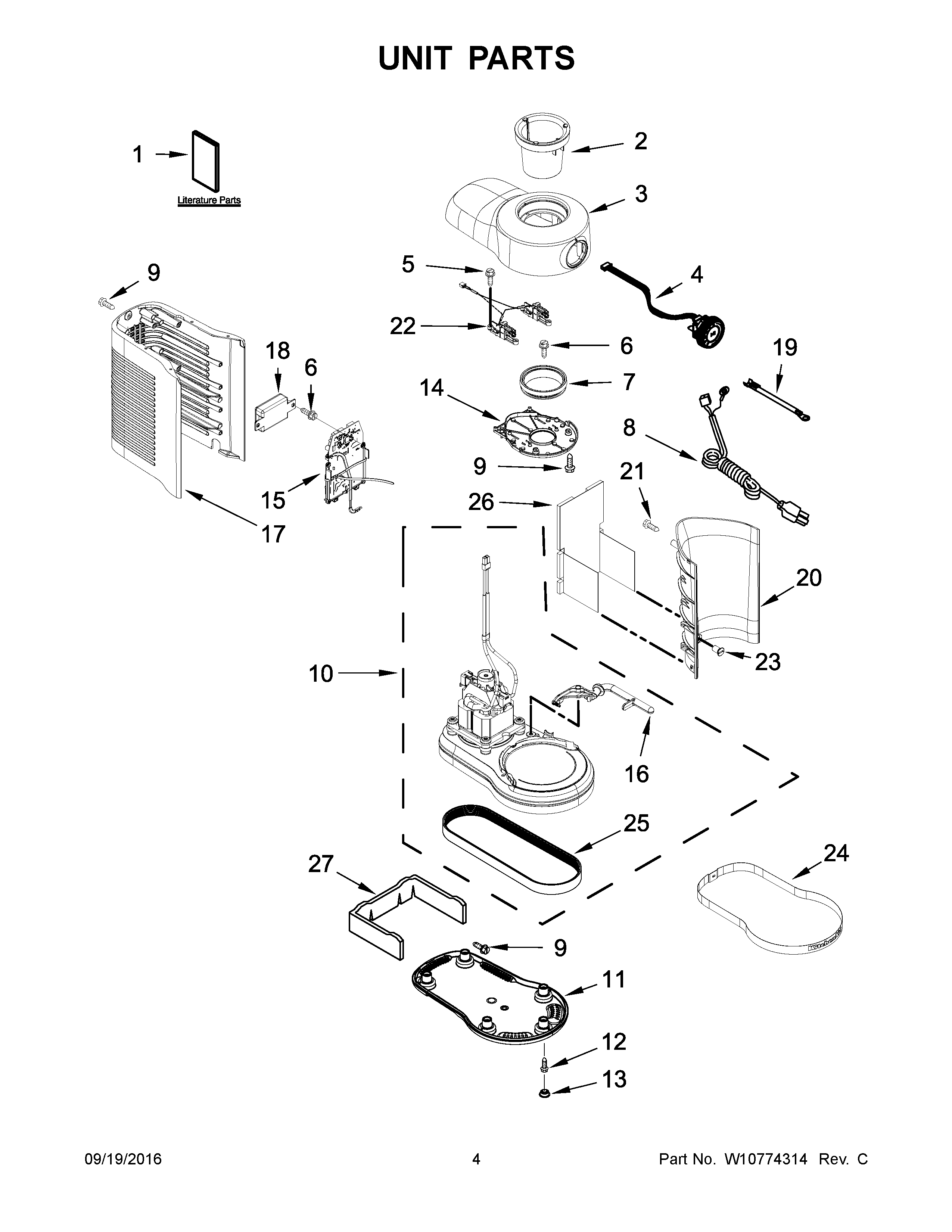

5KSB5080BOB0 03 – UNIT PARTS

5KSB5080BOB0 03 – UNIT PARTS

Written by

in

5KSB5080BOB0 03 – UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE, EUROPEAN/BRITAIN
1BUSE & CARE GUIDE (EUROPE/BRAZIL)
1AUSE & CARE GUIDE, AUSTRALIAN
2W10801981 Whirlpool Collar
3HOUSING, UPPER (ALMOND CREME)
3AHOUSING, UPPER (IMPERIAL BLACK)
3DHOUSING, UPPER (FROSTED PEARL)
3EHOUSING, UPPER (MEDALLION SILVER)
3FHOUSING, UPPER (ONYX BLACK)
3GHOUSING, UPPER (RASPBERRY ICE)
3BHOUSING, UPPER (CANDY APPLE)
3CHOUSING, UPPER (EMPIRE RED)
4W10625896 Whirlpool Control
5W10853069 Whirlpool Screw
6WPW10068250 Whirlpool Dishwasher Screw
7W11087498 Whirlpool O Ring
8CPOWER CORD (BLACK (CHINA))
8POWER CORD (BLACK (EUROPE))
8APOWER CORD (AUSTRALIAN)
8BPOWER CORD (BRITAIN)
9WP3400814 Whirlpool Screw
10HOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (ALMOND CREME)
10GWPL W10801696
10AHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (IMPERIAL BLACK)
10BHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (CANDY APPLE)
10CHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (EMPIRE RED)
10EHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (MEDALLION SILVER)
10FHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (ONYX BLACK)
10DHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (FROSTED PEARL)
11BASE, BLENDER
12W11164114 Whirlpool Screw
13WPW10524701 Whirlpool Foot Assembly
14ACOVER, UPPER HOUSING (IMPERIAL BL
14BCOVER, UPPER HOUSING (CANDY APPLE)
14FWPL W10707878
14DWPL W10707886
14CWPL W10718036
14COVER, UPPER HOUSING (ALMOND CREME)
14EWPL W10707882
14GWPL W10801690
15CONTROL BOARD ASSEMBLY
16W10769702 Whirlpool Lever
17AWPL W10708606
17CWPL W10718033
17WPL W10718040
17DWPL W10707884
17EWPL W10707880
17GWPL W10801688
17FWPL W10707876
17BHOUSING, SURROUND (CANDY APPLE)
18W11123146 Whirlpool Speaker
19WIRE, GROUND
20HOUSING, FRONT
21SCREW
22SWITCH ASSEMBLY, INTERLOCK
23W10768470 Whirlpool Bumper
24W10629023 Whirlpool Trim Band
24AWPL W10729919
25W11123130 Whirlpool Belt
26INSULATION, SOUND (FRONT HOUSING)
27W11688428 Whirlpool Insulation
