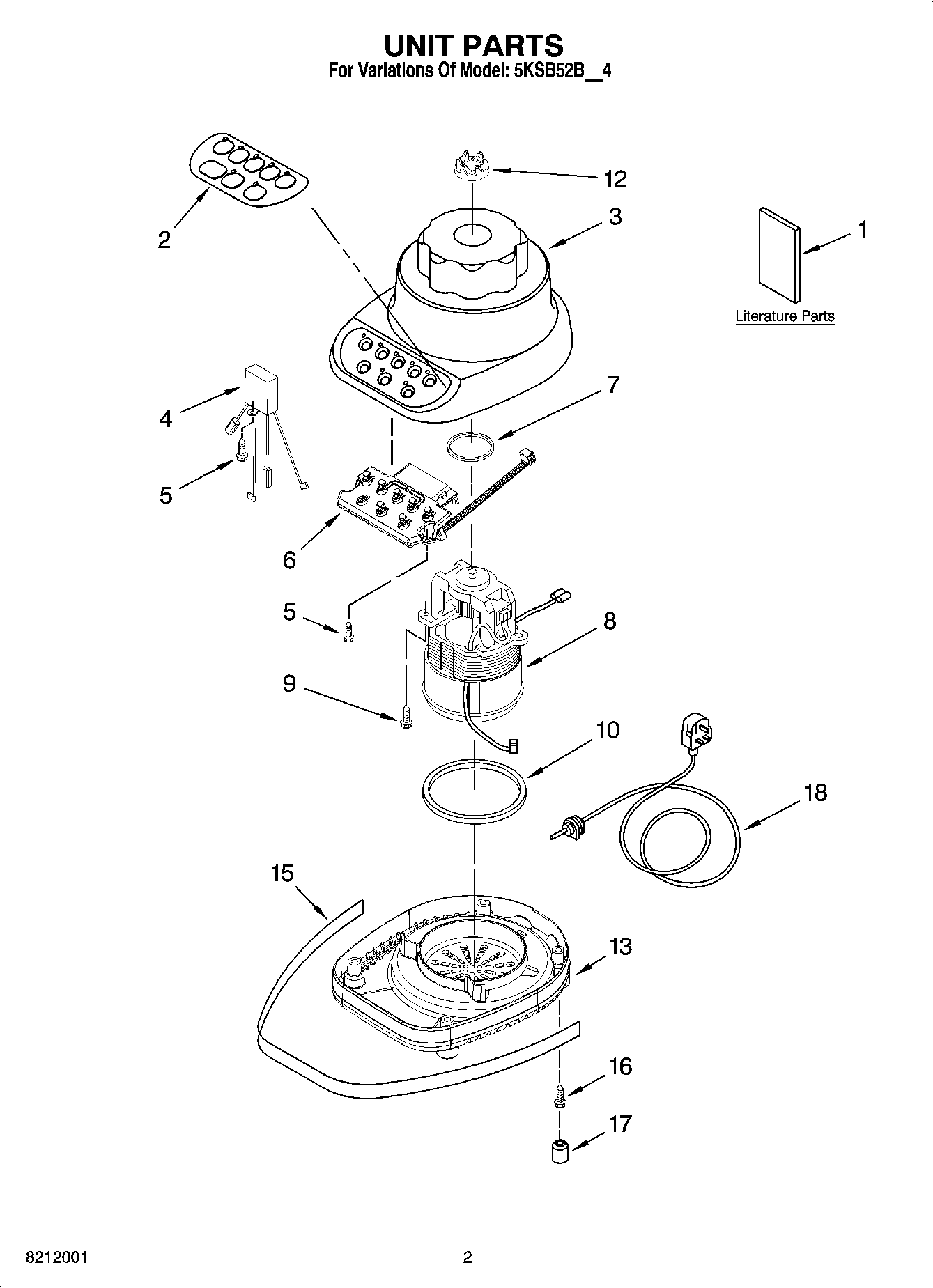

5KSB52BBU4 01 – UNIT PARTS

Products

Position	Product
1	Repair Parts List
1	Use & Care Guide
2	Overlay, Switch
3	Housing, Upper (Almond Creme)
3	Housing, Upper (Majestic Yellow)
3	Housing, Upper (Onyx Black)
3	Housing, Upper (Cobalt Blue)
3	Housing, Upper (Imperial Grey)
3	Housing, Upper (White)
3	Housing, Upper (Brushed Nickel)
3	Housing, Upper (Empire Red)
4	EMI Filter
5	WPW10068250 Whirlpool Dishwasher Screw
6	Board, Control
7	Seal, Motor
8	Motor
9	Screw
10	O-Ring
12	WP9704230 Whirlpool Coupling
13	Base (Empire Red)
13	Base (Majestic Yellow)
13	Base (Imperial Grey)
13	Base (Cobalt Blue)
13	Base (Almond Creme)
13	Base (White)
15	Band, Trim
16	Screw
17	Foot, Base
18	Power Cord (White)
18	Power Cord (Black)
