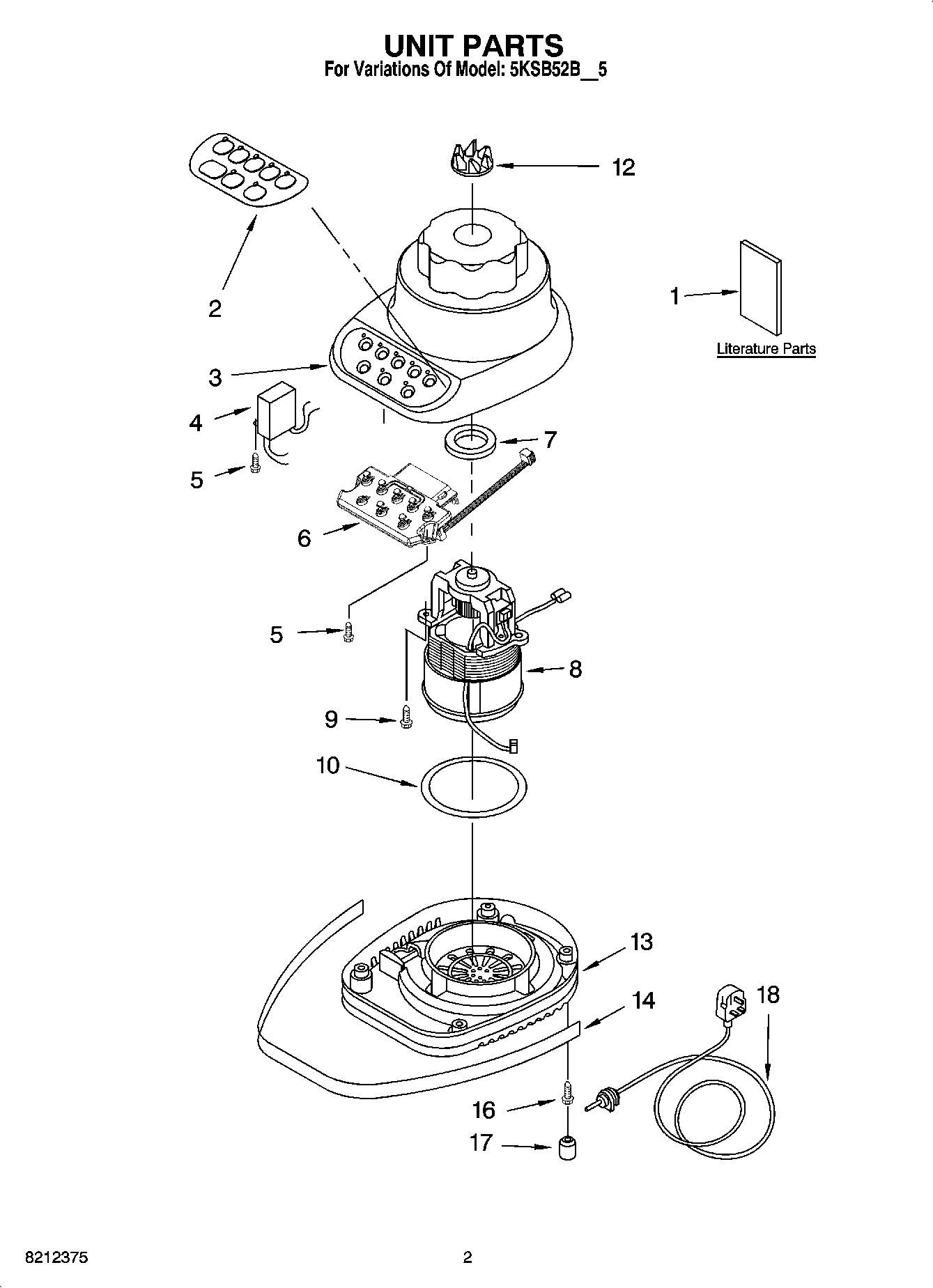

5KSB52BBU5 01 – UNIT PARTS

Products

PositionProduct
1Repair Parts List
1Use & Care Guide
2Overlay, Switch
3Housing, Upper (Imperial Grey)
3Housing, Upper (Empire Red)
3Housing, Upper (Majestic Yellow)
3Housing, Upper (Onyx Black)
3Housing, Upper (Cobalt Blue)
3Housing, Upper (Almond Creme)
3Housing, Upper (White)
3Housing, Upper (Brushed Nickel)
3Housing, Upper (Pearl Metallic)
4EMI Filter
5WPW10068250 Whirlpool Dishwasher Screw
6Board, Control
7Seal, Motor
8Motor
9Screw
10O-Ring
12WP9704230 Whirlpool Coupling
13Base (Empire Red)
13Base (Majestic Yellow)
13Base (Cobalt Blue)
13Base (Almond Creme)
13Base (White)
13Base (Imperial Grey)
14Band, Trim
16Screw
17Foot, Base
18Power Cord (White)
18Power Cord (Black)
