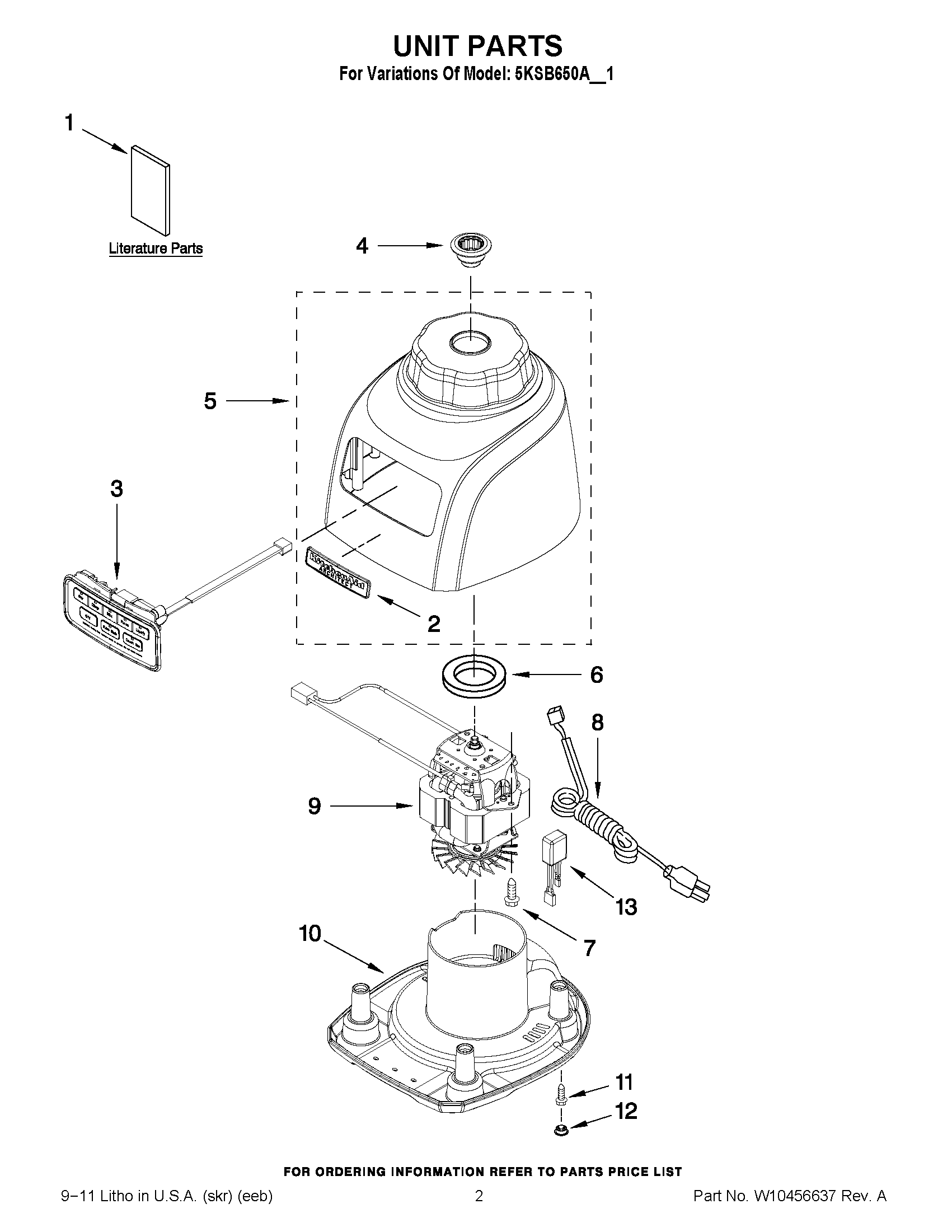

5KSB650AMS1 01 – UNIT PARTS

Products

Position	Product
1	REPAIR PARTS LIST
1	USE & CARE
2	NAMEPLATE
3	CONTROL ASSEMBLY
4	WPW10279256 Whirlpool Blender Drive Coupler
5	WPW10452517 Whirlpool Housing
5	WPW10443267 Whirlpool Housing
5	WPW10443266 Whirlpool Housing
5	HOUSING, UPPER INCL. NAMEPLATE (CANDY APPLE)
5	WPW10443268 Whirlpool Housing Assembly
6	WP9709366 Whirlpool Seal
7	WPW10068250 Whirlpool Dishwasher Screw
8	W10452060 Whirlpool Power Cord
9	WPW10290347 Whirlpool Motor
10	W10243482 Whirlpool Base Assembly
11	W11164114 Whirlpool Screw
12	WPW10524701 Whirlpool Foot Assembly
13	FILTER, EMI
