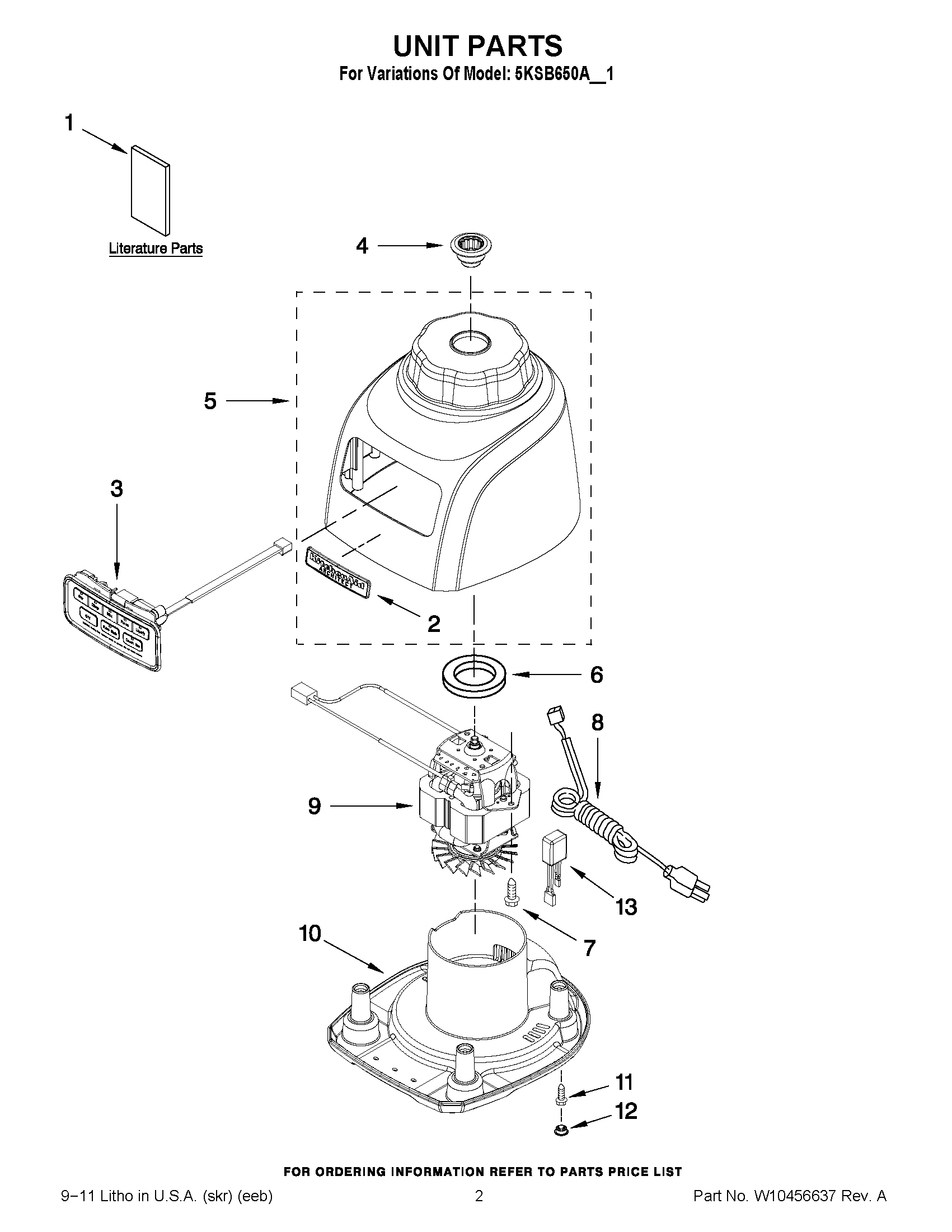

5KSB650ARI1 01 – UNIT PARTS

5KSB650ARI1 01 – UNIT PARTS

Written by

in

5KSB650ARI1 01 – UNIT PARTS

Products

PositionProduct
1REPAIR PARTS LIST
1USE & CARE
2NAMEPLATE
3CONTROL ASSEMBLY
4WPW10279256 Whirlpool Blender Drive Coupler
5WPW10452517 Whirlpool Housing
5WPW10443267 Whirlpool Housing
5WPW10443266 Whirlpool Housing
5HOUSING, UPPER INCL. NAMEPLATE (CANDY APPLE)
5WPW10443268 Whirlpool Housing Assembly
6WP9709366 Whirlpool Seal
7WPW10068250 Whirlpool Dishwasher Screw
8W10452060 Whirlpool Power Cord
9WPW10290347 Whirlpool Motor
10W10243482 Whirlpool Base Assembly
11W11164114 Whirlpool Screw
12WPW10524701 Whirlpool Foot Assembly
13FILTER, EMI
