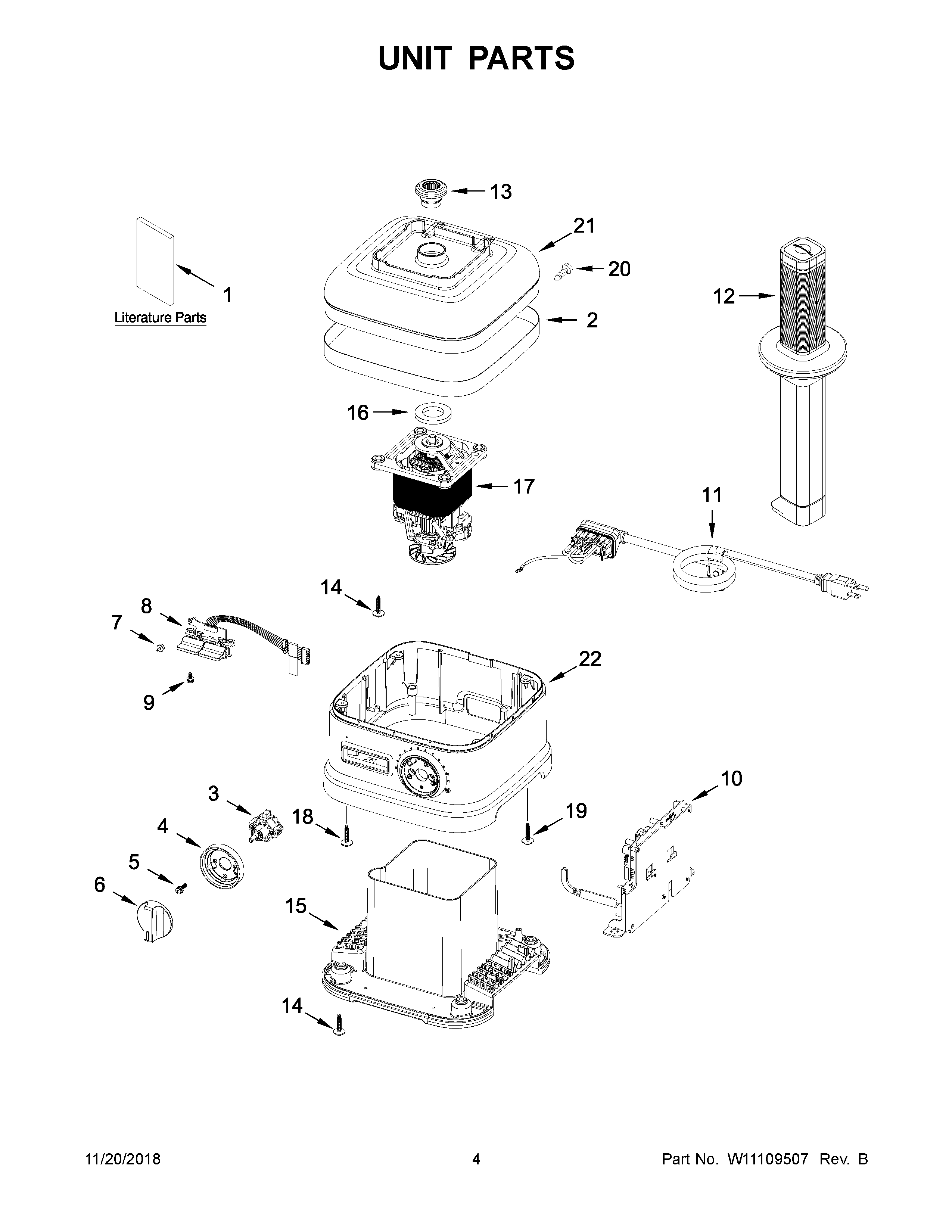

5KSBC1B0SCU0 03 – UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2TRIMBAND
3W10884366 Whirlpool Switch
4BEZEL, ROTARY SWITCH
5SCREW
6W11168413 Whirlpool Knob
7TOGGLE LED LENS
8W11176159 Whirlpool Switch
9SCREW
10ELECTRONIC CONTROL – 220V
11BPOWER CORD (BLACK (SWITZERLAND))
11APOWER CORD (BLACK (EUROPE))
11POWER CORD (BLACK (UNITED KINGDOM))
12TAMPER
13W10895290 Whirlpool Coupling Assembly
14SCREW
15BASE
16W11700631 Whirlpool Ring
17MOTOR – 220V
18WPW10068250 Whirlpool Dishwasher Screw
19WP3400814 Whirlpool Screw
20W10853069 Whirlpool Screw
21UPPER BASE (BLACK MATTE)
21AUPPER BASE (CONTOUR SILVER)
22ALOWER BASE (CONTOUR SILVER)
22LOWER BASE (BLACK MATTE)
