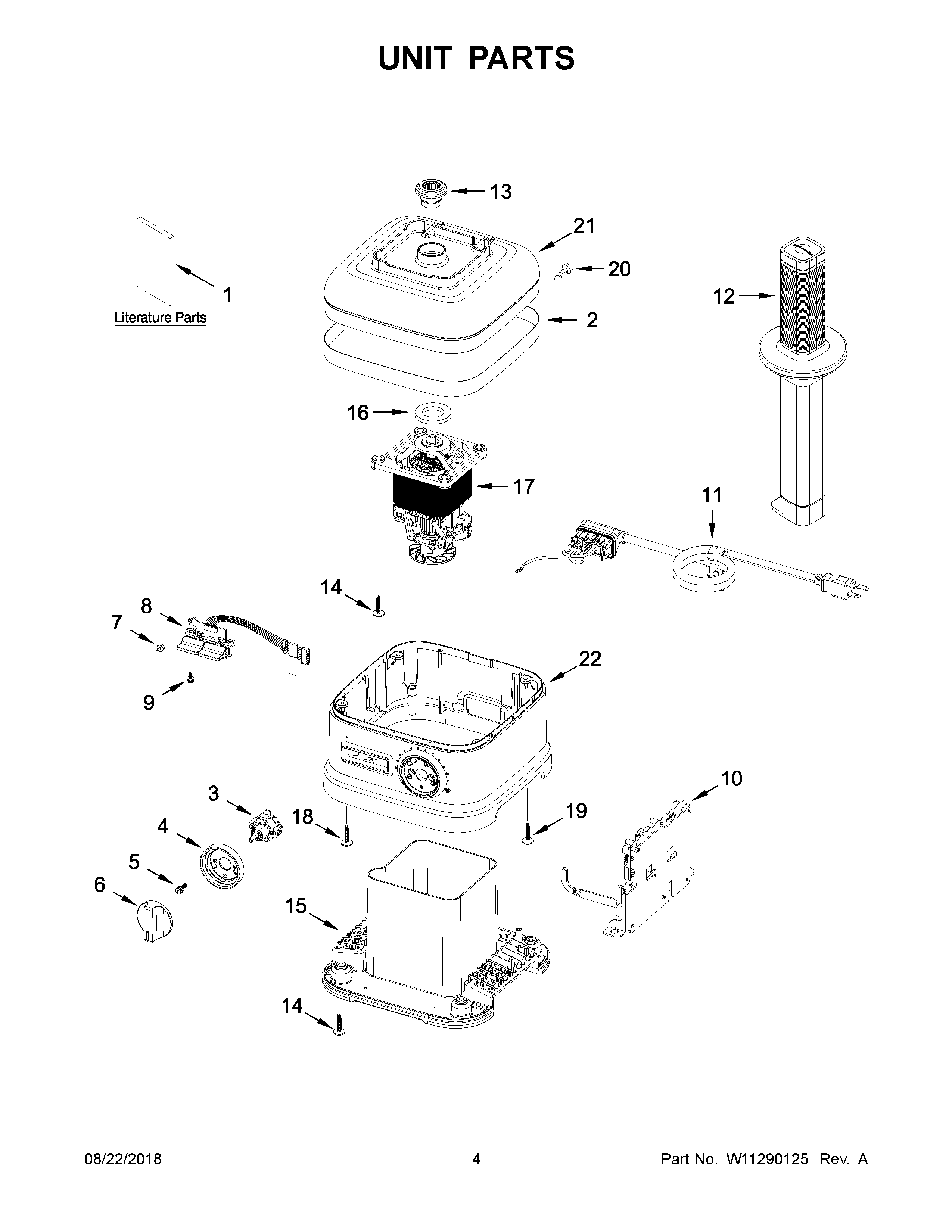

5KSBC1B0ZCU0 03 – UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	TRIMBAND
3	W10884366 Whirlpool Switch
4	BEZEL, ROTARY SWITCH
5	SCREW
6	W11168413 Whirlpool Knob
7	TOGGLE LED LENS
8	W11176159 Whirlpool Switch
9	SCREW
10A	ELECTRONIC CONTROL – 220V
10	ELECTRONIC CONTROL – 120V
11A	POWER CORD – 220V
11	POWER CORD – 120V
12	TAMPER
13	W10895290 Whirlpool Coupling Assembly
14	SCREW
15	BASE
16	W11700631 Whirlpool Ring
17	W11167358 Whirlpool Motor
17A	MOTOR – 220V
18	WPW10068250 Whirlpool Dishwasher Screw
19	WP3400814 Whirlpool Screw
20	W10853069 Whirlpool Screw
21A	UPPER BASE (CONTOUR SILVER)
21	UPPER BASE (BLACK MATTE)
22A	LOWER BASE (CONTOUR SILVER)
22	LOWER BASE (BLACK MATTE)
