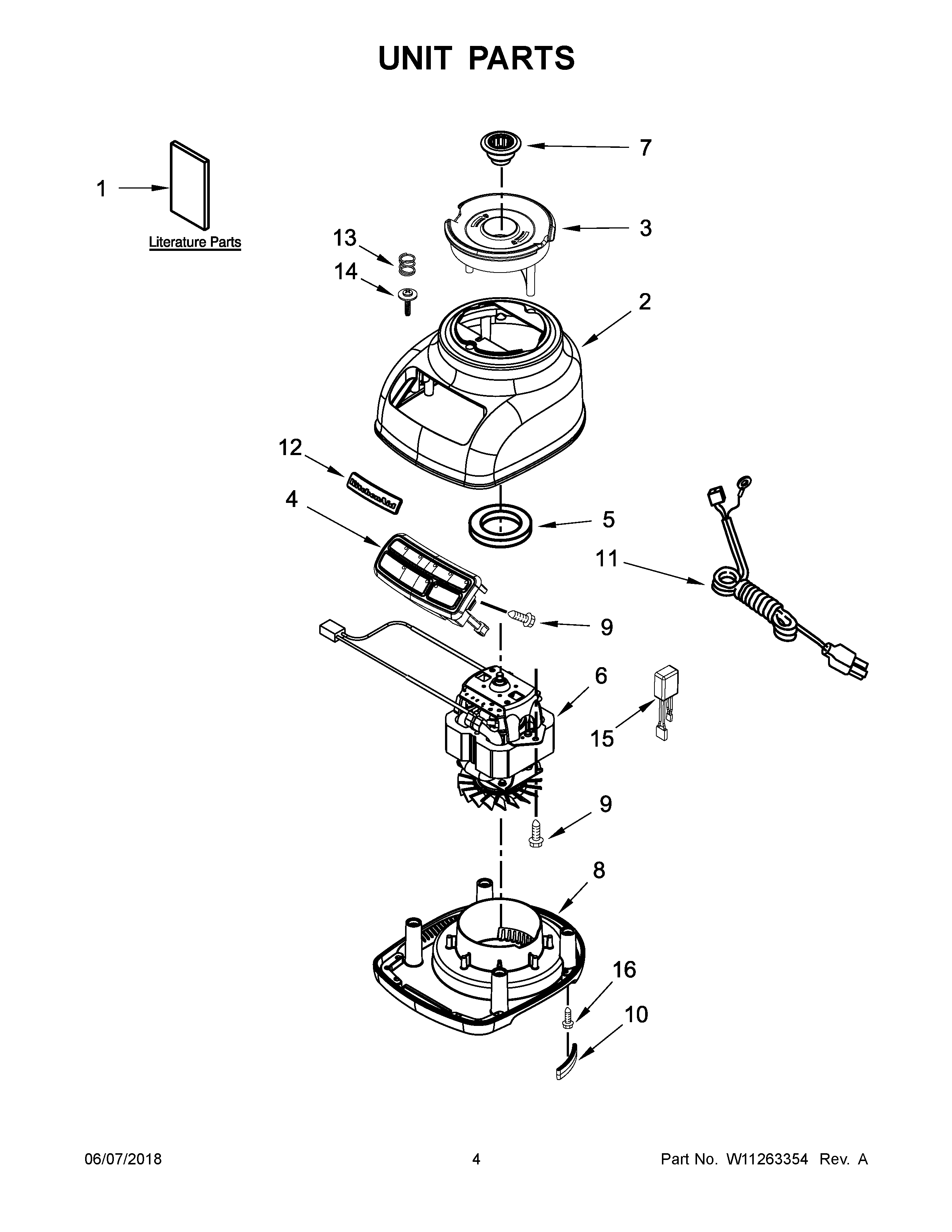

5KSBL5651SOB0 03 – UNIT PARTS

5KSBL5651SOB0 03 – UNIT PARTS

Written by

in

5KSBL5651SOB0 03 – UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W10646512 Whirlpool Housing
3WPW10497275 Whirlpool Jar Lock Assembly
4CONTROL ASSEMBLY (INCL. OVERLAY) (SILVER)
5WP9709366 Whirlpool Seal
6WPW10290347 Whirlpool Motor
7WPW10279256 Whirlpool Blender Drive Coupler
8W10497274 Whirlpool Base
9W11164114 Whirlpool Screw
10W11087504 Whirlpool Foot
11BPOWER CORD (BLACK – (SWITZERLAND))
11POWER CORD (BLACK – (UNITED KINGDOM))
11AW11319629 Whirlpool Power Cord
12W10514169 Whirlpool Nameplate
13SPRING
14W10859468 Whirlpool Screw
15FILTER
16WPW10068250 Whirlpool Dishwasher Screw
