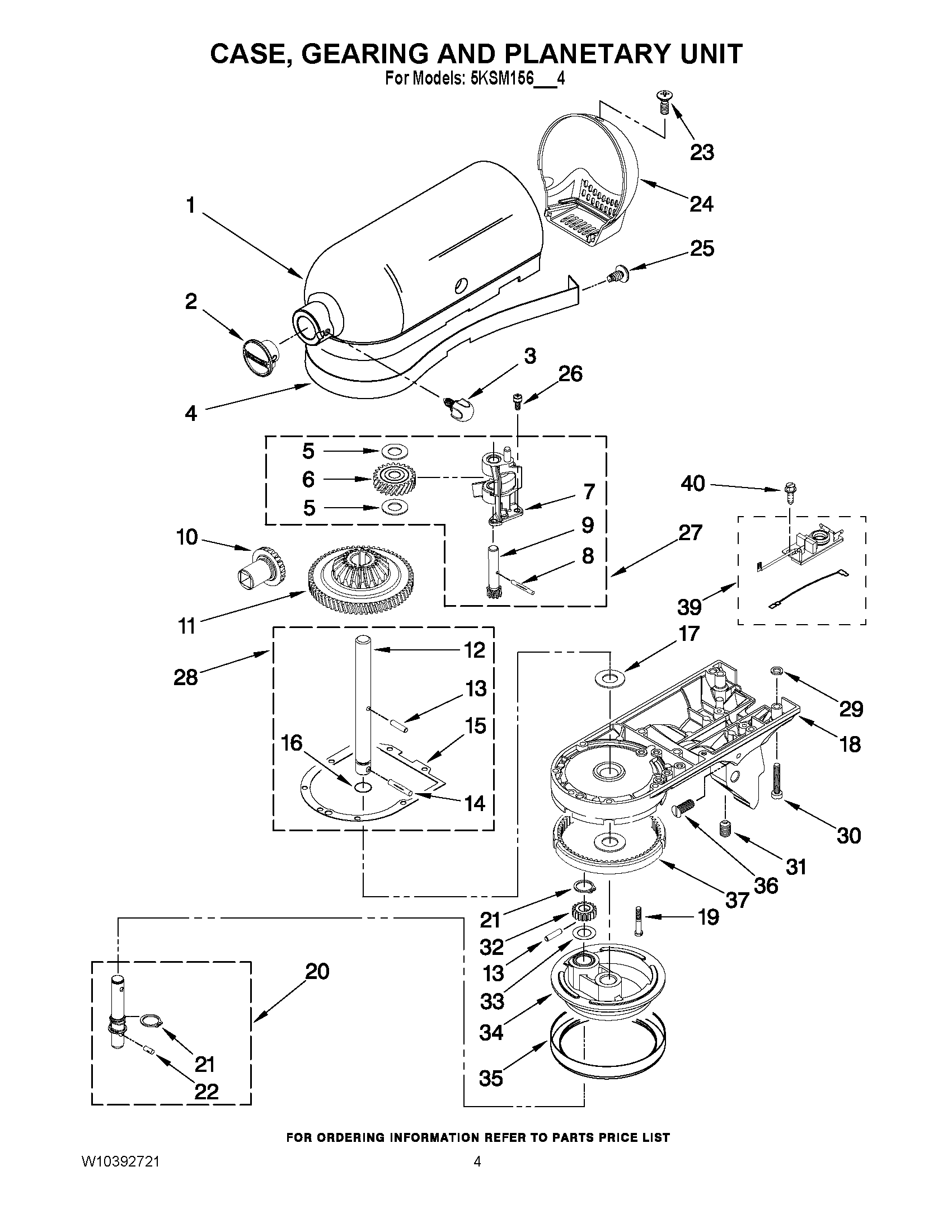

5KSM156ECA4 02 – CASE, GEARING AND PLANETARY UNIT

Products

Position	Product
2	Cap, Attachment Hub
3	W10839419 Whirlpool Screw
3	WP9709194 Whirlpool Black Thumb Screw
5	WPW10323373 Whirlpool Washer
6	WPW10112253 Whirlpool Gear Assembly
7	W11082541 Whirlpool Bearing
8	WP9705444 Whirlpool Pin Groove
9	Shaft & Pinion
10	W11192794 Whirlpool HUB Gear
12	WP240026 Whirlpool Control Shaft
13	Pin (Vertical Center Shaft)
14	WP9705443 Whirlpool Pin Groove
15	WP4162324 Whirlpool Case Gasket
16	O RING
17	WPW10323378 Whirlpool Washer
19	Screw, Special (5)
20	WP243368 Whirlpool Agitator Shaft
21	WP9703438 Whirlpool Snap Retaining Ring
22	W11664709 Whirlpool Groove Pin
23	WP241877 Whirlpool Screw
25	WP313808 Whirlpool Screw
26	W11097298 Whirlpool Dishwasher Screw
27	GEAR, WORM AND BRACKET
28	4160474 Whirlpool Control Shaft
29	WP8533914 Whirlpool Lock
30	WP3400025 Whirlpool Screw
31	WP3400203 Whirlpool Screw
32	W11133645 Whirlpool Pinion Gear
33	WP9706090 Whirlpool Washer
34	CABINET (NOT A SERVICEABLE PART)
35	WP240285 Whirlpool Drip Ring
36	W11028216 Whirlpool Screw
37	W11340106 Whirlpool Gear Assembly
39	4176340 Whirlpool Refrigerator Mixer Filter
40	WP4159193 Whirlpool Screw
