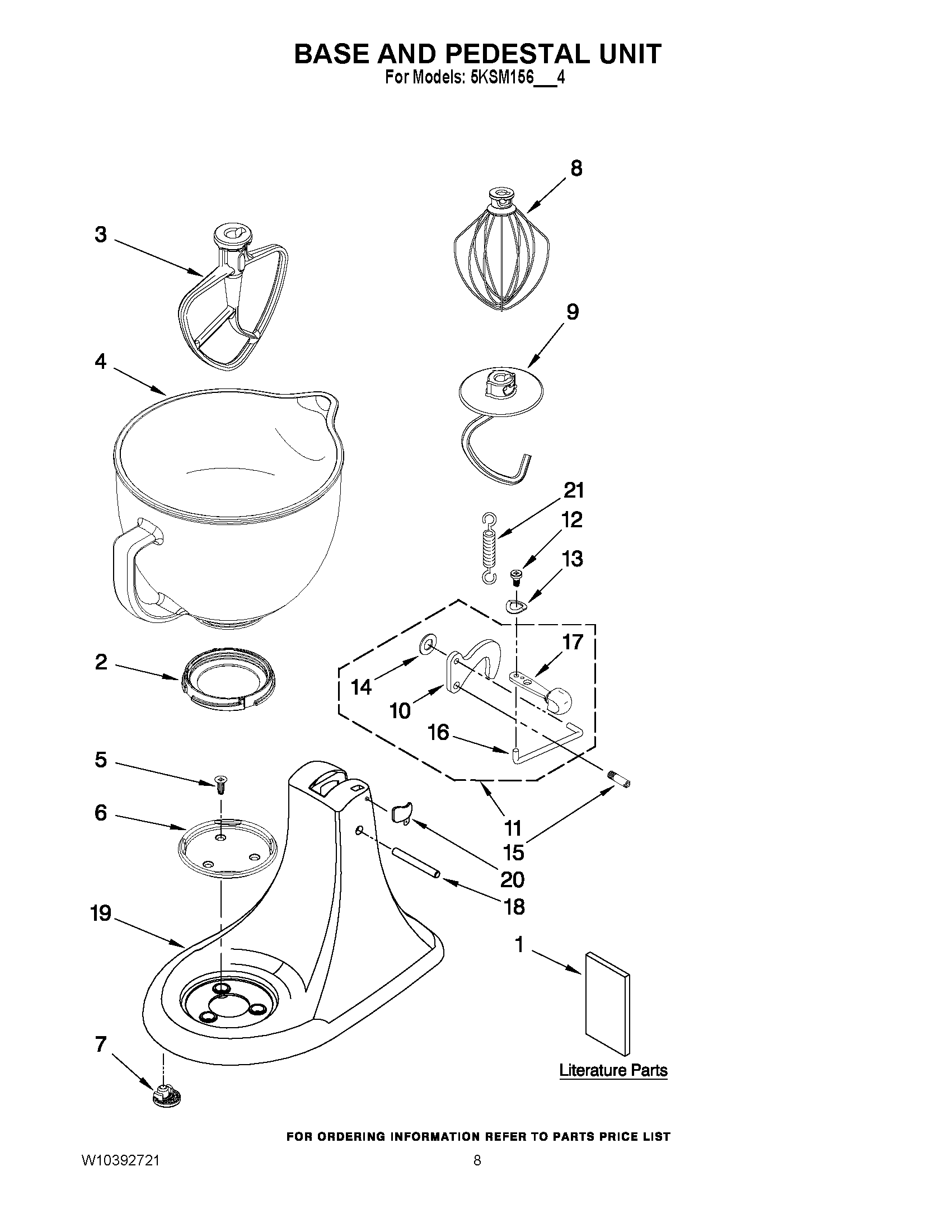

5KSM156EEB4 04 – BASE AND PEDESTAL UNIT

Products

Position	Product
1	REPAIR PARTS LIST
1	Use & Care Guide
2	WPW10220977 Whirlpool Ring
3	WPW10672617 Whirlpool Stand Mixer Flat Beater
4	W11341654 Whirlpool Mixer Bowl
4	WPW10426816 Whirlpool Mixer Bowl
5	SCREW
6	WPW10191926 Whirlpool Cap Screw
7	WP9709707 Whirlpool Foot
8	WP9704329 Whirlpool Wire Whip
9	WPW10674618 Whirlpool Dough Hook
10	W11246352 Whirlpool Latch Mechanism
11	WP3184200 Whirlpool Latch Lever
11	W11416057 Whirlpool Latch Lever
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	W11218705 Whirlpool Washer Assembly
15	103993 Whirlpool Screw
16	W11232016 Whirlpool Latch Link
17	WP9709267 Whirlpool Latch Lever
18	WP16910 Whirlpool Dowel Pin
19	CABINET (NOT A SERVICEABLE PART)
20	WP3184264 Whirlpool Headlock Assembly
21	W11188450 Whirlpool Spring
