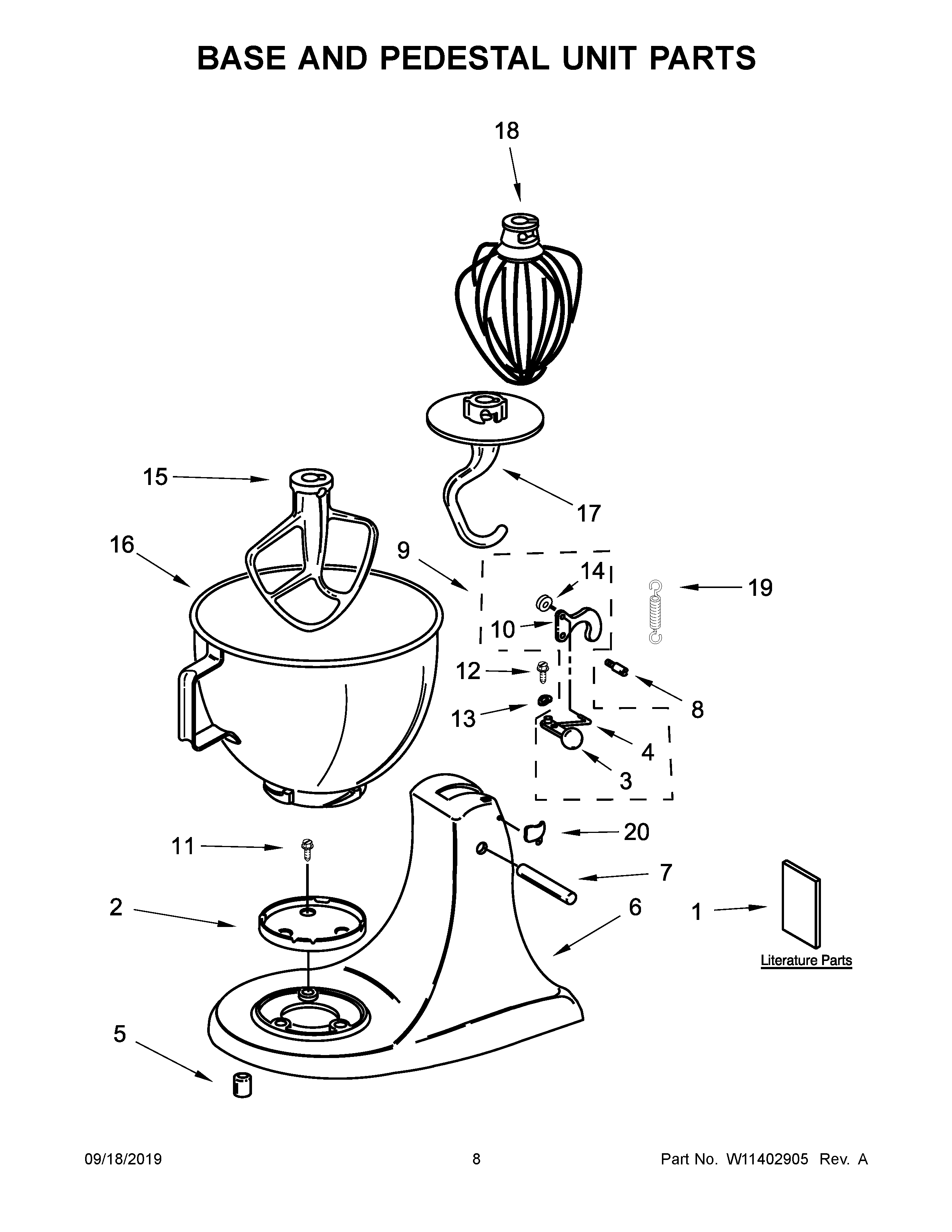

5KSM156HMBLM4 05 – BASE AND PEDESTAL UNIT PARTS

5KSM156HMBLM4 05 – BASE AND PEDESTAL UNIT PARTS

Written by

in

5KSM156HMBLM4 05 – BASE AND PEDESTAL UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2WPW10191926 Whirlpool Cap Screw
3WP9709267 Whirlpool Latch Lever
4W11232016 Whirlpool Latch Link
5WP9709707 Whirlpool Foot
6CABINET (NOT A SERVICEABLE PART)
7WP16910 Whirlpool Dowel Pin
8W10802060 Whirlpool Screw
9WP3184200 Whirlpool Latch Lever
10W11246352 Whirlpool Latch Mechanism
11SCREW
12WP110679 Whirlpool Screw
13WP116241 Whirlpool Washer
14W11218705 Whirlpool Washer Assembly
15WPW10672617 Whirlpool Stand Mixer Flat Beater
16BOWL, 5 QUART – HAMMERED
17WPW10674618 Whirlpool Dough Hook
18WP9704329 Whirlpool Wire Whip
19W11188450 Whirlpool Spring
20WP3184264 Whirlpool Headlock Assembly
