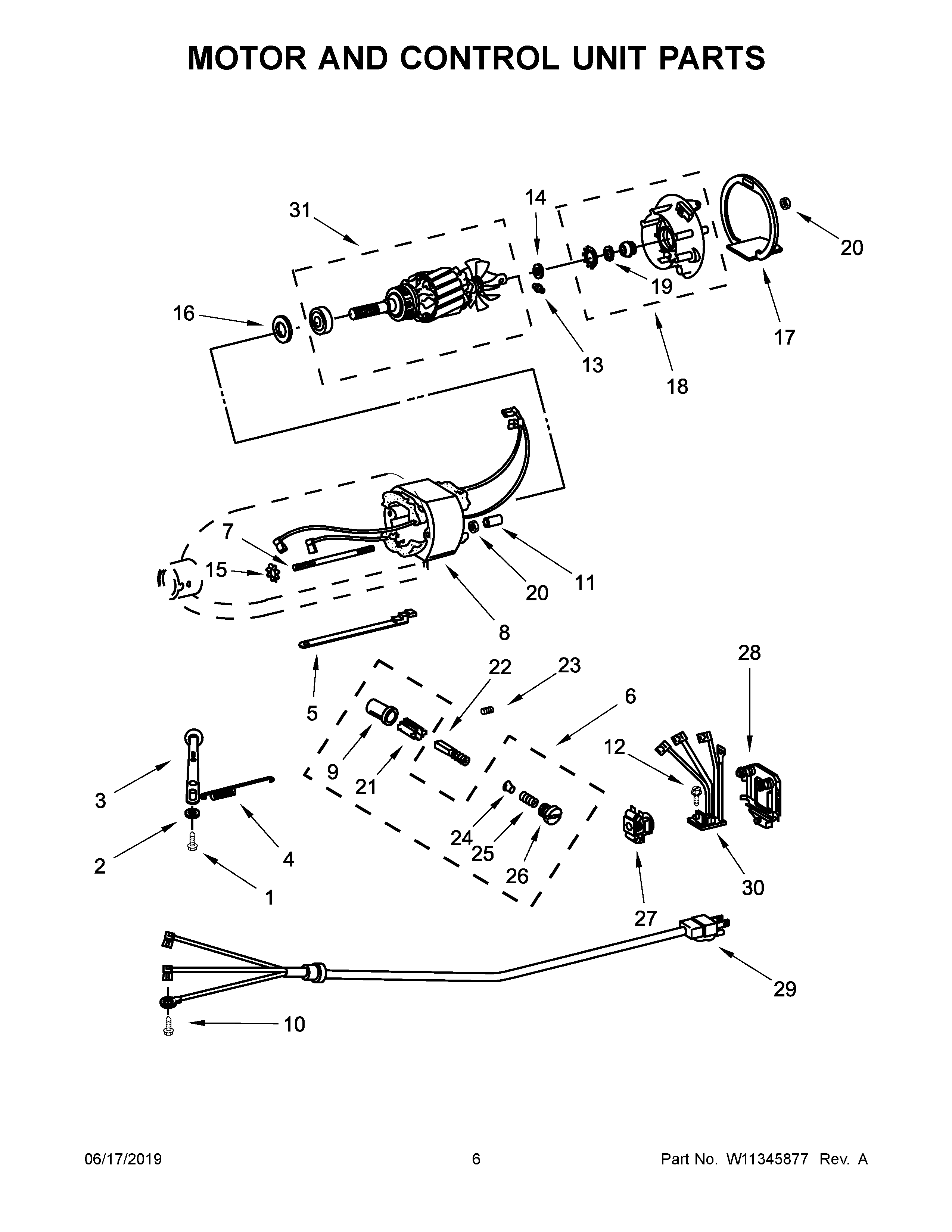

5KSM156HMEMH4 04 – MOTOR AND CONTROL UNIT PARTS

Products

Position	Product
1	WP110679 Whirlpool Screw
2	WP116241 Whirlpool Washer
3	WP9709276 Whirlpool Speed Control Lever
4	WP3183680 Whirlpool Spring
5	W11557271 Whirlpool Link Speed
6	4162546 Whirlpool Brush Holder
7	W10851015 Whirlpool Stat Screw
8	WPW10417246 Whirlpool Field Assembly
9	WP3179908 Whirlpool Brush Holder
10	SCREW
11	W11210996 Whirlpool Sleeve
12	W11084238 Whirlpool Screw Assembly
13	WP16998 Whirlpool Drive Stud
14	W11233557 Whirlpool Washer
15	W11170663 Whirlpool Washer
16	WP9704324 Whirlpool Washer
17	WP240775-1 Whirlpool Endcap Seal
18	WP3180526 Whirlpool Bearing Bracket
19	WASHER
20	WPW10131078 Whirlpool Nut Assembly
21	W11656718 Whirlpool Insert
22	WPW10380496 Whirlpool Stand Mixer Motor Brush
23	W11176201 Whirlpool Screw
24	WP116286 Whirlpool Spring Cap
25	WP116287 Whirlpool Spring Cap
26	WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
27	WPW10330804 Whirlpool Speed Governor
28	WPW10119326 Whirlpool Speed Control
29	W11112762 Whirlpool Power Cord
30	W11174552 Whirlpool Stand Mixer Phase Board
31	W10900799 Whirlpool Armature
