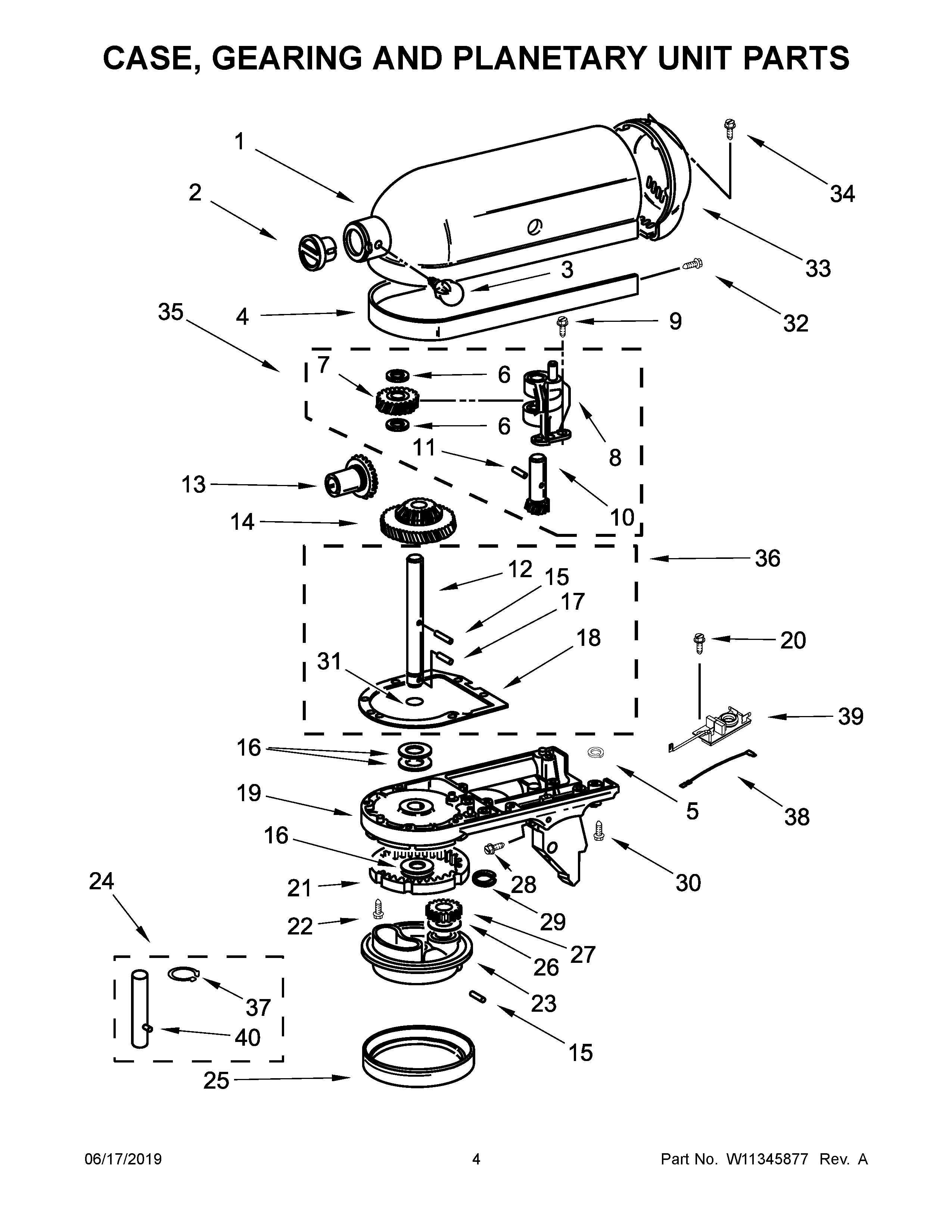

5KSM156HMESA4 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
2	W11048596 Whirlpool Hub Chrome Cap
3	WP9709194 Whirlpool Black Thumb Screw
5	WP8533914 Whirlpool Lock
6	WPW10323373 Whirlpool Washer
7	WPW10112253 Whirlpool Gear Assembly
8	W11082541 Whirlpool Bearing
9	W11097298 Whirlpool Dishwasher Screw
10	Shaft & Pinion
11	WP9705444 Whirlpool Pin Groove
12	WP240026 Whirlpool Control Shaft
14	W11192794 Whirlpool HUB Gear
15	Pin (Vertical Center Shaft)
16	WPW10323378 Whirlpool Washer
17	WP9705443 Whirlpool Pin Groove
18	WP4162324 Whirlpool Case Gasket
20	SCREW
21	W11340106 Whirlpool Gear Assembly
22	W11170598 Whirlpool Screw
24	WP243368 Whirlpool Agitator Shaft
25	WP240285 Whirlpool Drip Ring
26	WP9706090 Whirlpool Washer
27	W11133645 Whirlpool Pinion Gear
28	W11028216 Whirlpool Screw
29	WP3400203 Whirlpool Screw
30	W11173547 Whirlpool Screw
31	O RING
32	WP313808 Whirlpool Screw
33	CABINET (NOT A SERVICEABLE PART)
34	WP241877 Whirlpool Screw
35	GEAR, WORM AND BRACKET
36	4160474 Whirlpool Control Shaft
37	WP9703438 Whirlpool Snap Retaining Ring
38	WPL 9702311
39	4176340 Whirlpool Refrigerator Mixer Filter
40	W11664709 Whirlpool Groove Pin
