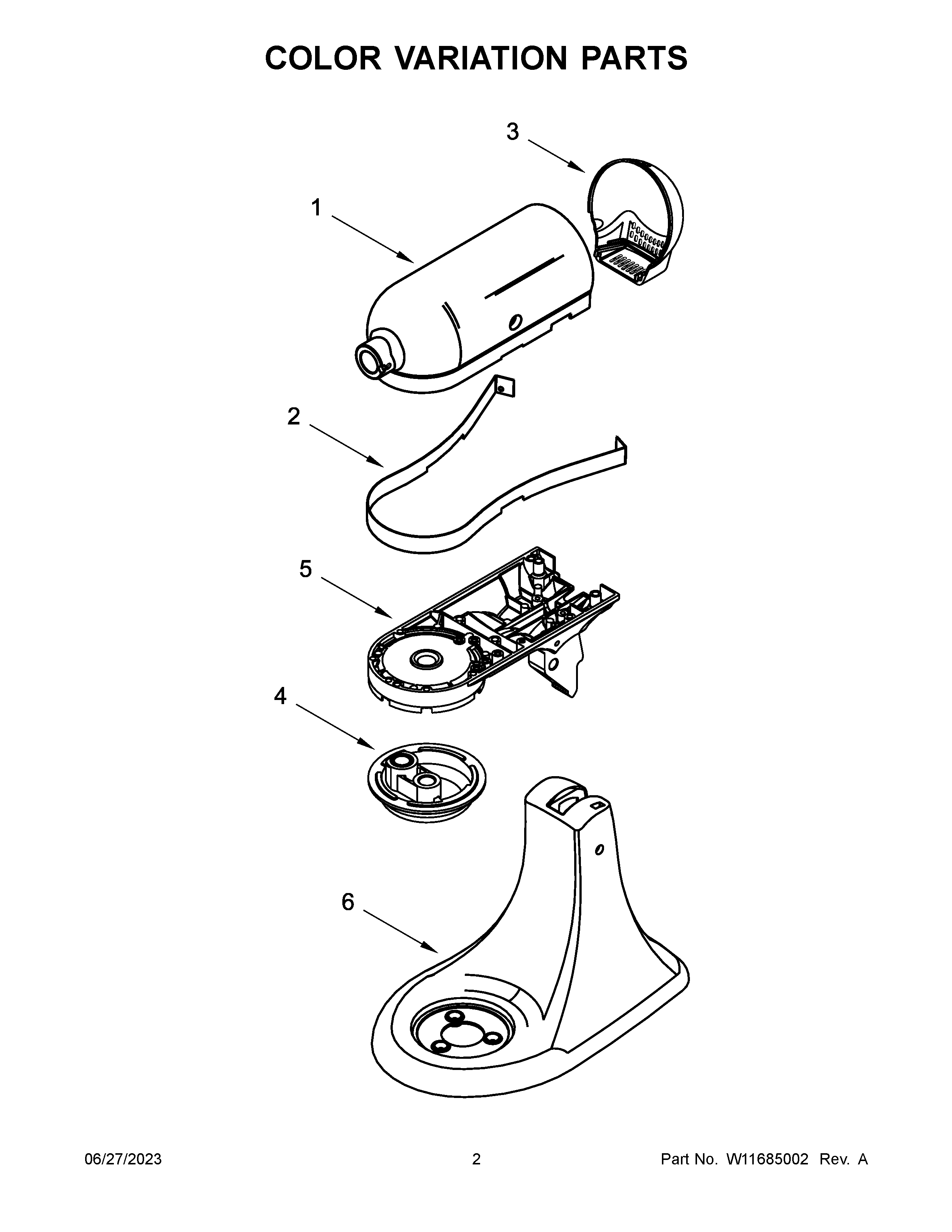

5KSM156QPECA5 02 – COLOR VARIATION PARTS

Written by

Products

Position	Product
1	MOTOR HOUSING (CANDY APPLE RED)
1A	MOTOR HOUSING (PEBBLED PALM)
2	W11188411 Whirlpool Trim Band
3	WPW10239110 Whirlpool Cover
3A	END COVER (PEBBLED PALM)
4	W10239112 Whirlpool Planetary Mixer
4A	PLANETARY (PEBBLED PALM)
5	W10245786 Whirlpool Gearcase
5A	LOWER GEARCASE (PEBBLED PALM)
6A	PEDESTAL (PEBBLED PALM)
6	WPL W10245720
