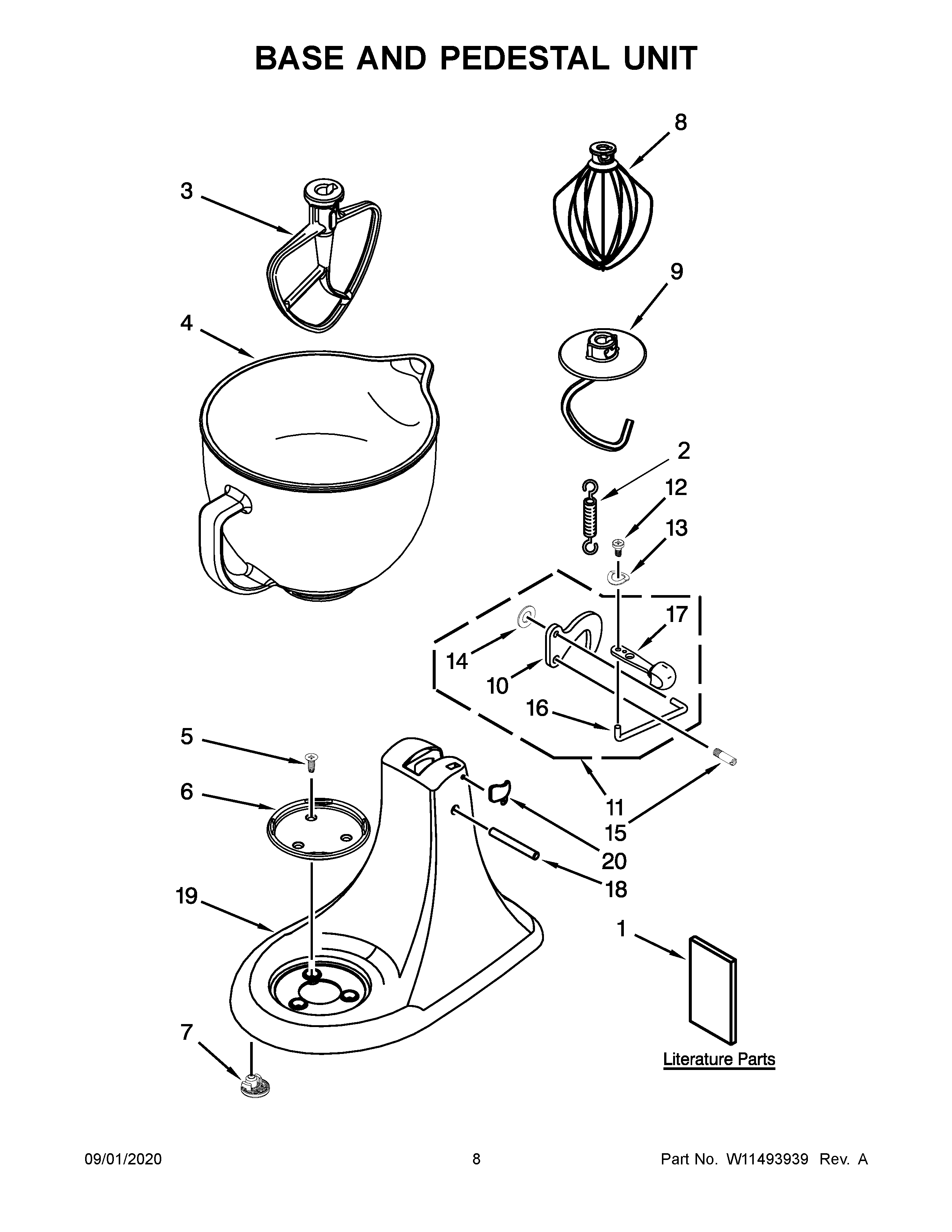

5KSM156QPEPP4 05 – BASE AND PEDESTAL UNIT

Products

Position	Product
1	USE & CARE GUIDE
2	W11188450 Whirlpool Spring
3	WPW10672617 Whirlpool Stand Mixer Flat Beater
4	5QT BOWL - QUILTED
5	SCREW
6	WPW10191926 Whirlpool Cap Screw
7	WP9709707 Whirlpool Foot
8	WP9704329 Whirlpool Wire Whip
9	WPW10674618 Whirlpool Dough Hook
10	W11246352 Whirlpool Latch Mechanism
11	WP3184200 Whirlpool Latch Lever
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	W11218705 Whirlpool Washer Assembly
15	W10802060 Whirlpool Screw
16	W11232016 Whirlpool Latch Link
17	WP9709267 Whirlpool Latch Lever
18	WP16910 Whirlpool Dowel Pin
19	CABINET (NOT A SERVICEABLE PART)
20	WP3184264 Whirlpool Headlock Assembly
