5KSM170ABK0 02 – COLOR VARIATION PARTS

5KSM170ABK0 02 – COLOR VARIATION PARTS

Written by

in

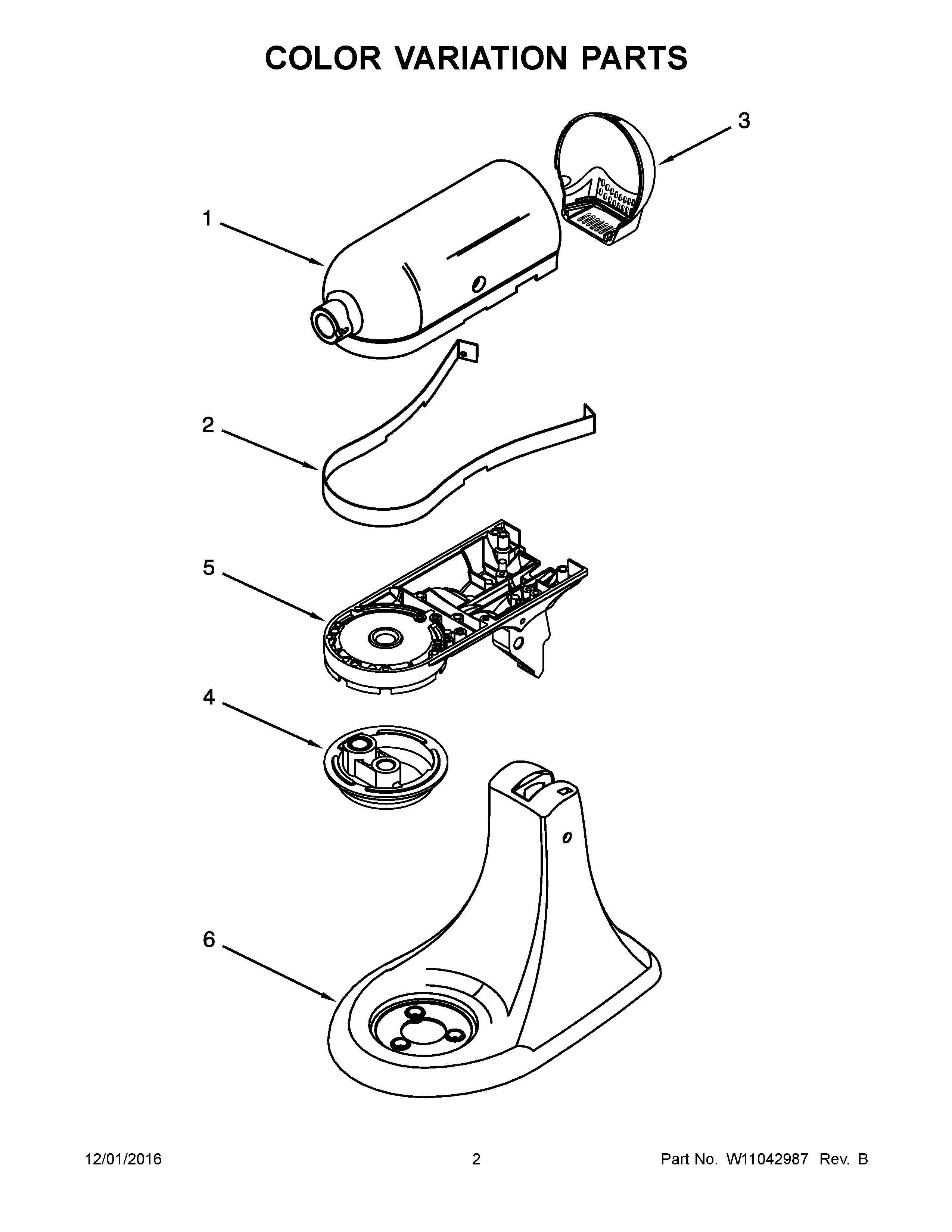

5KSM170ABK0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1FMOTOR HOUSING (PLUMBERRY)
1HMOTOR HOUSING (RASPBERRY ICE)
1W10607824 Whirlpool Housing
1IMOTOR HOUSING (SEA GLASS)
1LMOTOR HOUSING (BLUEBERRY)
1JMOTOR HOUSING (SUGAR PEARL SILVER)
1EWPW10444230 Whirlpool Housing
1CW10239115 Whirlpool Housing
1GW10513207 Whirlpool Housing
1AMOTOR HOUSING (BLACK STORM)
1B9704790 Whirlpool Housing
1DMOTOR HOUSING (FROSTED PEARL)
1KMOTOR HOUSING (TOFFEE)
2W11230105 Whirlpool Trim Band
3KW10564337 Whirlpool Cover
3IEND COVER (SEA GLASS)
3GW10512234 Whirlpool Cover
3DW10477198 Whirlpool Cover Assembly
3AEND COVER (BLACK STORM)
3W10607811 Whirlpool Cover
3HW10384429 Whirlpool Cover
3B9704805 Whirlpool Cover Assembly
3CWPW10239110 Whirlpool Cover
3EWPW10435298 Whirlpool Cover
3LW10564336 Whirlpool Cover Assembly
3JW10342507 Whirlpool Cover Assembly
3FW10572183 Whirlpool Cover
4DPLANETARY (FROSTED PEARL)
4KWPL W10564343
4JPLANETARY (SUGAR PEARL SILVER)
4APLANETARY (BLACK STORM)
4W10607813 Whirlpool Planetary Gear
4EWPW10444039 Whirlpool Planetary Mixer
4FWPL W10572188
4LWPL W10564342
4HWPL W10384425
4GWPL W10512355
4IPLANETARY (SEA GLASS)
4CW10239112 Whirlpool Planetary Mixer
4B9704797 Whirlpool Planetary Mixing
5WPL W10607815
5KWPL W10564349
5AWPL W10382395
5JWPL W10342534
5DWPL W10477200
5FWPL W10572192
5LW10564348 Whirlpool Gearcase
5ILOWER GEARCASE (SEA GLASS)
5BLOWER GEARCASE (IMPERIAL BLACK)
5HWPL W10384415
5GWPL W10513075
5EWPW10444068 Whirlpool Gearcase Assembly
5CW10245786 Whirlpool Gearcase
6LWPL W10639777
6FWPL W10638037
6DWPL W10477199
6AWPL W10382325
6HW10384370 Whirlpool Pedestal
6BWPL W10648651
6CWPL W10245720
6GWPL W10638035
6EWPW10444067 Whirlpool Pedestal
6IPEDESTAL WITH FEET AND HEADLOCK (SEA GLASS)
6KW10638038 Whirlpool Pedestal
6JWPW10349273 Whirlpool Pedestal
6WPL W10638032
