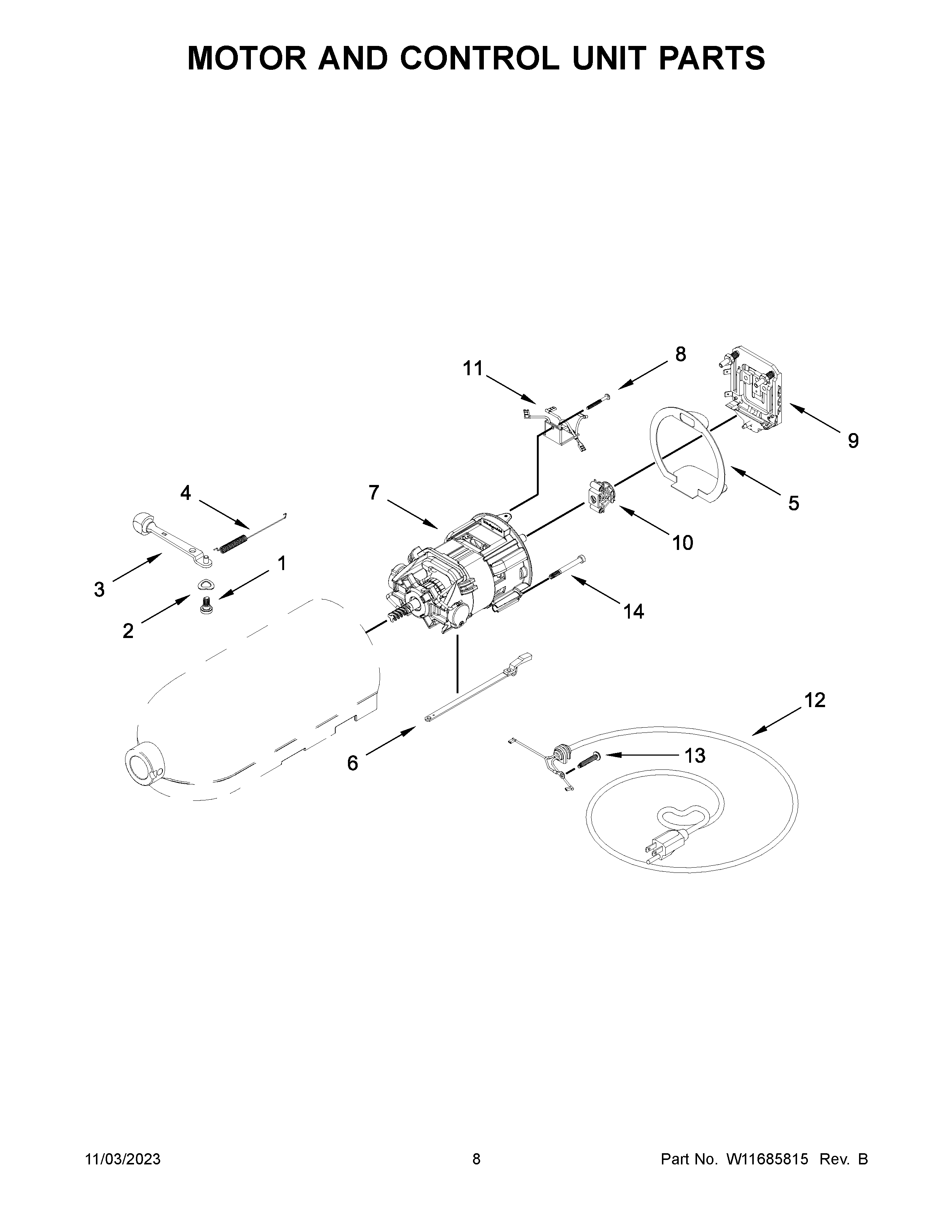

5KSM175PSBIC5 05 – MOTOR AND CONTROL UNIT PARTS

5KSM175PSBIC5 05 – MOTOR AND CONTROL UNIT PARTS

Written by

in

5KSM175PSBIC5 05 – MOTOR AND CONTROL UNIT PARTS

Products

PositionProduct
1SCREW
2WP116241 Whirlpool Washer
3WP9709276 Whirlpool Speed Control Lever
4WP3183680 Whirlpool Spring
5SEAL, END
6W11557271 Whirlpool Link Speed
7MOTOR ASSEMBLY
8W11084238 Whirlpool Screw Assembly
9WPW10119326 Whirlpool Speed Control
10WPW10330804 Whirlpool Speed Governor
11W11174552 Whirlpool Stand Mixer Phase Board
12CORD, POWER (BLACK (UNITED KINGDOM))
13W10914506 Whirlpool Screw
14SCREW, MOTOR MOUNTING
