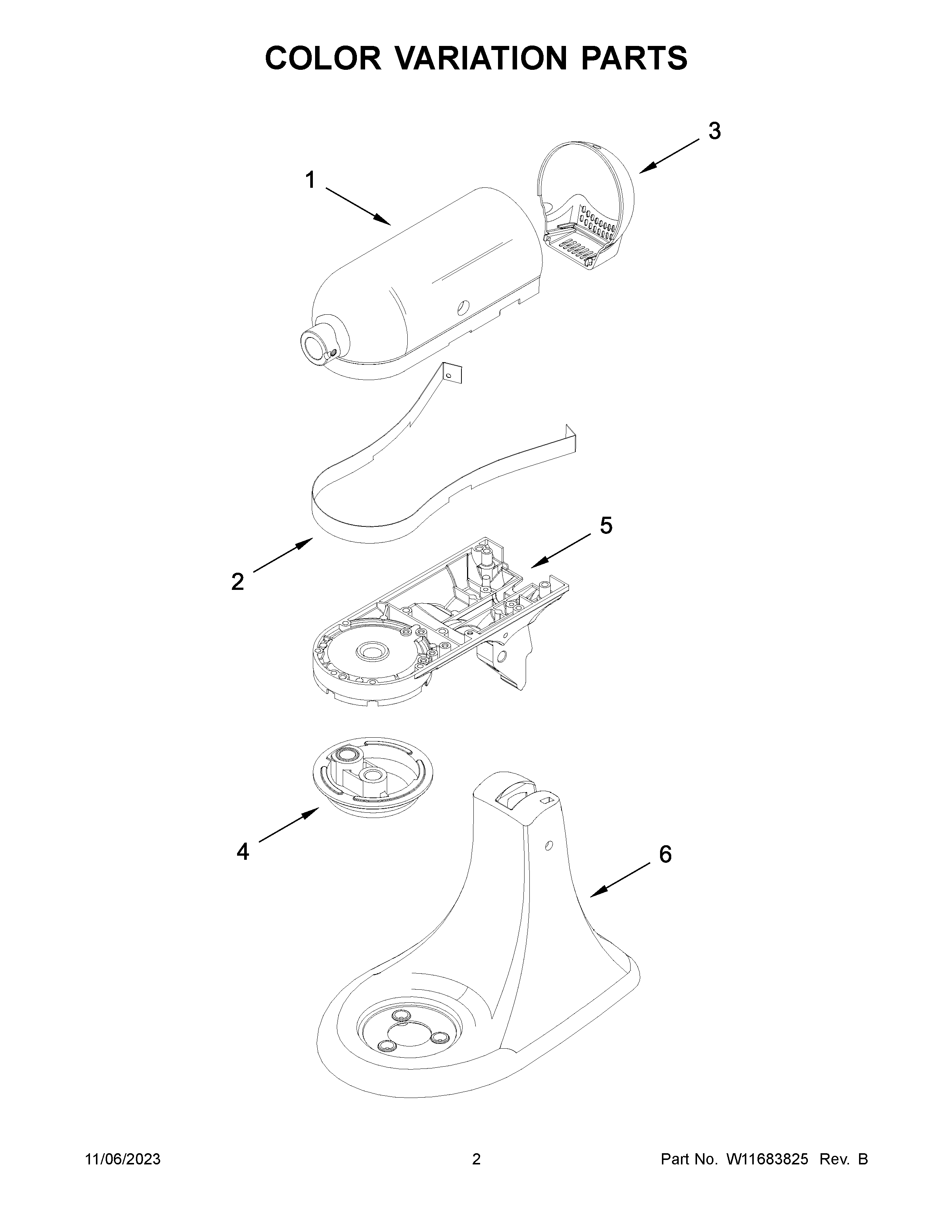

5KSM175PSEHY5 02 – COLOR VARIATION PARTS

5KSM175PSEHY5 02 – COLOR VARIATION PARTS

Written by

in

5KSM175PSEHY5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1NMOTOR HOUSING (ONYX BLACK)
1JMOTOR HOUSING (JUNIPER)
1OMOTOR HOUSING (PISTACHIO)
1BMOTOR HOUSING (CANDY APPLE RED)
1CMOTOR HOUSING (CONTOUR SILVER)
1DMOTOR HOUSING (MATTE DRIED ROSE)
1IMOTOR HOUSING (ICE)
1EMOTOR HOUSING (EMPIRE RED)
1AMOTOR HOUSING (CAST IRON/IMPERIAL BLACK)
1PMOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE)
1QMOTOR HOUSING (WHITE)
1W11605627 Whirlpool Housing
1MMOTOR HOUSING (MAJESTIC YELLOW)
1LMOTOR HOUSING (MEDALLION SILVER)
1KMOTOR HOUSING (MATCHA)
1HMOTOR HOUSING (INK BLUE)
1GMOTOR HOUSING (HONEY)
1FMOTOR HOUSING (MATTE FRESH LINEN)
2W11188411 Whirlpool Trim Band
3O9706841 Whirlpool Cover
3BWPW10239110 Whirlpool Cover
3JEND COVER (JUNIPER)
3LWPW10435298 Whirlpool Cover
3HWPL W11113833
3FWPL W11209458
3KWPL W11431671
3GWPL W11485686
3A9704805 Whirlpool Cover Assembly
3PE
3MEND COVER (MAJESTIC YELLOW)
3EEND COVER (EMPIRE RED)
3DEND COVER (MATTE DRIED ROSE)
3QEND COVER-White
3NEND COVER (ONYX BLACK)
3I9707667 Whirlpool Cover
3CW10350456 Whirlpool Cover Assembly
3End Cover (Almond Creme)
4CW10350465 Whirlpool Planetary Mixer
4KWPL W11431678
4QPLANETARY-White
4BW10239112 Whirlpool Planetary Mixer
4JPLANETARY (JUNIPER)
4LWPW10444039 Whirlpool Planetary Mixer
4MPLANETARY (MAJESTIC YELLOW)
4EPLANETARY (EMPIRE RED)
4FWPL W11209453
4GWPL W11485717
4HWPL W11113890
4NPLANETARY-Onyx Black
4Planetary (Almond Creme)
4DWPL W11209496
4A9704797 Whirlpool Planetary Mixing
4I9707665 Whirlpool Planetary Mixer
4PWPL W11209470
4OPLANETARY (PISTACHIO)
5EWPL 24035091
5PW11209465 Whirlpool Gearcase
5DWPL W11209493
5MWPL 24035093
5GWPL W11485689
5LOWER GEARCASE (ALMOND CREME)
5QLOWER GEARCASE-White
5KWPL W11431681
5IWPL 9708868
5HWPL W11113862
5FWPL W11209451
5NLOWER GEARCASE (ONYX BLACK)
5BW10245786 Whirlpool Gearcase
5O9706832 Whirlpool Gearcase
5ALOWER GEARCASE (IMPERIAL BLACK)
5CLOWER GEARCASE (CONTOUR SILVER)
5JWPL W11684969
5LWPW10444068 Whirlpool Gearcase Assembly
6EWPL 3184280
6LWPW10444067 Whirlpool Pedestal
6KWPL W11431676
6JWPL W11684979
6HWPL W11269286
6GWPL W11485777
6FWPL W11209449
6BWPL W10245720
6AWPL W10648651
6WPL 9705577
6CPEDESTAL (CONTOUR SILVER)
6MWPL 3184281
6DWPL W11209491
6NPEDESTAL & FOOT (ONYX BLACK)
6PWPL W11209463
6I9708865 Whirlpool Pedestal
6QWP3184273 Whirlpool Pedestal
6OWPL 9709637
