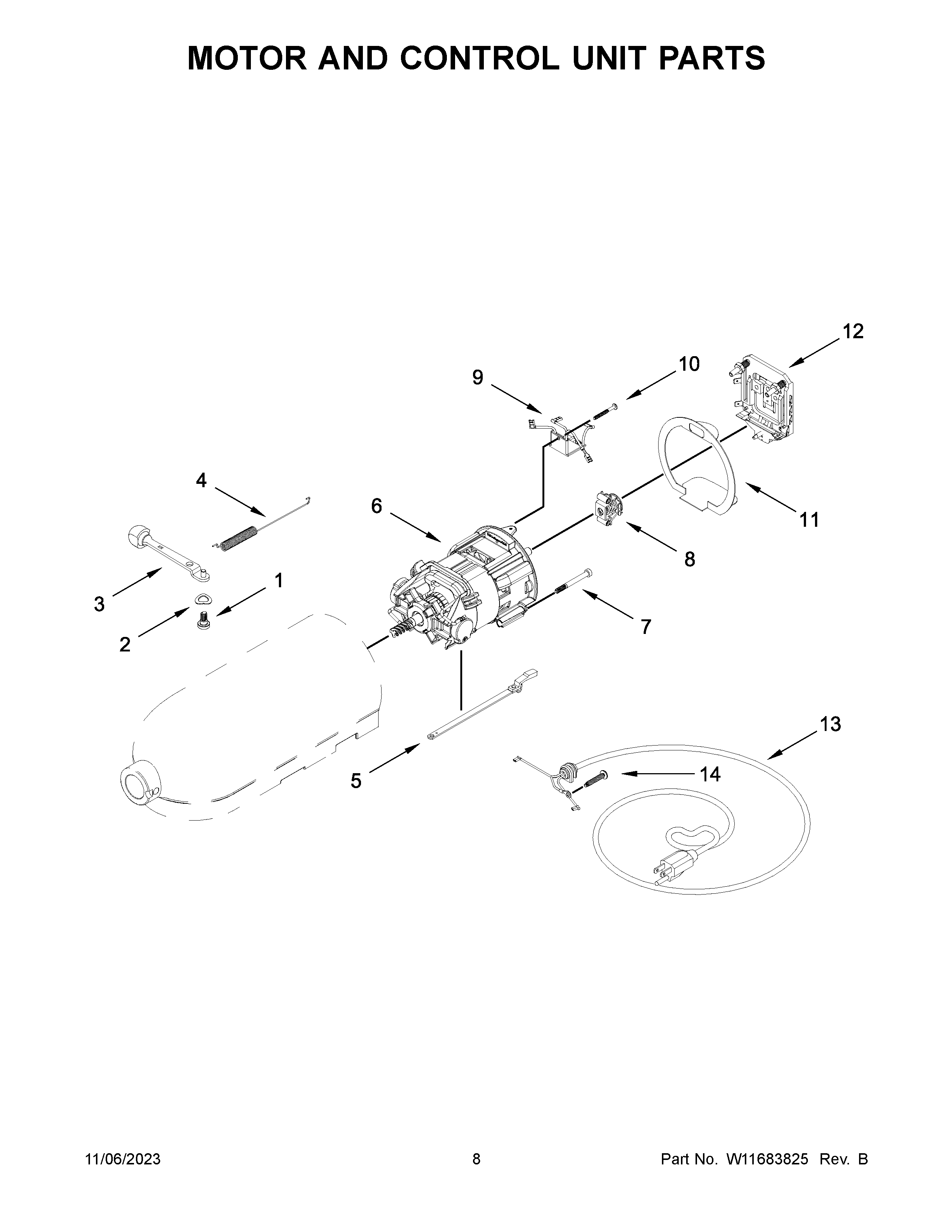

5KSM175PSEIB5 05 – MOTOR AND CONTROL UNIT PARTS

Products

Position	Product
1	SCREW
2	WP116241 Whirlpool Washer
3	WP9709276 Whirlpool Speed Control Lever
4	WP3183680 Whirlpool Spring
5	W11557271 Whirlpool Link Speed
6	MOTOR ASSEMBLY
7	SCREW, MOTOR MOUNTING
8	WPW10330804 Whirlpool Speed Governor
9	W11174552 Whirlpool Stand Mixer Phase Board
10	W11084238 Whirlpool Screw Assembly
11	SEAL, END
12	WPW10119326 Whirlpool Speed Control
13	CORD, POWER (BLACK)
13A	CORD, POWER (WHITE)
14	W10914506 Whirlpool Screw
