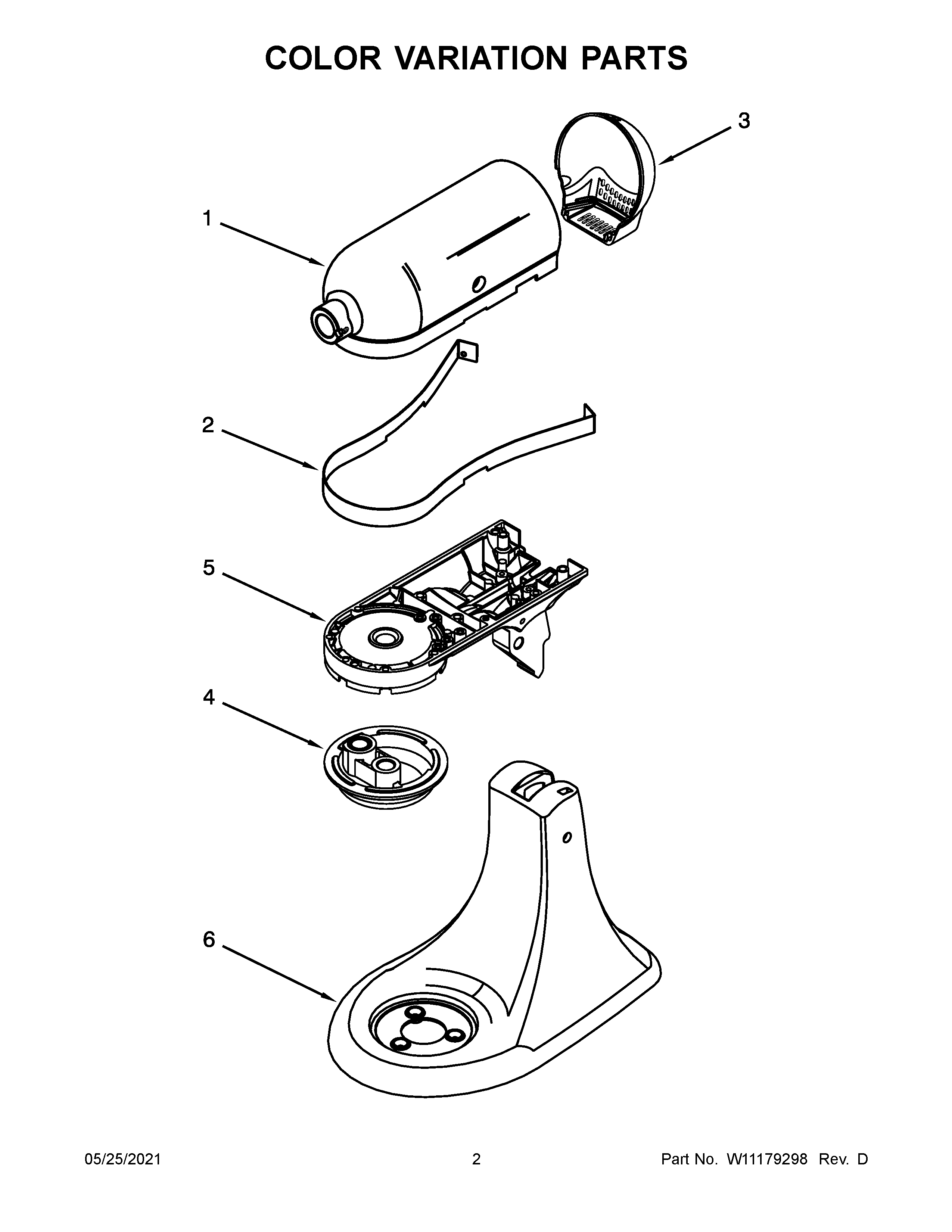

5KSM175PSIBY4 02 – COLOR VARIATION PARTS

5KSM175PSIBY4 02 – COLOR VARIATION PARTS

Written by

in

5KSM175PSIBY4 02 – COLOR VARIATION PARTS

Products

PositionProduct
1BMOTOR HOUSING (CRANBERRY/FLAMINGO)
1CMOTOR HOUSING (CRYSTAL BLUE)
1E9707662 Whirlpool Housing
1FWPW10444230 Whirlpool Housing
1AW10239115 Whirlpool Housing
1LMOTOR HOUSING (MATTE FRESH LINEN)
1KW10350463 Whirlpool Housing
1GMOTOR HOUSING (PLUMBERRY)
1NMotor Housing (Onyx Black)
1DMOTOR HOUSING (GREEN APPLE)
1IMOTOR HOUSING (SILK PINK)
1HMOTOR HOUSING (PISTACHIO)
1MOTOR HOUSING (BOYSENBERRY)
1JMotor Housing (White)
1MMotor Housing (Almond Creme)
2W11188411 Whirlpool Trim Band
3FWPW10435298 Whirlpool Cover
3W10140796 Whirlpool Cover
3E9707667 Whirlpool Cover
3B9706801 Whirlpool Cover
3CEND COVER (CRYSTAL BLUE)
3D9709683 Whirlpool Cover
3JEND COVER-White
3MEnd Cover (Almond Creme)
3H9706841 Whirlpool Cover
3AWPW10239110 Whirlpool Cover
3NEND COVER (ONYX BLACK)
3IWPL W10869927
3KW10350456 Whirlpool Cover Assembly
3LWPL W11209458
3GW10572183 Whirlpool Cover
4HPLANETARY (PISTACHIO)
4LWPL W11209453
4PLANETARY (BOYSENBERRY)
4IWPL W10869924
4AW10239112 Whirlpool Planetary Mixer
4FWPW10444039 Whirlpool Planetary Mixer
4GWPL W10572188
4MPlanetary (Almond Creme)
4BWPL 9706799
4JPLANETARY-White
4NPLANETARY-Onyx Black
4KW10350465 Whirlpool Planetary Mixer
4CW10476794 Whirlpool Planetary Mixer
4D9709685 Whirlpool Planetary Assembly
4E9707665 Whirlpool Planetary Mixer
5LOWER GEARCASE (BOYSENBERRY)
5MLOWER GEARCASE (ALMOND CREME)
5LWPL W11209451
5IWPL W10869920
5NLOWER GEARCASE (ONYX BLACK)
5H9706832 Whirlpool Gearcase
5KLOWER GEARCASE (CONTOUR SILVER)
5GWPL W10572192
5FWPW10444068 Whirlpool Gearcase Assembly
5EWPL 9708868
5D9709691 Whirlpool Gearcase
5CW10476775 Whirlpool Gearcase
5B9706792 Whirlpool Gearcase
5AW10245786 Whirlpool Gearcase
5JLOWER GEARCASE-White
6FWPW10444067 Whirlpool Pedestal
6HWPL 9709637
6DW10128411 Whirlpool Pedestal
6GWPL W10638037
6WPL W10189051
6LWPL W11209449
6AWPL W10245720
6MWPL 9705577
6JWP3184273 Whirlpool Pedestal
6NPEDESTAL & FOOT (ONYX BLACK)
6KPEDESTAL (CONTOUR SILVER)
6E9708865 Whirlpool Pedestal
6BWPL W10310011
6CWPL W10476774
6IW10869917 Whirlpool Pedestal
