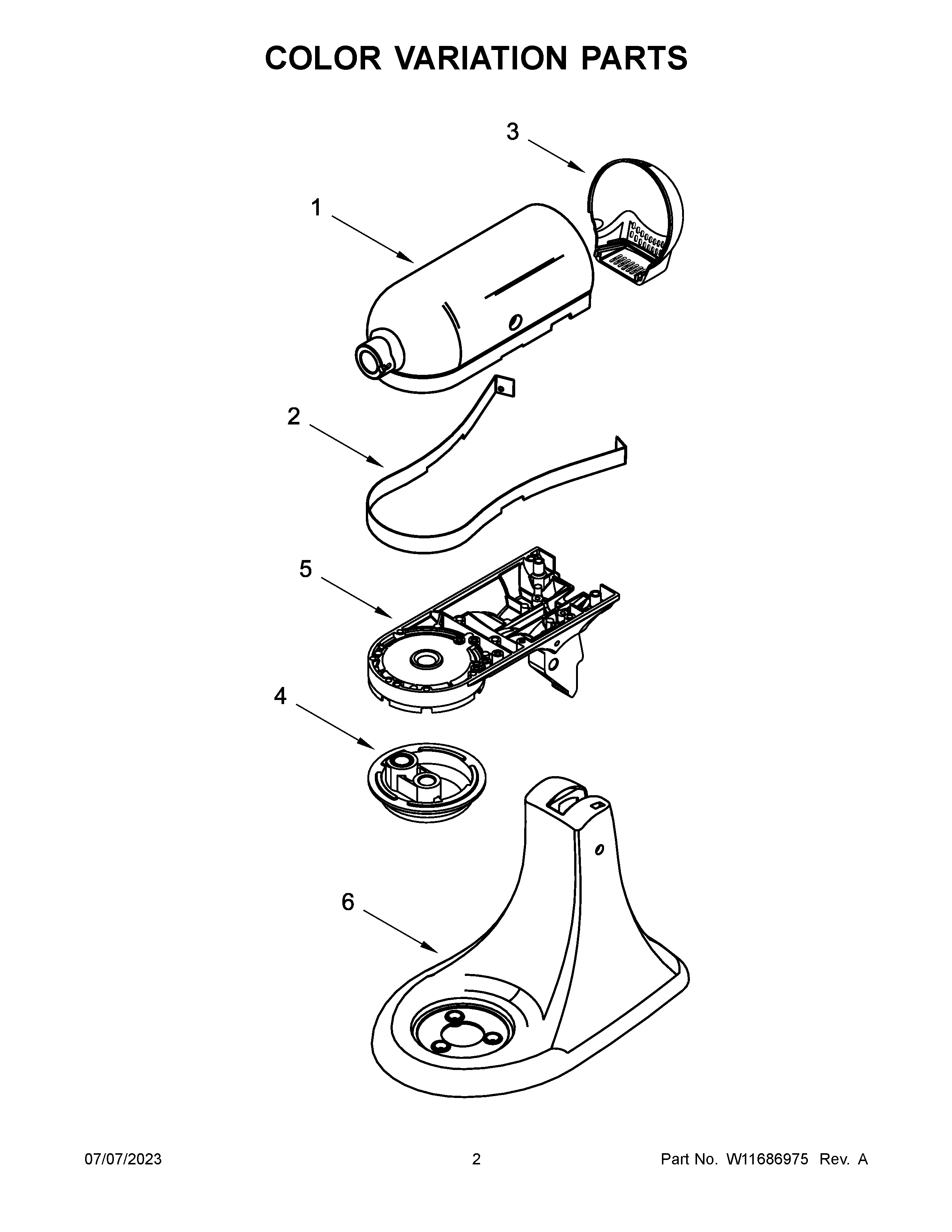

5KSM175PSIPT5 02 – COLOR VARIATION PARTS

Products

Position	Product
1D	MOTOR HOUSING (MEDALLION SILVER)
1B	MOTOR HOUSING (CONTOUR SILVER)
1E	MOTOR HOUSING (ONYX BLACK)
1G	MOTOR HOUSING (WHITE)
1F	MOTOR HOUSING (PISTACHIO)
1A	MOTOR HOUSING (CAST IRON/IMPERIAL BLACK)
1	W11605627 Whirlpool Housing
1C	MOTOR HOUSING (MATTE FRESH LINEN)
2	W11188411 Whirlpool Trim Band
3D	WPW10435298 Whirlpool Cover
3C	WPL W11209458
3E	END COVER (ONYX BLACK)
3A	9704805 Whirlpool Cover Assembly
3F	9706841 Whirlpool Cover
3B	W10350456 Whirlpool Cover Assembly
3	End Cover (Almond Creme)
3G	END COVER-White
4B	W10350465 Whirlpool Planetary Mixer
4D	WPW10444039 Whirlpool Planetary Mixer
4G	PLANETARY-White
4C	WPL W11209453
4F	PLANETARY (PISTACHIO)
4	Planetary (Almond Creme)
4E	PLANETARY-Onyx Black
4A	9704797 Whirlpool Planetary Mixing
5C	WPL W11209451
5A	LOWER GEARCASE (IMPERIAL BLACK)
5E	LOWER GEARCASE (ONYX BLACK)
5G	LOWER GEARCASE-White
5D	WPW10444068 Whirlpool Gearcase Assembly
5B	LOWER GEARCASE (CONTOUR SILVER)
5F	9706832 Whirlpool Gearcase
5	LOWER GEARCASE (ALMOND CREME)
6D	WPW10444067 Whirlpool Pedestal
6C	WPL W11209449
6A	WPL W10648651
6	WPL 9705577
6B	PEDESTAL (CONTOUR SILVER)
6E	PEDESTAL & FOOT (ONYX BLACK)
6G	WP3184273 Whirlpool Pedestal
6F	WPL 9709637
