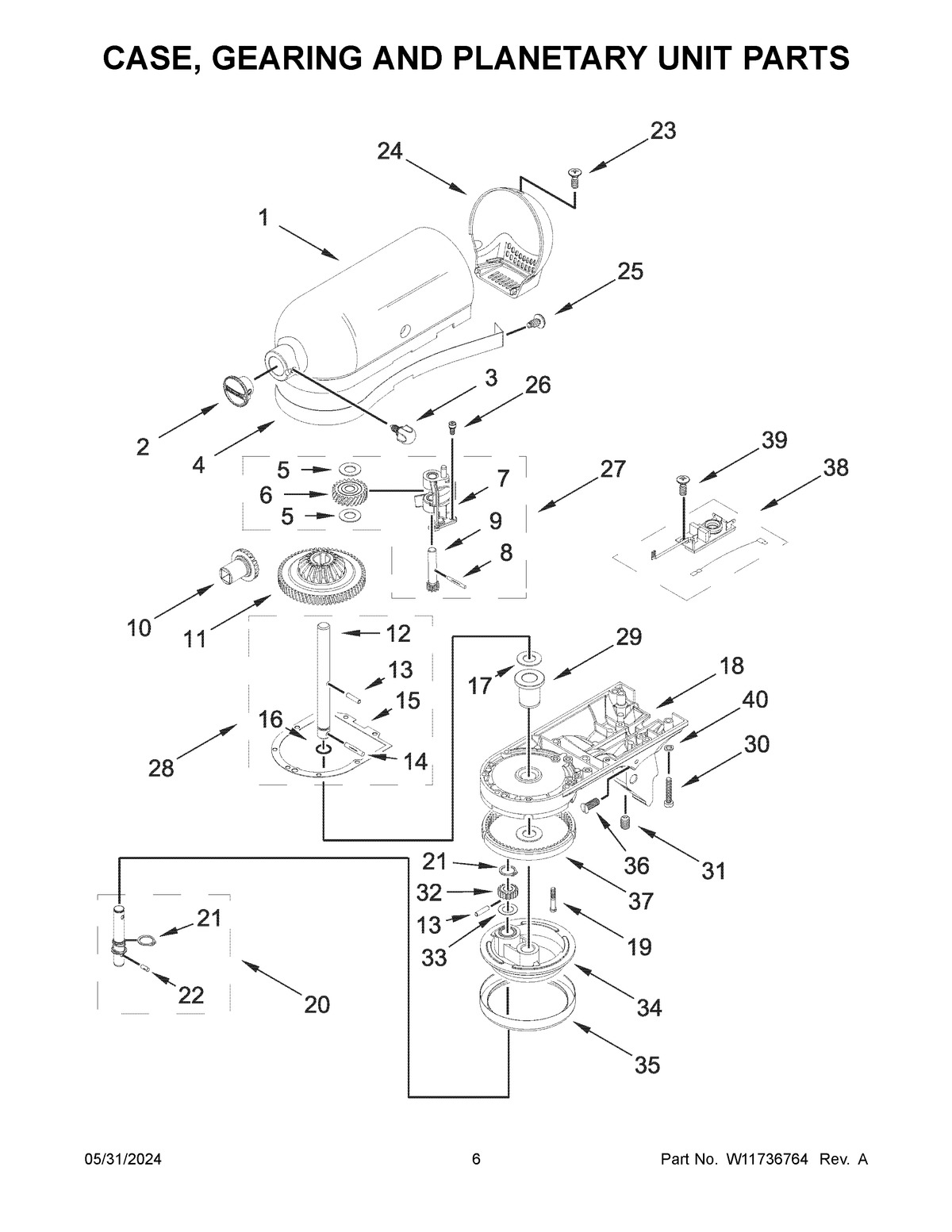

5KSM175PSSCU5 04 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
1	GEARCASE MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE)
2	W11048596 Whirlpool Hub Chrome Cap
3	WP9709194 Whirlpool Black Thumb Screw
4	BAND, TRIM (REFER TO COLOR VARIATION PARTS PAGE)
5	WPW10323373 Whirlpool Washer
6	WPW10112253 Whirlpool Gear Assembly
7	W11082541 Whirlpool Bearing
8	WP9705444 Whirlpool Pin Groove
9	Shaft & Pinion
11	W11192794 Whirlpool HUB Gear
12	WP240026 Whirlpool Control Shaft
13	Pin (Vertical Center Shaft)
14	WP9705443 Whirlpool Pin Groove
15	GASKET, TRANSMISSION
16	O RING
17	WPW10323378 Whirlpool Washer
18	LOWER GEAR CASE (REFER TO COLOR VARIATION PARTS PAGE)
19	W11170598 Whirlpool Screw
20	WP243368 Whirlpool Agitator Shaft
21	WP9703438 Whirlpool Snap Retaining Ring
22	W11664709 Whirlpool Groove Pin
23	WP241877 Whirlpool Screw
24	COVER, END (REFER TO COLOR VARIATION PARTS PAGE)
25	W10853069 Whirlpool Screw
26	W11097298 Whirlpool Dishwasher Screw
27	GEAR, WORM AND BRACKET
28	4160474 Whirlpool Control Shaft
29	WP16897 Whirlpool Bearing
30	W11173547 Whirlpool Screw
31	WP3400203 Whirlpool Screw
32	W11133645 Whirlpool Pinion Gear
33	WP9706090 Whirlpool Washer
34	PLANETARY (REFER TO COLOR VARIATION PARTS PAGE)
35	WP240285 Whirlpool Drip Ring
36	W11028216 Whirlpool Screw
37	W11340106 Whirlpool Gear Assembly
38	4176340 Whirlpool Refrigerator Mixer Filter
39	SCREW
40	WP8533914 Whirlpool Lock
