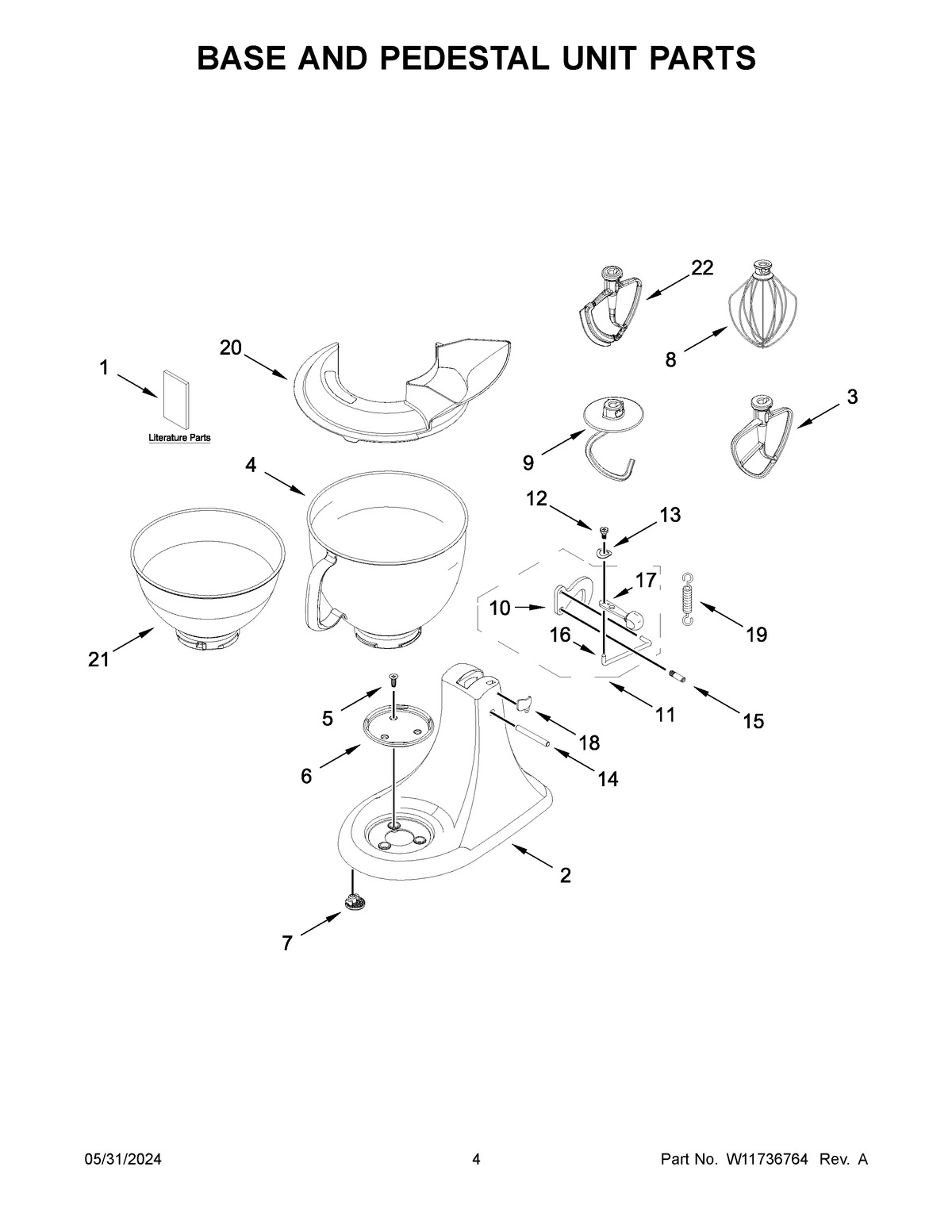

5KSM175PSSER5 03 – BASE AND PEDESTAL UNIT PARTS

5KSM175PSSER5 03 – BASE AND PEDESTAL UNIT PARTS

Written by

in

5KSM175PSSER5 03 – BASE AND PEDESTAL UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE)
3WPW10672617 Whirlpool Stand Mixer Flat Beater
4W11324096 Whirlpool Mixer Bowl
5SCREW
6WPW10191926 Whirlpool Cap Screw
7FOOT
8WP9704329 Whirlpool Wire Whip
9WPW10674618 Whirlpool Dough Hook
10W11246352 Whirlpool Latch Mechanism
11WP3184200 Whirlpool Latch Lever
12WP110679 Whirlpool Screw
13WP116241 Whirlpool Washer
14WP16910 Whirlpool Dowel Pin
15W10802060 Whirlpool Screw
16W11232016 Whirlpool Latch Link
17WP9709267 Whirlpool Latch Lever
18WP3184264 Whirlpool Headlock Assembly
19W11188450 Whirlpool Spring
20W11573560 Whirlpool Pour Shelf
21BOWL, 3 QUART
22W10917788 Whirlpool Mixer Beater
