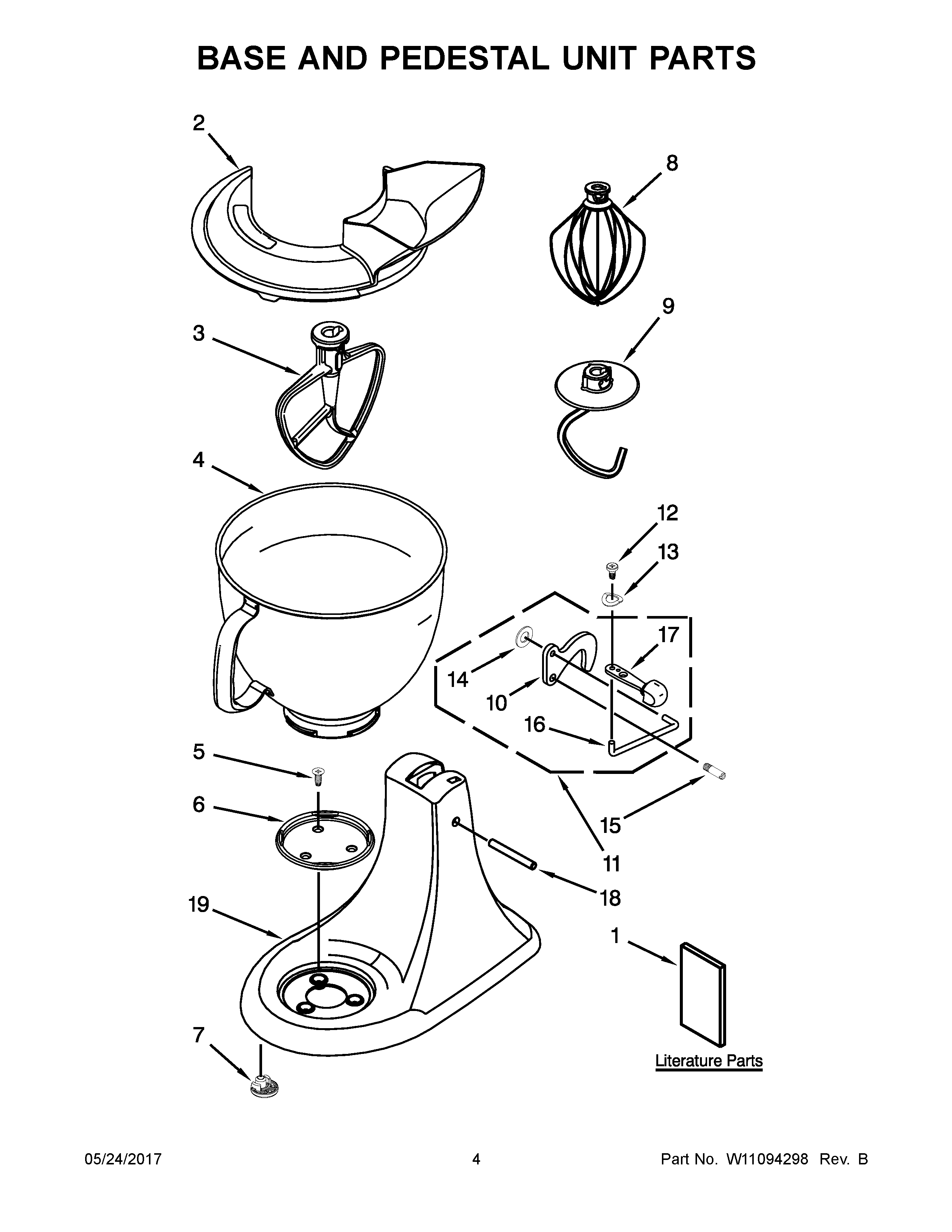

5KSM180LEABK0 03 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
1	Use & Care, Trilin
1B	USE & CARE GUIDE (UNITED KINGDOM/EUROPE)
1A	USE & CARE GUIDE (AUSTRALIA)
2	W11312468 Whirlpool Pour Shelf
3	W11094903 Whirlpool Mixer Beater
4	BOWL, 5 QT.
5	SCREW
6	CAP, BOWL SCREW
7	WP9709707 Whirlpool Foot
8	WP9704329 Whirlpool Wire Whip
9	HOOK, DOUGH (COATED)
10	W11246352 Whirlpool Latch Mechanism
11	WP24452 Whirlpool Latch Lever
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	W11218705 Whirlpool Washer Assembly
15	W10802060 Whirlpool Screw
16	W11232016 Whirlpool Latch Link
17	WP9709280 Whirlpool Latch Lever
18	WP16910 Whirlpool Dowel Pin
19	CABINET (NOT A SERVICEABLE PART)
