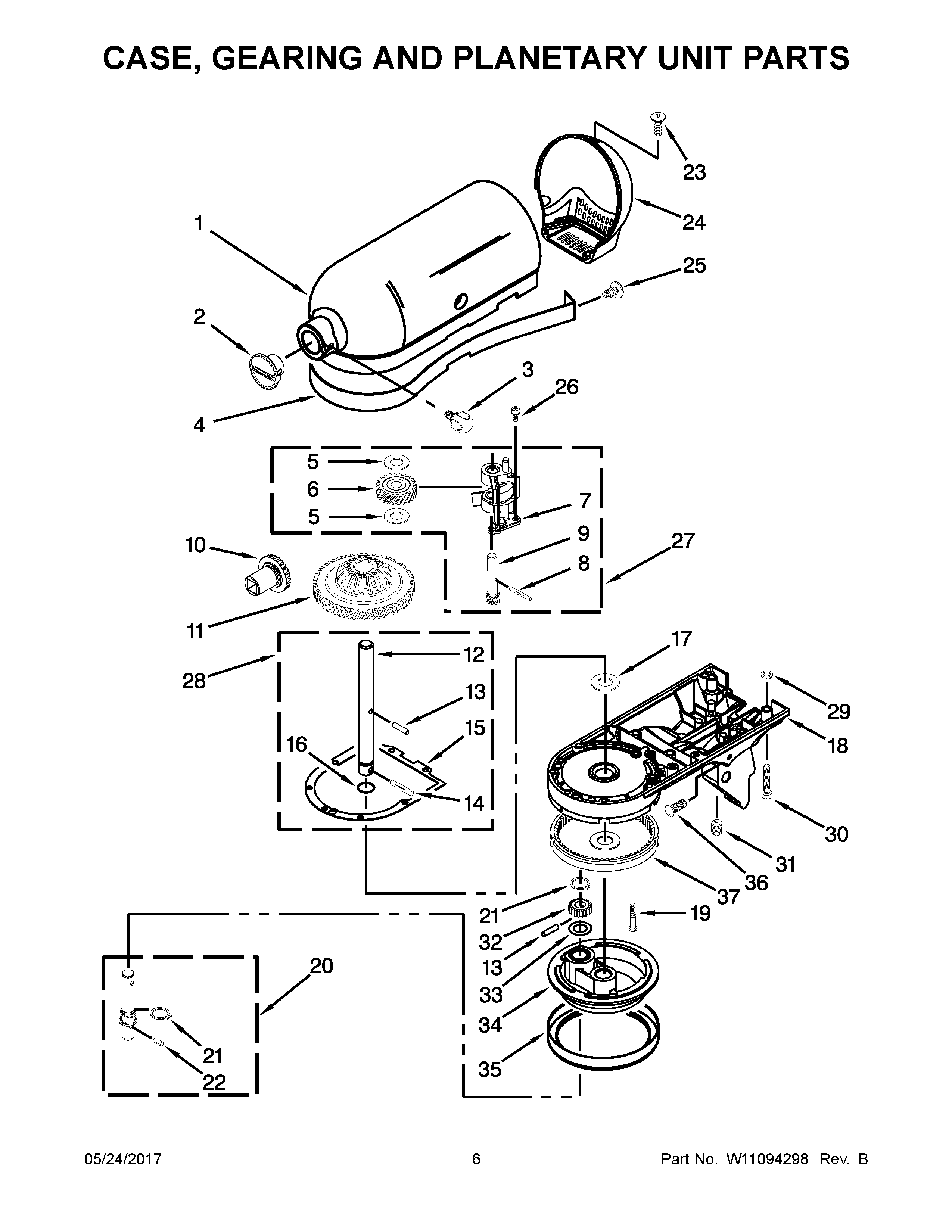

5KSM180LEABK0 04 – CASE, GEARING AND PLANETARY UNIT PARTS

5KSM180LEABK0 04 – CASE, GEARING AND PLANETARY UNIT PARTS

Written by

in

5KSM180LEABK0 04 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
2CAP, ATTACHMENT HUB
3THUMB SCREW (BLACK)
5WPW10323373 Whirlpool Washer
6WPW10112253 Whirlpool Gear Assembly
7W11082541 Whirlpool Bearing
8WP9705444 Whirlpool Pin Groove
9Shaft & Pinion
10W11192794 Whirlpool HUB Gear
12WP240026 Whirlpool Control Shaft
13Pin (Vertical Center Shaft)
14WP9705443 Whirlpool Pin Groove
15WP4162324 Whirlpool Case Gasket
16O RING
17WPW10323378 Whirlpool Washer
19W11170598 Whirlpool Screw
20WP243368 Whirlpool Agitator Shaft
21WP9703438 Whirlpool Snap Retaining Ring
22W11664709 Whirlpool Groove Pin
23WP241877 Whirlpool Screw
25W10853069 Whirlpool Screw
26W11097298 Whirlpool Dishwasher Screw
27GEAR, WORM AND BRACKET
284160474 Whirlpool Control Shaft
29WP8533914 Whirlpool Lock
30W11173547 Whirlpool Screw
31WP3400203 Whirlpool Screw
32W11133645 Whirlpool Pinion Gear
33WP9706090 Whirlpool Washer
34CABINET (NOT A SERVICEABLE PART)
35RING, PLANETARY DRIP
36W11028216 Whirlpool Screw
37W11340106 Whirlpool Gear Assembly
