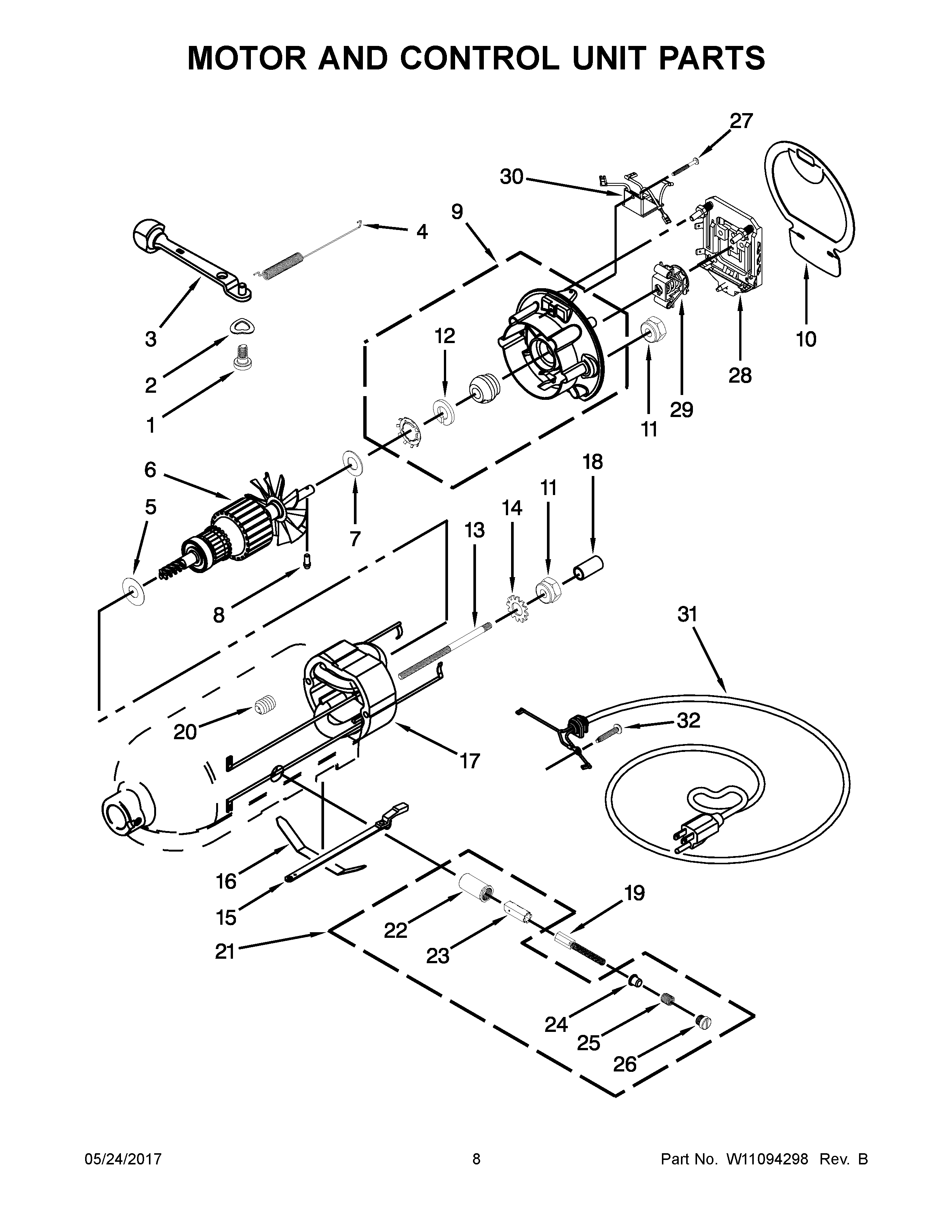

5KSM180LEABK0 05 – MOTOR AND CONTROL UNIT PARTS

Products

Position	Product
1	WP110679 Whirlpool Screw
2	WP116241 Whirlpool Washer
3	WP9709276 Whirlpool Speed Control Lever
4	WP3183680 Whirlpool Spring
5	WP9704324 Whirlpool Washer
6A	W10900799 Whirlpool Armature
6	W11133634 Whirlpool Armature
7	W11233557 Whirlpool Washer
8	WP16998 Whirlpool Drive Stud
9	WP3180526 Whirlpool Bearing Bracket
10	SEAL, END
11	WPW10131078 Whirlpool Nut Assembly
12	WASHER
13	W10851015 Whirlpool Stat Screw
14	W11170663 Whirlpool Washer
15	Speed Link & Cam
16	WP240205 Whirlpool Spring
17A	WPW10417246 Whirlpool Field Assembly
17	W10870869 Whirlpool Field Assembly
18	W11210996 Whirlpool Sleeve
19	WPW10380496 Whirlpool Stand Mixer Motor Brush
20	W11176201 Whirlpool Screw
21	4162546 Whirlpool Brush Holder
22	WP3179908 Whirlpool Brush Holder
23	W11656718 Whirlpool Insert
24	WP116286 Whirlpool Spring Cap
25	WP116287 Whirlpool Spring Cap
26	WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
27	W11084238 Whirlpool Screw Assembly
28	WPW10119326 Whirlpool Speed Control
29	WPW10330804 Whirlpool Speed Governor
30A	W11174552 Whirlpool Stand Mixer Phase Board
30	WPW10325124 Whirlpool Phase Board
31C	W11112762 Whirlpool Power Cord
31B	W10908276 Whirlpool Power Cord
31A	CORD, POWER (BLACK (AUSTRALIA))
31	W11545825 Whirlpool Power Cord
32	Screw
