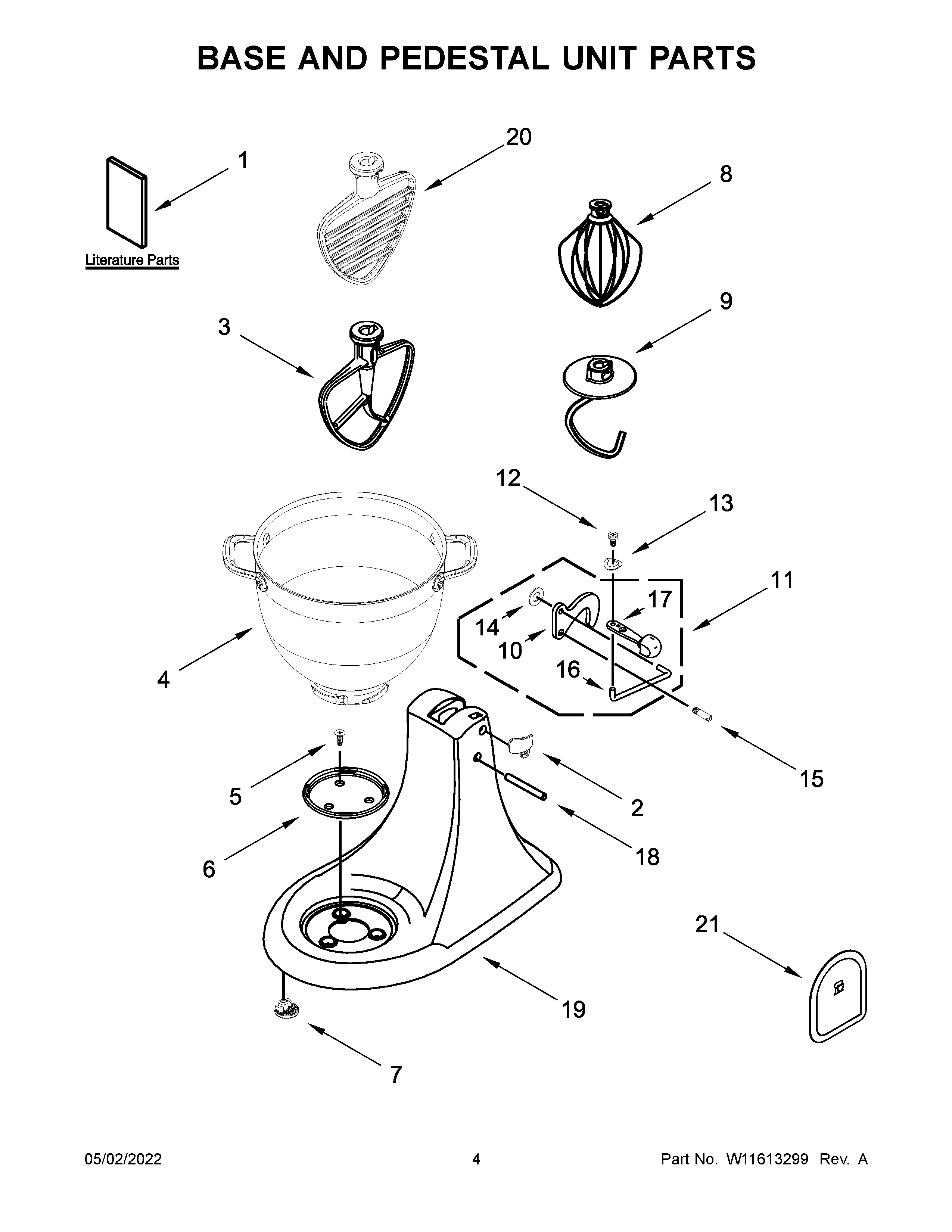

5KSM180LECLB0 03 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	WP3184264 Whirlpool Headlock Assembly
3	W11305076 Whirlpool Mixer Beater
4	ASSY - COPPER BOWL, 5QT
5	SCREW
6	WPW10191926 Whirlpool Cap Screw
7	WP9709707 Whirlpool Foot
8	WHIP, WIRE
9	W11305078 Whirlpool Dough Hook
10	W11246352 Whirlpool Latch Mechanism
11	W11416057 Whirlpool Latch Lever
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	W11218705 Whirlpool Washer Assembly
15	W10802060 Whirlpool Screw
16	W11232016 Whirlpool Latch Link
17	W11676543 Whirlpool Latch Lever
18	WP16910 Whirlpool Dowel Pin
19	CABINET (NOT A SERVICEABLE PART)
20	BEATER, PASTRY (STAINLESS)
21	SCRAPER, POT (NYLON)
