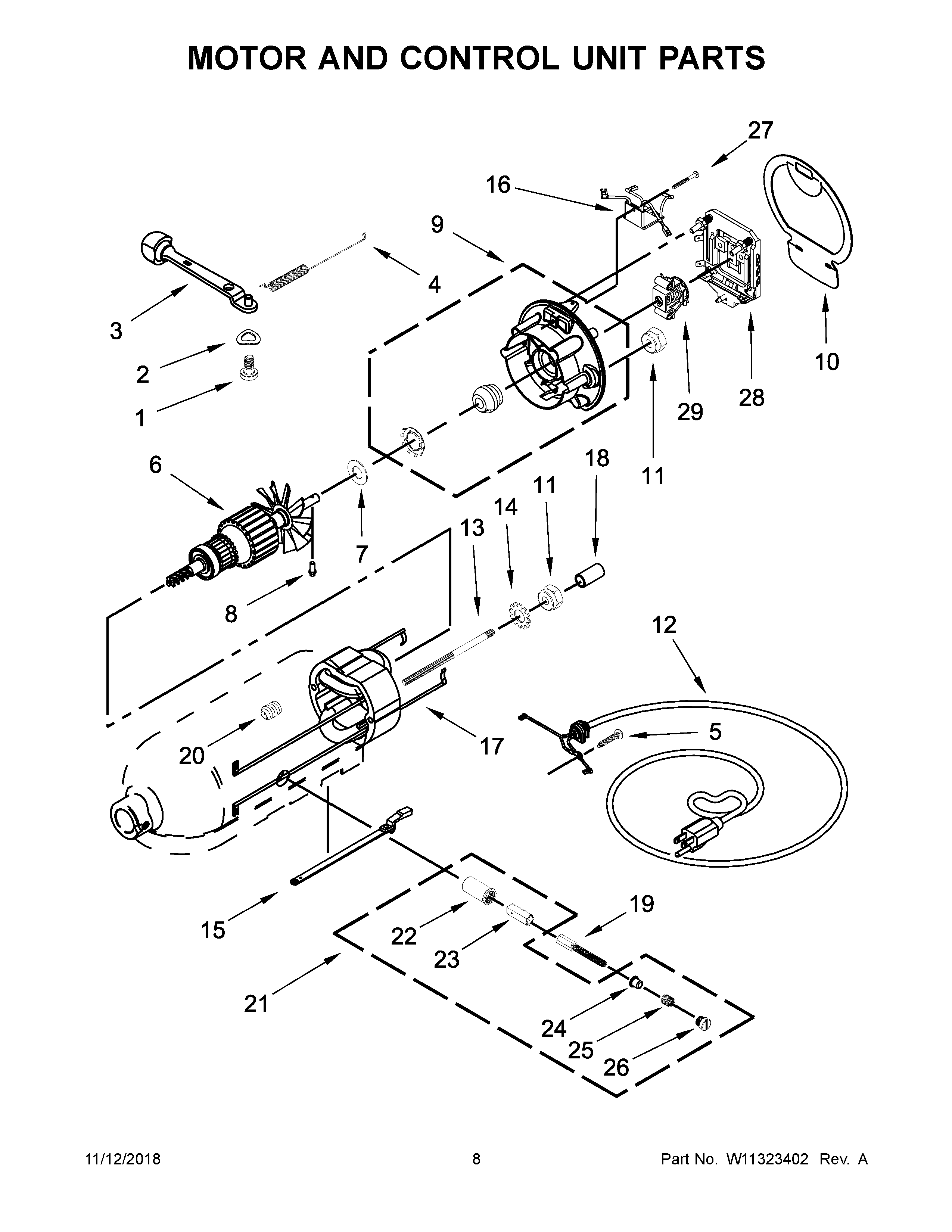

5KSM180RCEMB0 05 – MOTOR AND CONTROL UNIT PARTS

Products

Position	Product
1	WP110679 Whirlpool Screw
2	WP116241 Whirlpool Washer
3	LEVER, SPEED CONTROL ASSEMBLY (MASCARPONE)
4	WP3183680 Whirlpool Spring
5	Screw
6	W10900799 Whirlpool Armature
7	W11233557 Whirlpool Washer
8	WP16998 Whirlpool Drive Stud
9	WP3180526 Whirlpool Bearing Bracket
10	WP240775-1 Whirlpool Endcap Seal
11	WPW10131078 Whirlpool Nut Assembly
12A	POWER CORD (WHITE (UNITED KINGDOM))
12B	W10706734 Whirlpool Power Cord
12	CORD, POWER (WHITE (AUSTRALIA))
13	W10851015 Whirlpool Stat Screw
14	W11170663 Whirlpool Washer
15	W11557271 Whirlpool Link Speed
16	W11174552 Whirlpool Stand Mixer Phase Board
17	WPW10417246 Whirlpool Field Assembly
18	W11210996 Whirlpool Sleeve
19	WPW10380496 Whirlpool Stand Mixer Motor Brush
20	W11176201 Whirlpool Screw
21	4162546 Whirlpool Brush Holder
22	WP3179908 Whirlpool Brush Holder
23	W11656718 Whirlpool Insert
24	WP116286 Whirlpool Spring Cap
25	WP116287 Whirlpool Spring Cap
26	CAP, BRUSH HOLDER (MASCARPONE)
27	W11084238 Whirlpool Screw Assembly
28	WPW10119326 Whirlpool Speed Control
29	WPW10330804 Whirlpool Speed Governor
