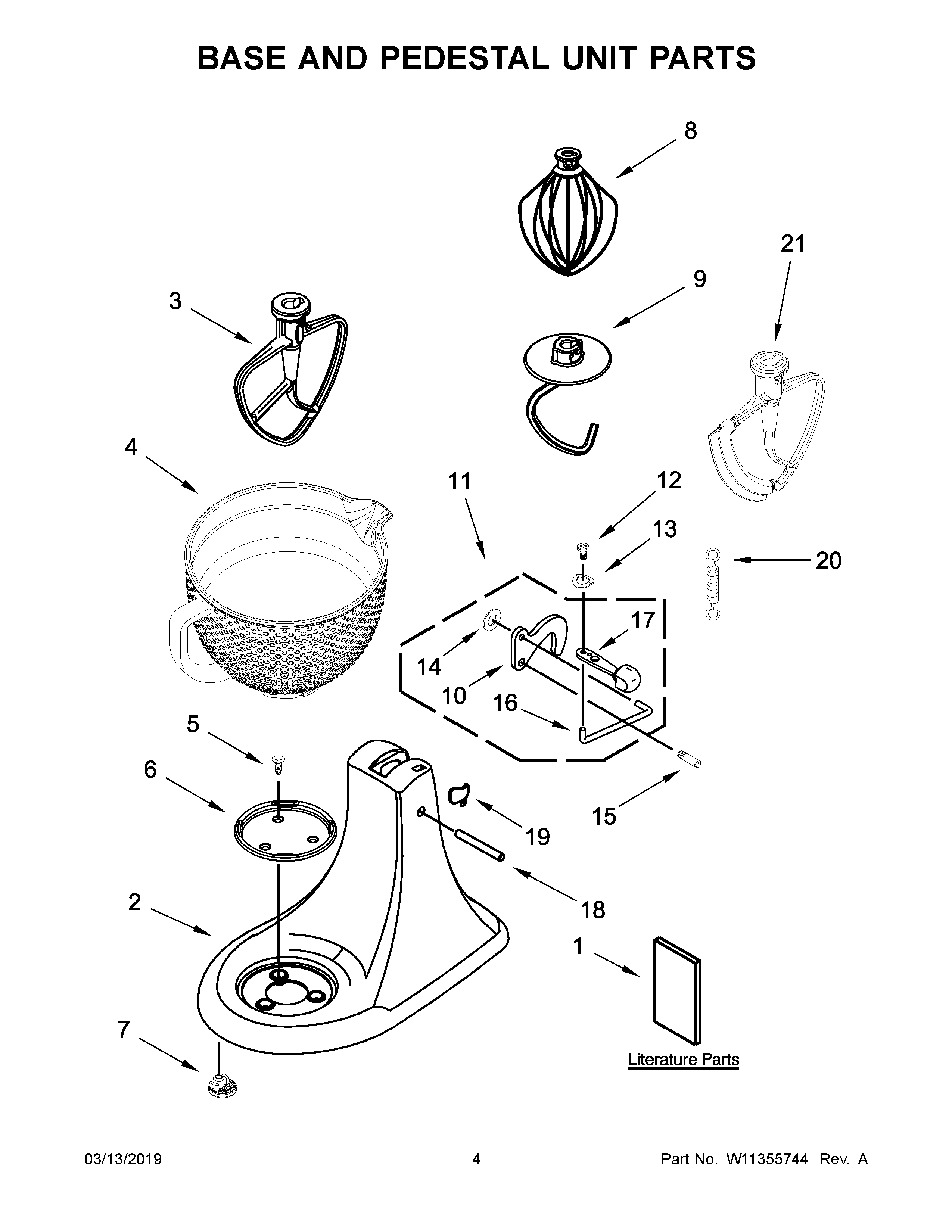

5KSM180RCRMB0 03 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE (ARGENTINA)
2	CABINET (NOT A SERVICEABLE PART)
3	WPW10672617 Whirlpool Stand Mixer Flat Beater
4	W11333831 Whirlpool Mixer Bowl
5	SCREW
6	WPW10191926 Whirlpool Cap Screw
7	WP9709707 Whirlpool Foot
8	WP9704329 Whirlpool Wire Whip
9	WPW10674618 Whirlpool Dough Hook
10	W11246352 Whirlpool Latch Mechanism
11	LATCH, LINK AND LEVER ASSEMBLY (MASCARPONE)
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	W11218705 Whirlpool Washer Assembly
15	W10802060 Whirlpool Screw
16	W11232016 Whirlpool Latch Link
17	LEVER, LATCH (MASCARPONE)
18	WP16910 Whirlpool Dowel Pin
19	WP3184264 Whirlpool Headlock Assembly
20	W11188450 Whirlpool Spring
21	W10917788 Whirlpool Mixer Beater
