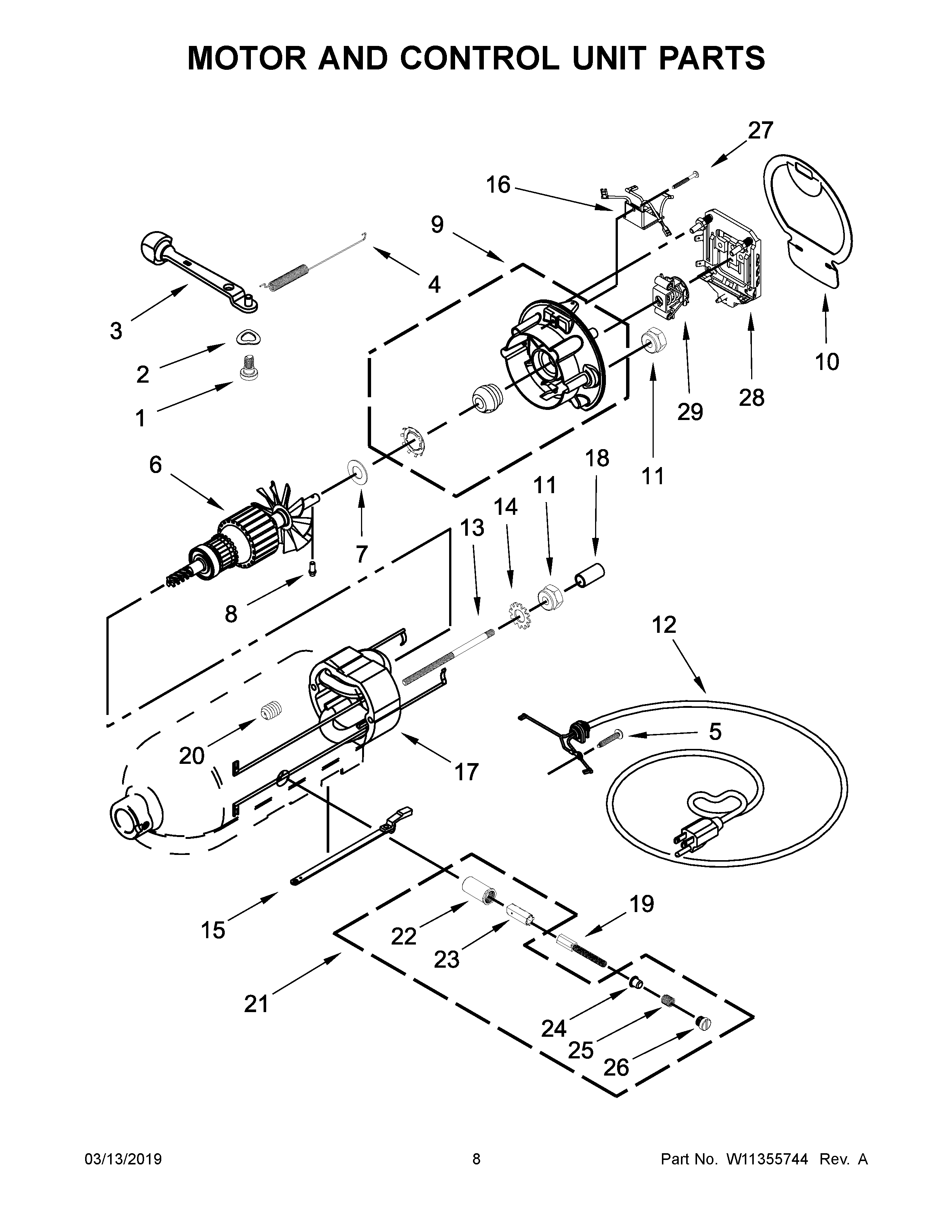

5KSM180RCRMB0 05 – MOTOR AND CONTROL UNIT PARTS

5KSM180RCRMB0 05 – MOTOR AND CONTROL UNIT PARTS

Written by

in

5KSM180RCRMB0 05 – MOTOR AND CONTROL UNIT PARTS

Products

PositionProduct
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3LEVER, SPEED CONTROL ASSEMBLY (MASCARPONE)
4WP3183680 Whirlpool Spring
5Screw
6W10900799 Whirlpool Armature
7W11233557 Whirlpool Washer
8WP16998 Whirlpool Drive Stud
9WP3180526 Whirlpool Bearing Bracket
10WP240775-1 Whirlpool Endcap Seal
11WPW10131078 Whirlpool Nut Assembly
12CORD, POWER (WHITE (ARGENTINA))
13W10851015 Whirlpool Stat Screw
14W11170663 Whirlpool Washer
15W11557271 Whirlpool Link Speed
16W11174552 Whirlpool Stand Mixer Phase Board
17WPW10417246 Whirlpool Field Assembly
18W11210996 Whirlpool Sleeve
19WPW10380496 Whirlpool Stand Mixer Motor Brush
20W11176201 Whirlpool Screw
214162546 Whirlpool Brush Holder
22WP3179908 Whirlpool Brush Holder
23W11656718 Whirlpool Insert
24WP116286 Whirlpool Spring Cap
25WP116287 Whirlpool Spring Cap
26CAP, BRUSH HOLDER (MASCARPONE)
27W11084238 Whirlpool Screw Assembly
28WPW10119326 Whirlpool Speed Control
29WPW10330804 Whirlpool Speed Governor
