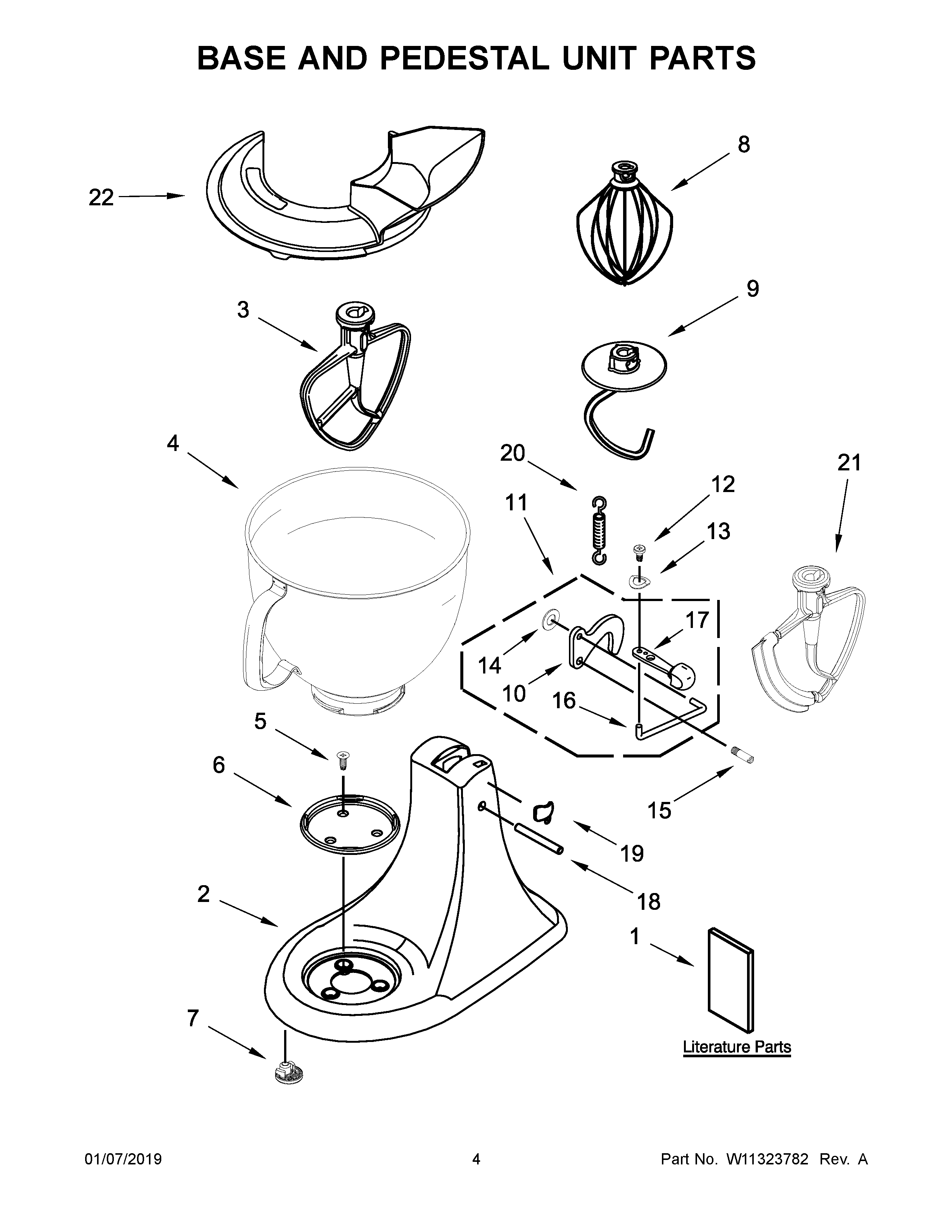

5KSM180RPBMB0 03 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
1B	USE & CARE GUIDE (BRAZIL)
1A	USE & CARE GUIDE (ARGENTINA)
1	USE & CARE GUIDE
2	CABINET (NOT A SERVICEABLE PART)
3	WPW10672617 Whirlpool Stand Mixer Flat Beater
4	W11334037 Whirlpool Mixer Bowl
5	SCREW
6	WPW10191926 Whirlpool Cap Screw
7	WP9709707 Whirlpool Foot
8	WP9704329 Whirlpool Wire Whip
9	WPW10674618 Whirlpool Dough Hook
10	W11246352 Whirlpool Latch Mechanism
11	LATCH, LINK AND LEVER ASSEMBLY (MASCARPONE)
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	W11218705 Whirlpool Washer Assembly
15	W10802060 Whirlpool Screw
16	W11232016 Whirlpool Latch Link
17	LEVER, SPEED CONTROL ASSEMBLY (MASCARPONE)
18	WP16910 Whirlpool Dowel Pin
19	WP3184264 Whirlpool Headlock Assembly
20	W11188450 Whirlpool Spring
21	W10917788 Whirlpool Mixer Beater
22	W11312468 Whirlpool Pour Shelf
