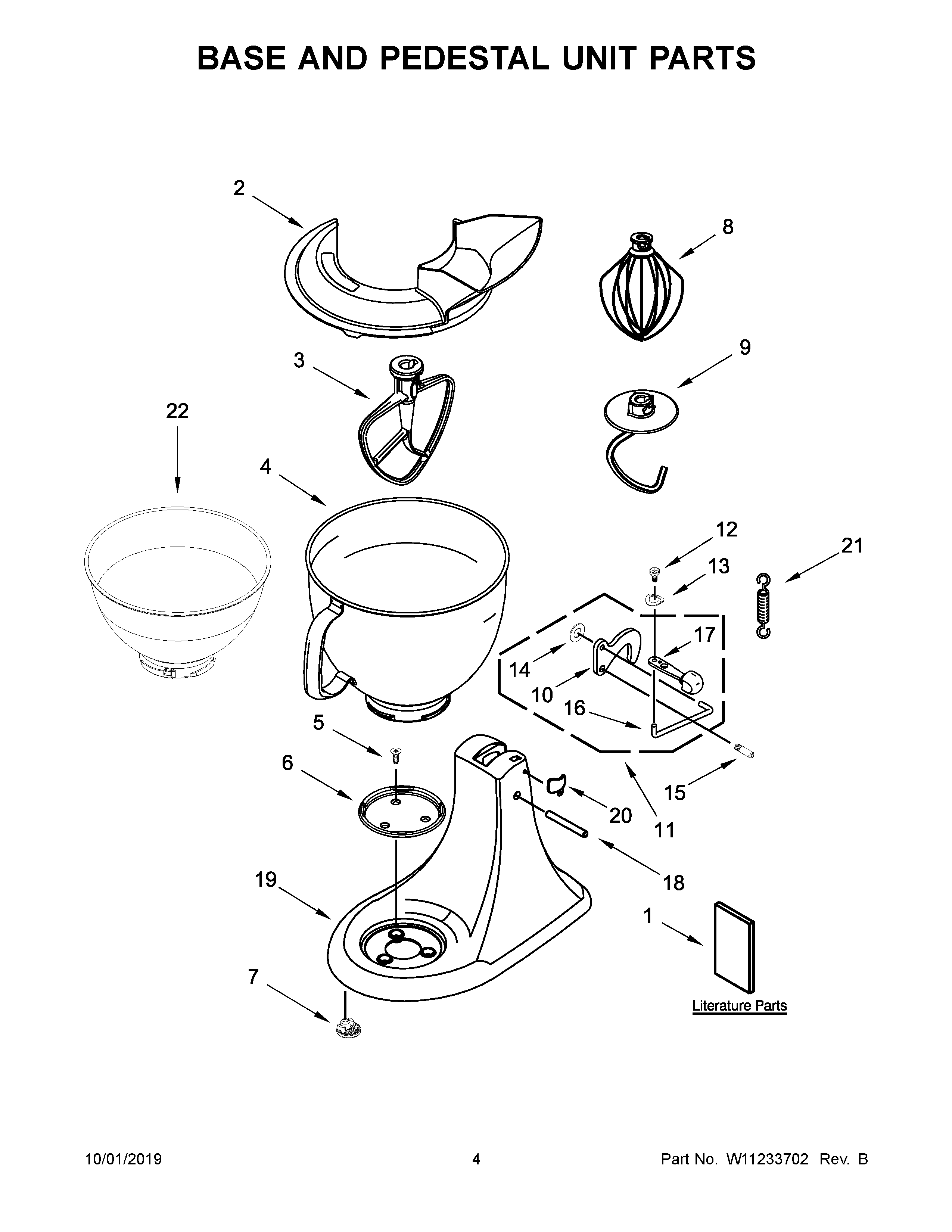

5KSM185PSBAC4 03 – BASE AND PEDESTAL UNIT PARTS

5KSM185PSBAC4 03 – BASE AND PEDESTAL UNIT PARTS

Written by

in

5KSM185PSBAC4 03 – BASE AND PEDESTAL UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W11312468 Whirlpool Pour Shelf
3W11305076 Whirlpool Mixer Beater
4BOWL, 5 QT.
5SCREW
6WPW10191926 Whirlpool Cap Screw
7WP9709707 Whirlpool Foot
8WHIP, WIRE
9W11305078 Whirlpool Dough Hook
10W11246352 Whirlpool Latch Mechanism
11AW11416057 Whirlpool Latch Lever
11WP3184200 Whirlpool Latch Lever
12WP110679 Whirlpool Screw
13WP116241 Whirlpool Washer
14W11218705 Whirlpool Washer Assembly
15W10802060 Whirlpool Screw
16W11232016 Whirlpool Latch Link
17WP9709267 Whirlpool Latch Lever
17AW11676543 Whirlpool Latch Lever
18WP16910 Whirlpool Dowel Pin
19CABINET (NOT A SERVICEABLE PART)
20WP3184264 Whirlpool Headlock Assembly
21W11188450 Whirlpool Spring
22BOWL, 3 QUART
