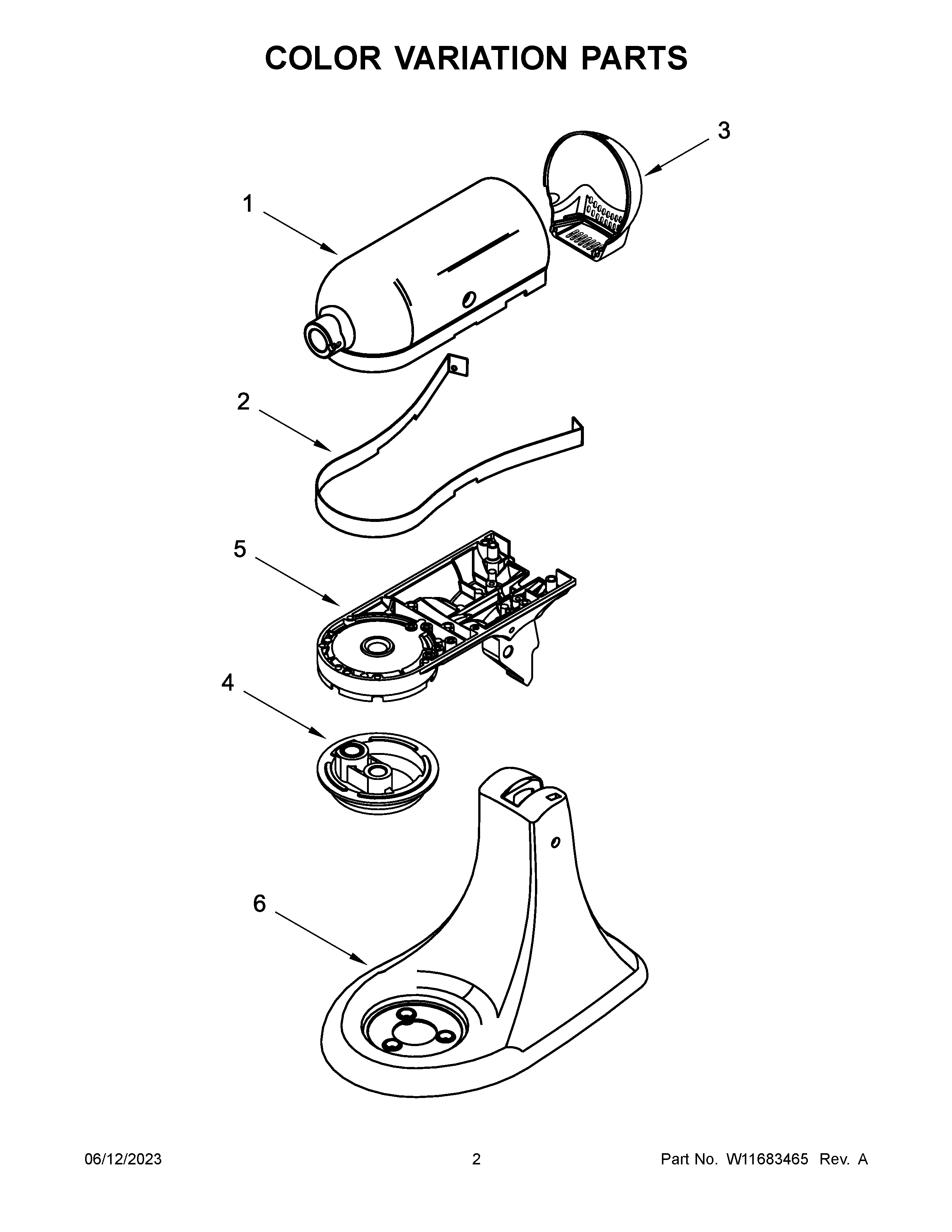

5KSM185PSBAC5 02 – COLOR VARIATION PARTS

5KSM185PSBAC5 02 – COLOR VARIATION PARTS

Written by

in

5KSM185PSBAC5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1DMOTOR HOUSING (EMPIRE RED)
1CMOTOR HOUSING (CAST IRON/IMPERIAL BLACK)
1HMOTOR HOUSING (MEDALLION SILVER)
1W11605627 Whirlpool Housing
1GMOTOR HOUSING (KYOTO GLOW)
1IMOTOR HOUSING (ONYX BLACK)
1EMOTOR HOUSING (FEATHER PINK)
1JMOTOR HOUSING (PEBBLED PALM)
1BMOTOR HOUSING (CANDY APPLE RED)
1AMOTOR HOUSING (BIRD OF PARADISE)
1FW11605712 Whirlpool Housing
2TRIM BAND (DARK PLATINUM)
3JEND COVER (PEBBLED PALM)
3HWPW10435298 Whirlpool Cover
3EEND COVER (FEATHER PINK)
3BWPW10239110 Whirlpool Cover
3AEND COVER (BIRD OF PARADISE)
3GWPL W11357462
3End Cover (Almond Creme)
3IEND COVER (ONYX BLACK)
3C9704805 Whirlpool Cover Assembly
3FEND COVER (IMPERIAL GRAY)
3DEND COVER (EMPIRE RED)
4DPLANETARY (EMPIRE RED)
4IPLANETARY-Onyx Black
4GWPL W11357469
4JPLANETARY (PEBBLED PALM)
4C9704797 Whirlpool Planetary Mixing
4Planetary (Almond Creme)
4HWPW10444039 Whirlpool Planetary Mixer
4EPLANETARY (FEATHER PINK)
4BW10239112 Whirlpool Planetary Mixer
4FPLANETARY (IMPERIAL GRAY)
4APLANETARY (BIRD OF PARADISE)
5ALOWER GEARCASE (BIRD OF PARADISE)
5JLOWER GEARCASE (PEBBLED PALM)
5DWPL 24035091
5CLOWER GEARCASE (IMPERIAL BLACK)
5EWPL W11431679
5HWPW10444068 Whirlpool Gearcase Assembly
5ILOWER GEARCASE (ONYX BLACK)
5LOWER GEARCASE (ALMOND CREME)
5BW10245786 Whirlpool Gearcase
5GWPL W11357465
5FWPL 24035086
6AWPL W11209479
6WPL 9705577
6HWPW10444067 Whirlpool Pedestal
6BWPL W10245720
6CWPL W10648651
6JPEDESTAL (PEBBLED PALM)
6GW11357472 Whirlpool Pedestal
6FPEDESTAL WITH FEET AND HEADLOCK (IMPERIAL GREY)
6DWPL 3184280
6IPEDESTAL & FOOT (ONYX BLACK)
6EWPL W11431673
