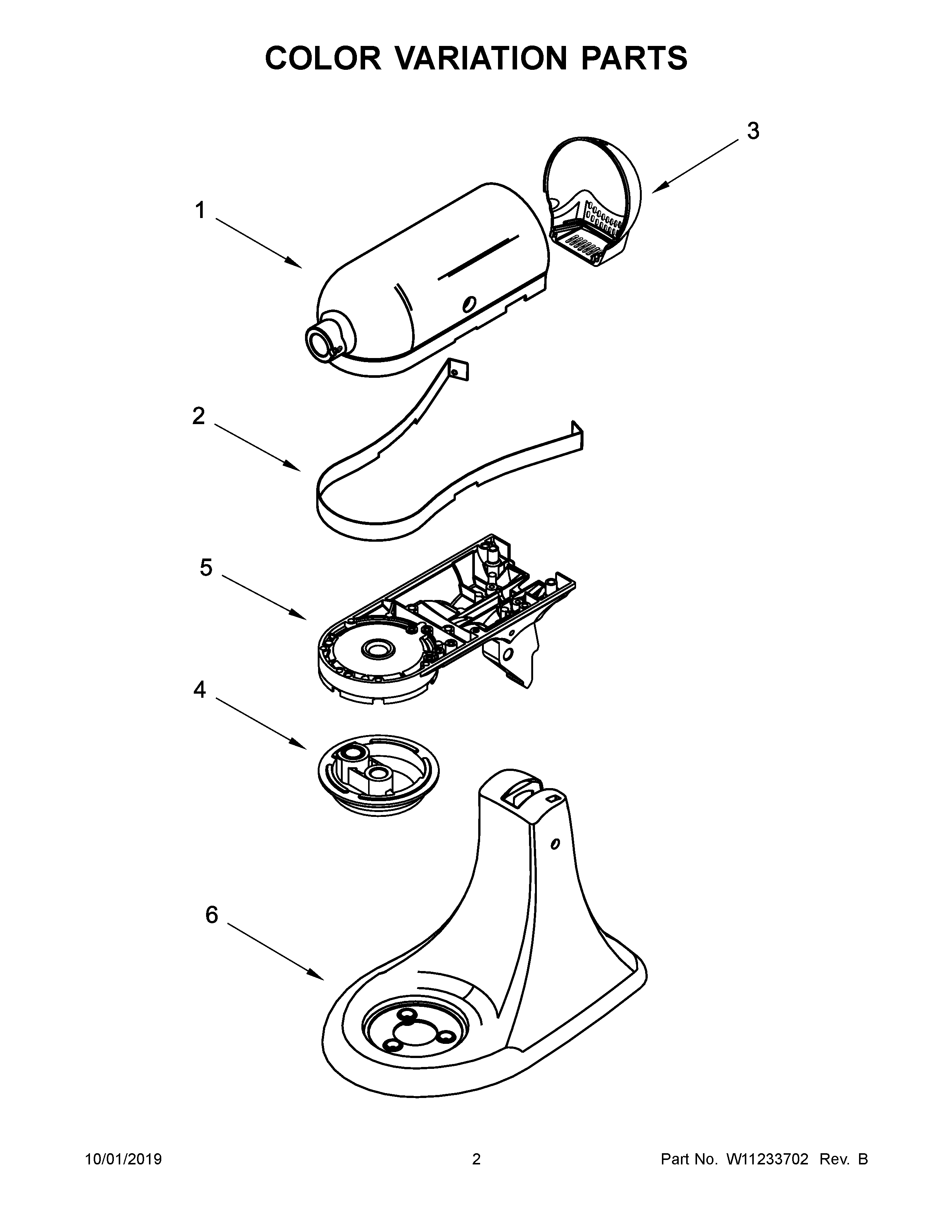

5KSM185PSBPP4 02 – COLOR VARIATION PARTS

5KSM185PSBPP4 02 – COLOR VARIATION PARTS

Written by

in

5KSM185PSBPP4 02 – COLOR VARIATION PARTS

Products

PositionProduct
1B9704790 Whirlpool Housing
1NMOTOR HOUSING (FEATHER PINK)
1CW10239115 Whirlpool Housing
1GMOTOR HOUSING (MATTE DRIED ROSE)
1JGEARCASE MOTOR HOUSING-NICKEL (INTERNATIONAL)
1OMOTOR HOUSING (KYOTO GLOW)
1FMOTOR HOUSING (CHROME)
1MW11346223 Whirlpool Housing
1HMOTOR HOUSING (EMPIRE RED)
1IWPW10444230 Whirlpool Housing
1LWPL W11209486
1AW10607824 Whirlpool Housing
1PMOTOR HOUSING (IMPERIAL GRAY)
1KMotor Housing (Onyx Black)
1DWPL W11209510
1E9704752 Whirlpool Housing
1Motor Housing (Almond Creme)
2TRIM BAND (DARK PLATINUM)
3JW10291364 Whirlpool Cover Assembly
3AW10607811 Whirlpool Cover
3NEND COVER (FEATHER PINK)
3IWPW10435298 Whirlpool Cover
3OWPL W11357462
3EWPL W10291365
3MEND COVER (PEBBLED PALM)
3LEND COVER (BIRD OF PARADISE)
3DEND COVER (CINNAMON)
3CWPW10239110 Whirlpool Cover
3B9704805 Whirlpool Cover Assembly
3End Cover (Almond Creme)
3GEND COVER (MATTE DRIED ROSE)
3KEND COVER (ONYX BLACK)
3HEND COVER (EMPIRE RED)
3PEND COVER (IMPERIAL GRAY)
3FWPW10291362 Whirlpool Cover
4FWPL 24028621
4OWPL W11357469
4AW10607813 Whirlpool Planetary Gear
4GWPL W11209496
4KPLANETARY-Onyx Black
4LPLANETARY (BIRD OF PARADISE)
4MPLANETARY (PEBBLED PALM)
4DWPL W11209507
4HPLANETARY (EMPIRE RED)
4CW10239112 Whirlpool Planetary Mixer
4PPLANETARY (IMPERIAL GRAY)
4E9704755 Whirlpool Planetary Assembly
4JPLANETARY-NICKEL
4B9704797 Whirlpool Planetary Mixing
4NPLANETARY (FEATHER PINK)
4Planetary (Almond Creme)
4IWPW10444039 Whirlpool Planetary Mixer
5DWPL W11209505
5AWPL W10607815
5IWPW10444068 Whirlpool Gearcase Assembly
5MLOWER GEARCASE (PEBBLED PALM)
5KLOWER GEARCASE (ONYX BLACK)
5LLOWER GEARCASE (BIRD OF PARADISE)
5LOWER GEARCASE (ALMOND CREME)
5PWPL 24035086
5BLOWER GEARCASE (IMPERIAL BLACK)
5E9704749 Whirlpool Gearcase
5NWPL W11431679
5GWPL W11209493
5HWPL 24035091
5F9706662 Whirlpool Gearcase Assembly
5CW10245786 Whirlpool Gearcase
5OWPL W11357465
5JWP9706459 Whirlpool Gearcase
6IWPW10444067 Whirlpool Pedestal
6OW11357472 Whirlpool Pedestal
6WPL 9703248
6DWPL W11209503
6KPEDESTAL & FOOT (ONYX BLACK)
6EW10571720 Whirlpool Pedestal
6FWPL 3184277
6PPEDESTAL WITH FEET AND HEADLOCK (IMPERIAL GREY)
6GWPL W11209491
6HWPL 3184280
6LWPL W11209479
6MPEDESTAL (PEBBLED PALM)
6BWPL W10648651
6CWPL W10245720
6JWPL 9706456
6AWPL W10638032
6NWPL W11431673
