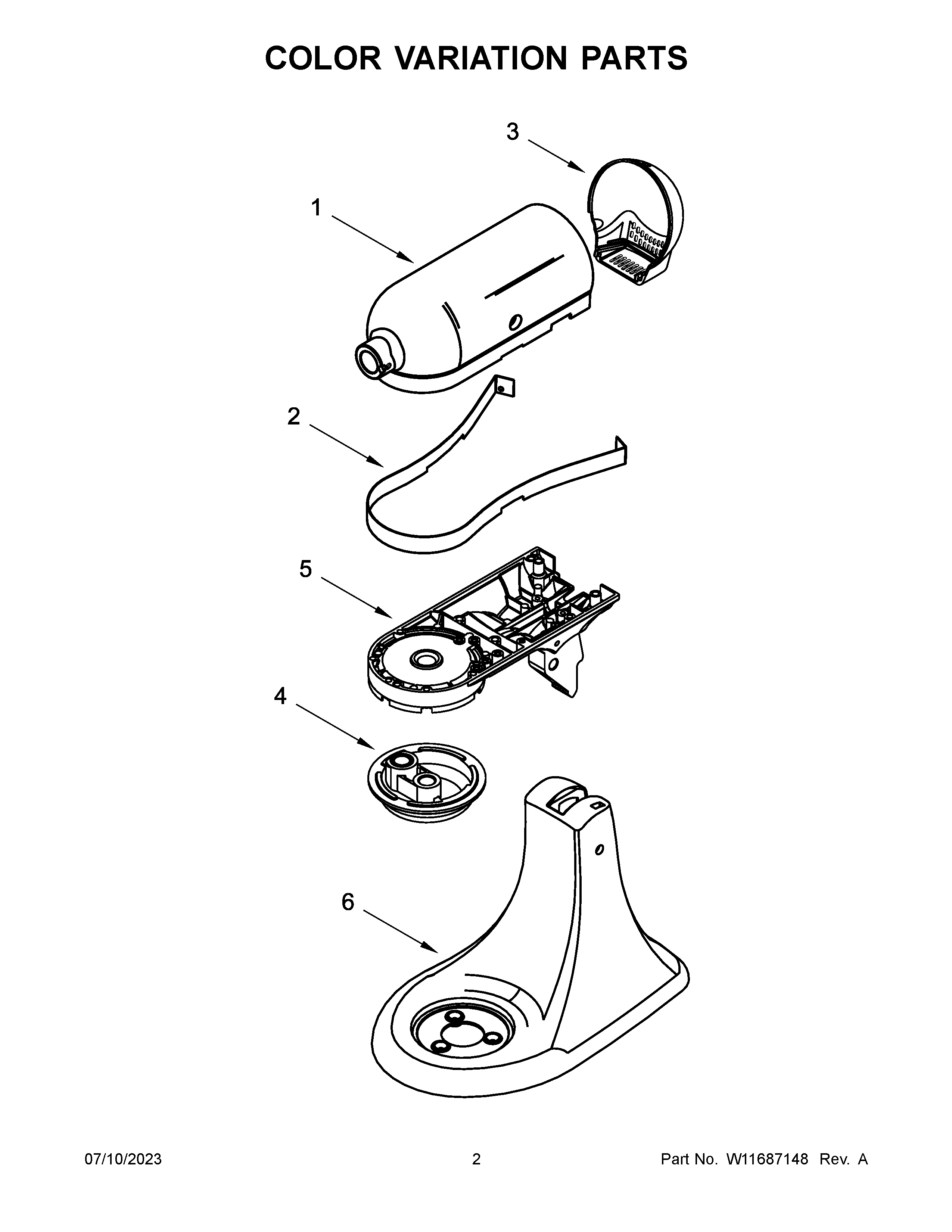

5KSM185PSEKG5 02 – COLOR VARIATION PARTS

5KSM185PSEKG5 02 – COLOR VARIATION PARTS

Written by

in

5KSM185PSEKG5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1W11605627 Whirlpool Housing
1FW11605712 Whirlpool Housing
1EMOTOR HOUSING (FEATHER PINK)
1DMOTOR HOUSING (EMPIRE RED)
1HMOTOR HOUSING (MATTE DRIED ROSE)
1BMOTOR HOUSING (CANDY APPLE RED)
1CMOTOR HOUSING (CAST IRON/IMPERIAL BLACK)
1IMOTOR HOUSING (MEDALLION SILVER)
1GMOTOR HOUSING (KYOTO GLOW)
1AMOTOR HOUSING (BIRD OF PARADISE)
1KMOTOR HOUSING (PEBBLED PALM)
1JMOTOR HOUSING (ONYX BLACK)
2TRIM BAND (DARK PLATINUM)
3HEND COVER (MATTE DRIED ROSE)
3BWPW10239110 Whirlpool Cover
3KEND COVER (PEBBLED PALM)
3EEND COVER (FEATHER PINK)
3IWPW10435298 Whirlpool Cover
3GWPL W11357462
3End Cover (Almond Creme)
3FEND COVER (IMPERIAL GRAY)
3DEND COVER (EMPIRE RED)
3JEND COVER (ONYX BLACK)
3C9704805 Whirlpool Cover Assembly
3AEND COVER (BIRD OF PARADISE)
4FPLANETARY (IMPERIAL GRAY)
4HWPL W11209496
4GWPL W11357469
4DPLANETARY (EMPIRE RED)
4APLANETARY (BIRD OF PARADISE)
4KPLANETARY (PEBBLED PALM)
4IWPW10444039 Whirlpool Planetary Mixer
4EPLANETARY (FEATHER PINK)
4BW10239112 Whirlpool Planetary Mixer
4C9704797 Whirlpool Planetary Mixing
4Planetary (Almond Creme)
4JPLANETARY-Onyx Black
5KLOWER GEARCASE (PEBBLED PALM)
5ALOWER GEARCASE (BIRD OF PARADISE)
5GWPL W11357465
5HWPL W11209493
5DWPL 24035091
5CLOWER GEARCASE (IMPERIAL BLACK)
5FWPL 24035086
5EWPL W11431679
5IWPW10444068 Whirlpool Gearcase Assembly
5LOWER GEARCASE (ALMOND CREME)
5BW10245786 Whirlpool Gearcase
5JLOWER GEARCASE (ONYX BLACK)
6JPEDESTAL & FOOT (ONYX BLACK)
6AWPL W11209479
6WPL 9705577
6DWPL 3184280
6HWPL W11209491
6IWPW10444067 Whirlpool Pedestal
6BWPL W10245720
6CWPL W10648651
6KPEDESTAL (PEBBLED PALM)
6GW11357472 Whirlpool Pedestal
6FPEDESTAL WITH FEET AND HEADLOCK (IMPERIAL GREY)
6EWPL W11431673
