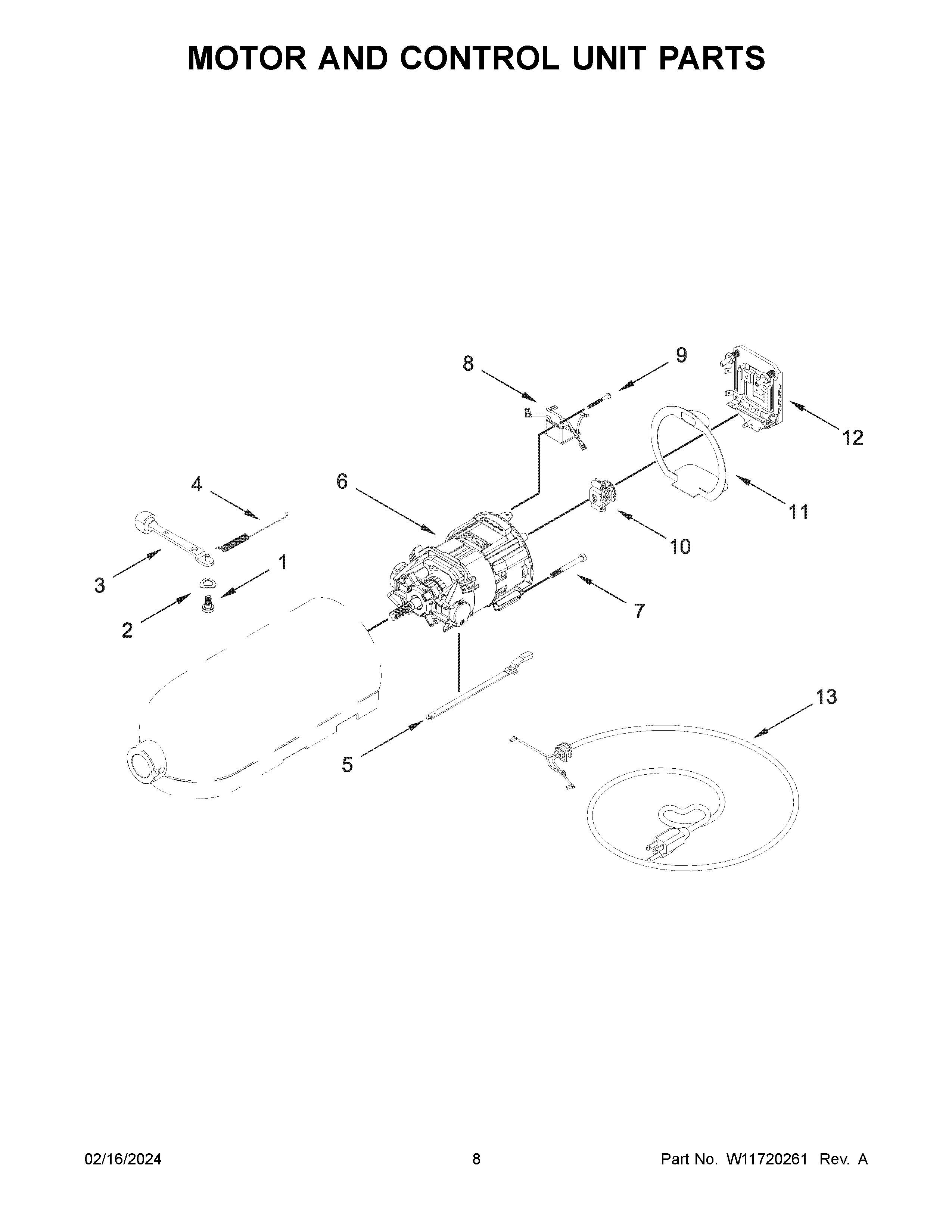

5KSM192XDABM5 05 – MOTOR AND CONTROL UNIT PARTS

5KSM192XDABM5 05 – MOTOR AND CONTROL UNIT PARTS

Written by

in

5KSM192XDABM5 05 – MOTOR AND CONTROL UNIT PARTS

Products

PositionProduct
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3W11661858 Whirlpool Speed Lever
4WP3183680 Whirlpool Spring
5W11557271 Whirlpool Link Speed
6MOTOR ASSEMBLY
7SCREW, MOTOR MOUNTING
8W11204851 Whirlpool Phase Board
9W11084238 Whirlpool Screw Assembly
10WPW10330804 Whirlpool Speed Governor
11SEAL, END
12WPW10119326 Whirlpool Speed Control
13CORD, POWER (BLACK)
