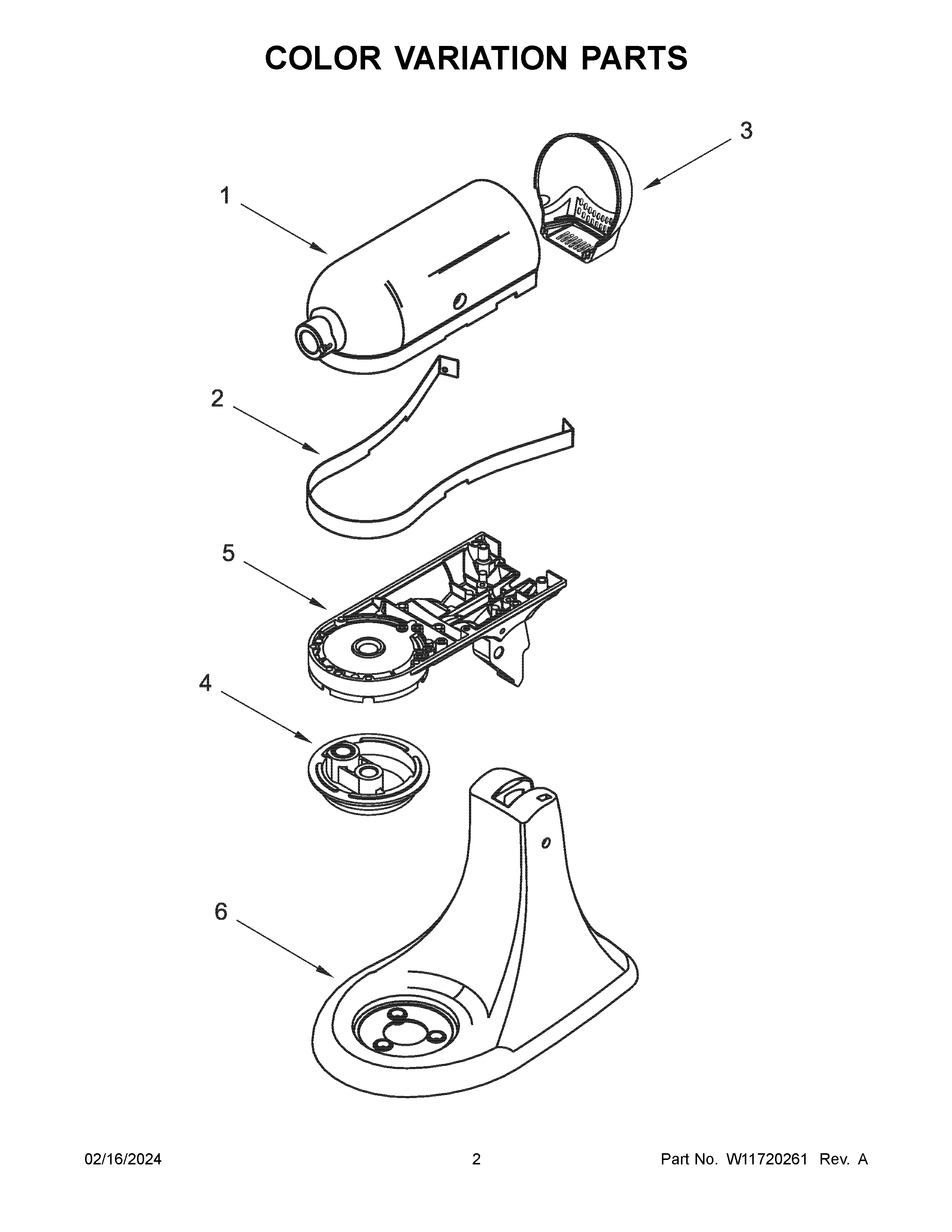

5KSM192XDAMH5 02 – COLOR VARIATION PARTS

5KSM192XDAMH5 02 – COLOR VARIATION PARTS

Written by

in

5KSM192XDAMH5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1KMOTOR HOUSING (MAJESTIC YELLOW)
1PMOTOR HOUSING (ONYX BLACK)
1GMOTOR HOUSING (EMPIRE RED)
1DMOTOR HOUSING (CANDY APPLE RED)
1EMOTOR HOUSING (CAST IRON/IMPERIAL BLACK)
1QMOTOR HOUSING (PEBBLED PALM)
1OMOTOR HOUSING (MINERAL WATER BLUE)
1RMOTOR HOUSING (PISTACHIO)
1FMOTOR HOUSING (CONTOUR SILVER)
1MMOTOR HOUSING (LAVENDER CREAM)
1IMOTOR HOUSING (HONEY)
1BMOTOR HOUSING (BLACK MATTE)
1HMOTOR HOUSING (FEATHER PINK)
1MOTOR HOUSING (AGAVE)
1JMOTOR HOUSING (KYOTO GLOW)
1AW11605627 Whirlpool Housing
1LMOTOR HOUSING (MATTE DRIED ROSE)
1CMOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE)
1SMOTOR HOUSING (WHITE)
1NMOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE)
2W11562449 Whirlpool Band Trim
3OEND COVER (MINERAL WATER BLUE)
3MW10678729 Whirlpool Cover Assembly
3R9706841 Whirlpool Cover
3SEND COVER-White
3E9704805 Whirlpool Cover Assembly
3END COVER (AGAVE)
3NWPL W11113835
3BWPL W10885707
3QEND COVER (PEBBLED PALM)
3PEND COVER (ONYX BLACK)
3DWPW10239110 Whirlpool Cover
3IWPL W11485686
3GEND COVER (EMPIRE RED)
3KEND COVER (MAJESTIC YELLOW)
3JWPL W11357462
3HEND COVER (FEATHER PINK)
3CE
3FW10350456 Whirlpool Cover Assembly
3LEND COVER (MATTE DRIED ROSE)
3AEnd Cover (Almond Creme)
4RPLANETARY (PISTACHIO)
4IWPL W11485717
4HPLANETARY (FEATHER PINK)
4DW10239112 Whirlpool Planetary Mixer
4JWPL W11357469
4OPLANETARY (MINERAL WATER BLUE)
4QPLANETARY (PEBBLED PALM)
4E9704797 Whirlpool Planetary Mixing
4CWPL W11209470
4LWPL W11209496
4MWPL W10678731
4FW10350465 Whirlpool Planetary Mixer
4KPLANETARY (MAJESTIC YELLOW)
4GPLANETARY (EMPIRE RED)
4PPLANETARY-Onyx Black
4APlanetary (Almond Creme)
4SPLANETARY-White
4NW11113886 Whirlpool Planetary Mixer
4BW11170306 Whirlpool Planetary Assembly
4PLANETARY (AGAVE)
5MWPL W10678734
5NWPL W11113859
5QLOWER GEARCASE (PEBBLED PALM)
5DW10245786 Whirlpool Gearcase
5JWPL W11357465
5ALOWER GEARCASE (ALMOND CREME)
5SLOWER GEARCASE-White
5PLOWER GEARCASE (ONYX BLACK)
5WPL W11579600
5ELOWER GEARCASE (IMPERIAL BLACK)
5FLOWER GEARCASE (CONTOUR SILVER)
5GWPL 24035091
5KWPL 24035093
5LWPL W11209493
5R9706832 Whirlpool Gearcase
5CW11209465 Whirlpool Gearcase
5BWPL W10885699
5OWPL W11444671
5HWPL W11431679
5IWPL W11485689
6HWPL W11431673
6DWPL W10245720
6IWPL W11485777
6WPL W11579606
6RWPL 9709637
6EWPL W10648651
6QPEDESTAL (PEBBLED PALM)
6AWPL 9705577
6FPEDESTAL (CONTOUR SILVER)
6CWPL W11209463
6BWPL W11185575
6NWPL W11259895
6GWPL 3184280
6MWPL W11176417
6KWPL 3184281
6LWPL W11209491
6PPEDESTAL & FOOT (ONYX BLACK)
6JW11357472 Whirlpool Pedestal
6OPEDESTAL, W/FEET AND HEADLOCK (MINERAL WATER BLUE)
6SWP3184273 Whirlpool Pedestal
