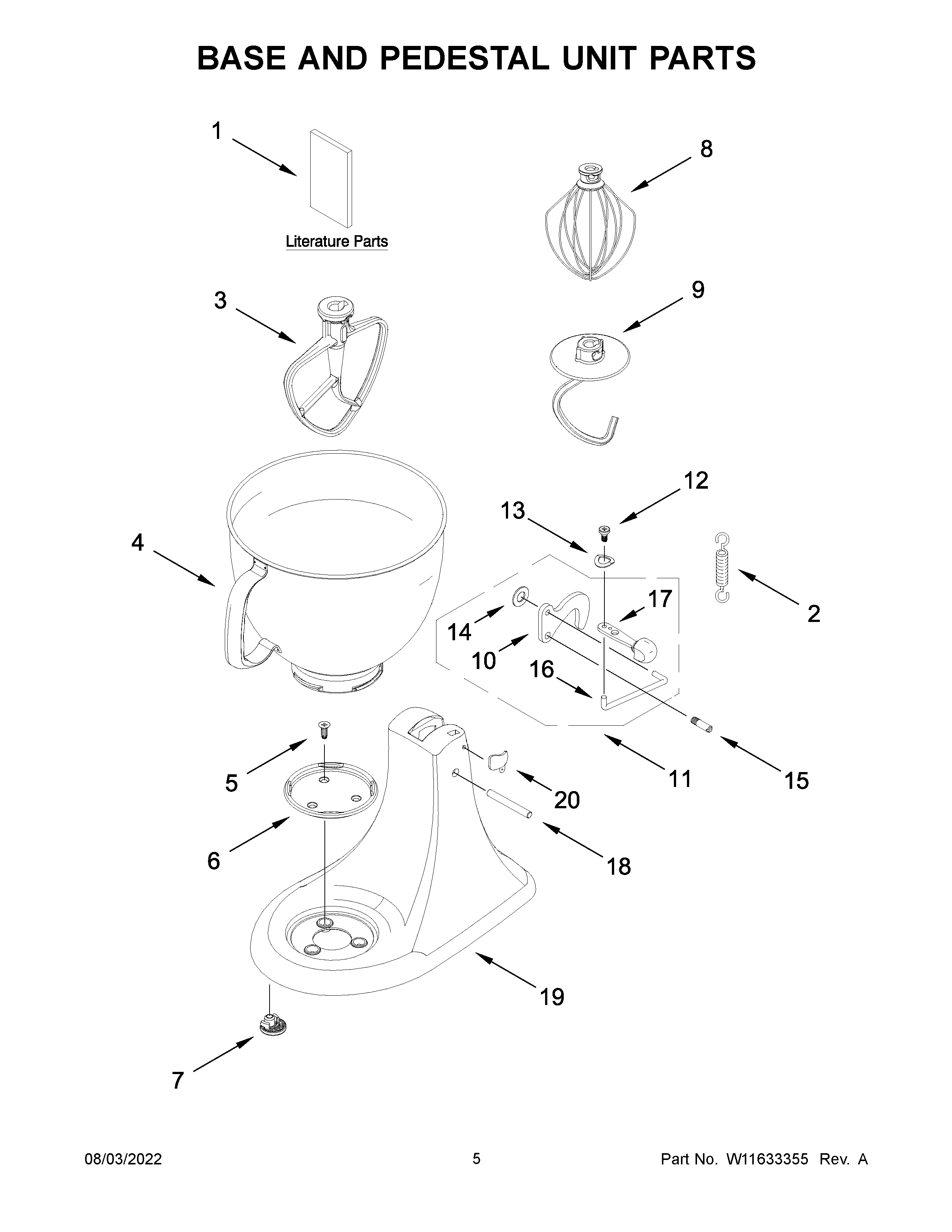

5KSM193ADEBM0 03 – BASE AND PEDESTAL UNIT PARTSadmin2025-04-26T12:00:05+00:005KSM193ADEBM0 03 – BASE AND PEDESTAL UNIT PARTS ProductsPositionProduct1USE & CARE GUIDE2W11188450 Whirlpool Spring3W11305076 Whirlpool Mixer Beater4BOWL, 5 QT.5SCREW6WPW10191926 Whirlpool Cap Screw7WP9709707 Whirlpool Foot8WHIP, WIRE9W11305078 Whirlpool Dough Hook10W11246352 Whirlpool Latch Mechanism11W11416057 Whirlpool Latch Lever12WP110679 Whirlpool Screw13WP116241 Whirlpool Washer14W11218705 Whirlpool Washer Assembly15W10802060 Whirlpool Screw16W11232016 Whirlpool Latch Link17W11676543 Whirlpool Latch Lever18WP16910 Whirlpool Dowel Pin19CABINET (NOT A SERVICEABLE PART)20WP3184264 Whirlpool Headlock Assembly
