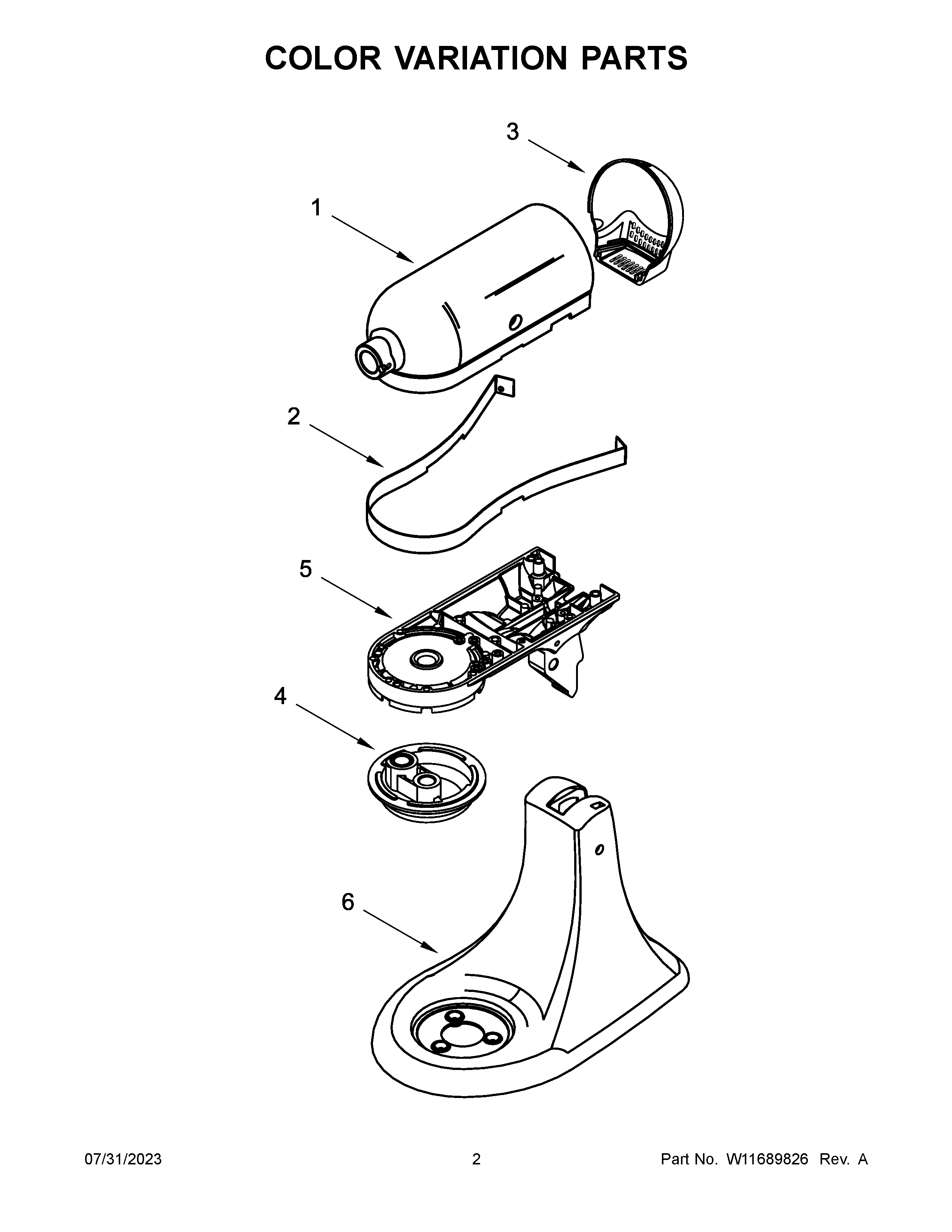

5KSM193ADEMI5 02 – COLOR VARIATION PARTS

5KSM193ADEMI5 02 – COLOR VARIATION PARTS

Written by

in

5KSM193ADEMI5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1TMOTOR HOUSING (WHITE)
1OMOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE)
1MMOTOR HOUSING (MATTE DRIED ROSE)
1HMOTOR HOUSING (EMPIRE RED)
1JW11605712 Whirlpool Housing
1GMOTOR HOUSING (CONTOUR SILVER)
1DMOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE)
1CMOTOR HOUSING (BLACK MATTE)
1IMOTOR HOUSING (HONEY)
1KMOTOR HOUSING (INK BLUE)
1NMOTOR HOUSING (MEDALLION SILVER)
1LMOTOR HOUSING (MAJESTIC YELLOW)
1AW11605627 Whirlpool Housing
1BMOTOR HOUSING (BEETROOT)
1RMOTOR HOUSING (PEBBLED PALM)
1MOTOR HOUSING (AGAVE)
1SMOTOR HOUSING (PISTACHIO)
1PMOTOR HOUSING (MINERAL WATER BLUE)
1FMOTOR HOUSING (CAST IRON/IMPERIAL BLACK)
1QMOTOR HOUSING (ONYX BLACK)
1EMOTOR HOUSING (CANDY APPLE RED)
2W11562449 Whirlpool Band Trim
3BW11548796 Whirlpool Cover
3NWPW10435298 Whirlpool Cover
3F9704805 Whirlpool Cover Assembly
3IWPL W11485686
3KWPL W11113833
3PEND COVER (MINERAL WATER BLUE)
3EWPW10239110 Whirlpool Cover
3JEND COVER (IMPERIAL GRAY)
3S9706841 Whirlpool Cover
3TEND COVER-White
3QEND COVER (ONYX BLACK)
3END COVER (AGAVE)
3GW10350456 Whirlpool Cover Assembly
3DE
3REND COVER (PEBBLED PALM)
3CWPL W10885707
3OWPL W11113835
3LEND COVER (MAJESTIC YELLOW)
3HEND COVER (EMPIRE RED)
3AEnd Cover (Almond Creme)
3MEND COVER (MATTE DRIED ROSE)
4PLANETARY (AGAVE)
4HPLANETARY (EMPIRE RED)
4IWPL W11485717
4QPLANETARY-Onyx Black
4CW11170306 Whirlpool Planetary Assembly
4F9704797 Whirlpool Planetary Mixing
4APlanetary (Almond Creme)
4TPLANETARY-White
4BPLANETARY (BEETROOT)
4EW10239112 Whirlpool Planetary Mixer
4SPLANETARY (PISTACHIO)
4LPLANETARY (MAJESTIC YELLOW)
4OW11113886 Whirlpool Planetary Mixer
4DWPL W11209470
4MWPL W11209496
4NWPW10444039 Whirlpool Planetary Mixer
4PPLANETARY (MINERAL WATER BLUE)
4RPLANETARY (PEBBLED PALM)
4GW10350465 Whirlpool Planetary Mixer
4JPLANETARY (IMPERIAL GRAY)
4KWPL W11113890
5KWPL W11113862
5RLOWER GEARCASE (PEBBLED PALM)
5IWPL W11485689
5WPL W11579600
5NWPW10444068 Whirlpool Gearcase Assembly
5EW10245786 Whirlpool Gearcase
5PWPL W11444671
5GLOWER GEARCASE (CONTOUR SILVER)
5HWPL 24035091
5ALOWER GEARCASE (ALMOND CREME)
5TLOWER GEARCASE-White
5LWPL 24035093
5MWPL W11209493
5DW11209465 Whirlpool Gearcase
5CWPL W10885699
5OWPL W11113859
5QLOWER GEARCASE (ONYX BLACK)
5FLOWER GEARCASE (IMPERIAL BLACK)
5JWPL 24035086
5S9706832 Whirlpool Gearcase
5BLOWER GEARCASE (BEETROOT)
6KWPL W11269286
6NWPW10444067 Whirlpool Pedestal
6SWPL 9709637
6GPEDESTAL (CONTOUR SILVER)
6QPEDESTAL & FOOT (ONYX BLACK)
6BWPL W11548805
6TWP3184273 Whirlpool Pedestal
6IWPL W11485777
6EWPL W10245720
6HWPL 3184280
6MWPL W11209491
6LWPL 3184281
6JPEDESTAL WITH FEET AND HEADLOCK (IMPERIAL GREY)
6PPEDESTAL, W/FEET AND HEADLOCK (MINERAL WATER BLUE)
6OWPL W11259895
6CWPL W11185575
6DWPL W11209463
6AWPL 9705577
6RPEDESTAL (PEBBLED PALM)
6FWPL W10648651
6WPL W11579606
