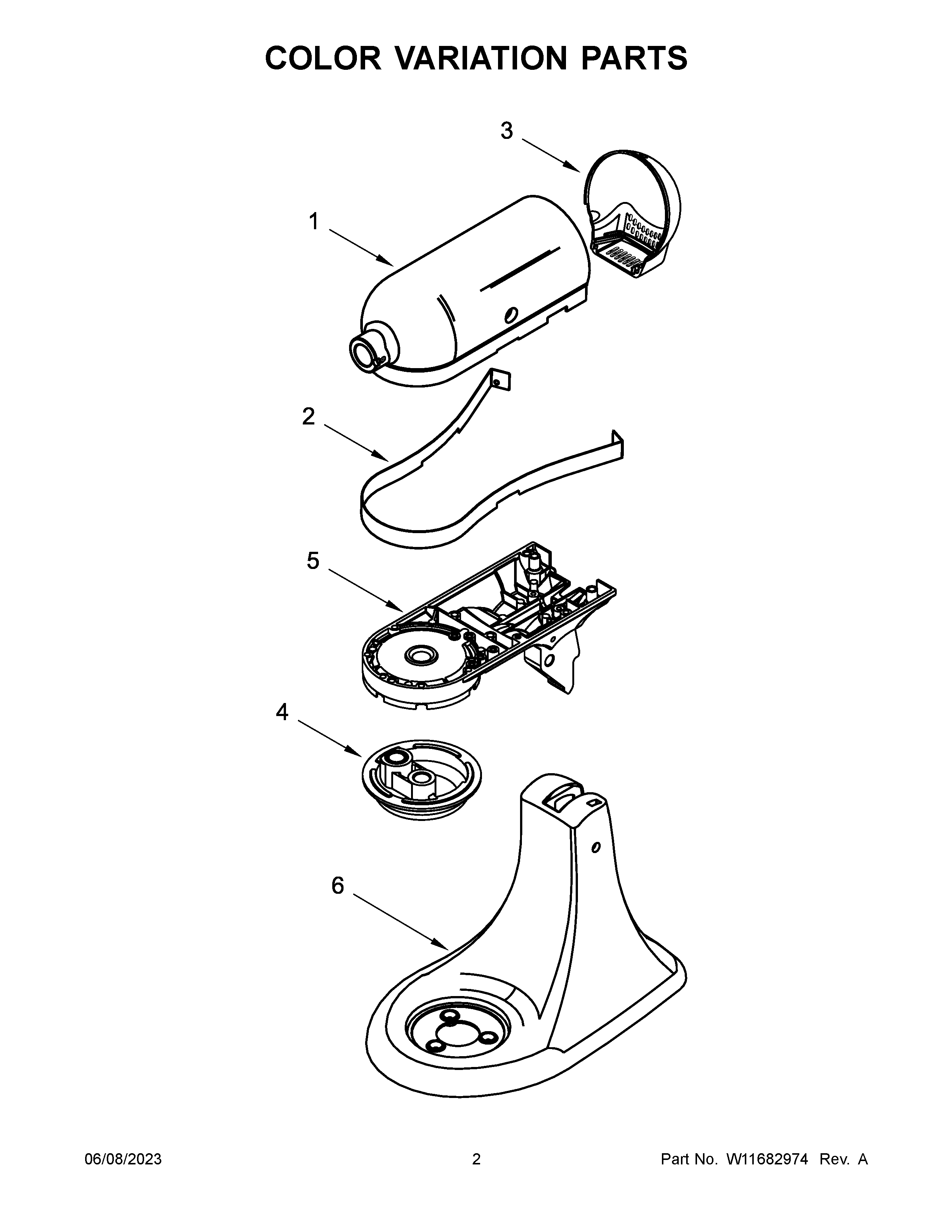

5KSM193ADSGR0 02 – COLOR VARIATION PARTS

5KSM193ADSGR0 02 – COLOR VARIATION PARTS

Written by

in

5KSM193ADSGR0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1HMOTOR HOUSING (EMPIRE RED)
1T9704752 Whirlpool Housing
1PMOTOR HOUSING (MINERAL WATER BLUE)
1GW10350463 Whirlpool Housing
1DGEARCASE MOTOR HOUSING-NICKEL (INTERNATIONAL)
1BMOTOR HOUSING (BLACK MATTE)
1IMOTOR HOUSING (HONEY)
1KMOTOR HOUSING (INK BLUE)
1EW10239115 Whirlpool Housing
1NWPW10444230 Whirlpool Housing
1OMOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE)
1CMOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE)
1MMOTOR HOUSING (MATTE DRIED ROSE)
1LMOTOR HOUSING (MAJESTIC YELLOW)
1MOTOR HOUSING (AGAVE)
1JMOTOR HOUSING (IMPERIAL GRAY)
1QMotor Housing (Onyx Black)
1AMotor Housing (Almond Creme)
1UMotor Housing (White)
1SMOTOR HOUSING (PISTACHIO)
1F9704790 Whirlpool Housing
1RW11346223 Whirlpool Housing
2W11562449 Whirlpool Band Trim
3GW10350456 Whirlpool Cover Assembly
3F9704805 Whirlpool Cover Assembly
3JEND COVER (IMPERIAL GRAY)
3EWPW10239110 Whirlpool Cover
3DW10291364 Whirlpool Cover Assembly
3PEND COVER (MINERAL WATER BLUE)
3S9706841 Whirlpool Cover
3OWPL W11113835
3BWPL W10885707
3END COVER (AGAVE)
3UEND COVER-White
3REND COVER (PEBBLED PALM)
3IWPL W11485686
3HEND COVER (EMPIRE RED)
3LEND COVER (MAJESTIC YELLOW)
3QEND COVER (ONYX BLACK)
3MEND COVER (MATTE DRIED ROSE)
3AEnd Cover (Almond Creme)
3NWPW10435298 Whirlpool Cover
3TWPL W10291365
3CE
3KWPL W11113833
4SPLANETARY (PISTACHIO)
4RPLANETARY (PEBBLED PALM)
4PLANETARY (AGAVE)
4EW10239112 Whirlpool Planetary Mixer
4PPLANETARY (MINERAL WATER BLUE)
4KWPL W11113890
4T9704755 Whirlpool Planetary Assembly
4IWPL W11485717
4NWPW10444039 Whirlpool Planetary Mixer
4DPLANETARY-NICKEL
4LPLANETARY (MAJESTIC YELLOW)
4GW10350465 Whirlpool Planetary Mixer
4OW11113886 Whirlpool Planetary Mixer
4QPLANETARY-Onyx Black
4APlanetary (Almond Creme)
4BW11170306 Whirlpool Planetary Assembly
4UPLANETARY-White
4CWPL W11209470
4MWPL W11209496
4F9704797 Whirlpool Planetary Mixing
4JPLANETARY (IMPERIAL GRAY)
4HPLANETARY (EMPIRE RED)
5GLOWER GEARCASE (CONTOUR SILVER)
5DWP9706459 Whirlpool Gearcase
5EW10245786 Whirlpool Gearcase
5KWPL W11113862
5IWPL W11485689
5RLOWER GEARCASE (PEBBLED PALM)
5ALOWER GEARCASE (ALMOND CREME)
5ULOWER GEARCASE-White
5WPL W11579600
5QLOWER GEARCASE (ONYX BLACK)
5OWPL W11113859
5PWPL W11444671
5BWPL W10885699
5LWPL 24035093
5S9706832 Whirlpool Gearcase
5MWPL W11209493
5JWPL 24035086
5CW11209465 Whirlpool Gearcase
5FLOWER GEARCASE (IMPERIAL BLACK)
5NWPW10444068 Whirlpool Gearcase Assembly
5T9704749 Whirlpool Gearcase
5HWPL 24035091
6EWPL W10245720
6IWPL W11485777
6KWPL W11269286
6TWPL W105
6NWPW10444067 Whirlpool Pedestal
6SWPL 9709637
6FWPL W10648651
6MWPL W11209491
6RPEDESTAL (PEBBLED PALM)
6CWPL W11209463
6GPEDESTAL (CONTOUR SILVER)
6LWPL 3184281
6DWPL 9706456
6JPEDESTAL WITH FEET AND HEADLOCK (IMPERIAL GREY)
6OWPL W11259895
6PPEDESTAL, W/FEET AND HEADLOCK (MINERAL WATER BLUE)
6QPEDESTAL & FOOT (ONYX BLACK)
6BWPL W11185575
6HWPL 3184280
6AWPL 9705577
6WPL W11579606
